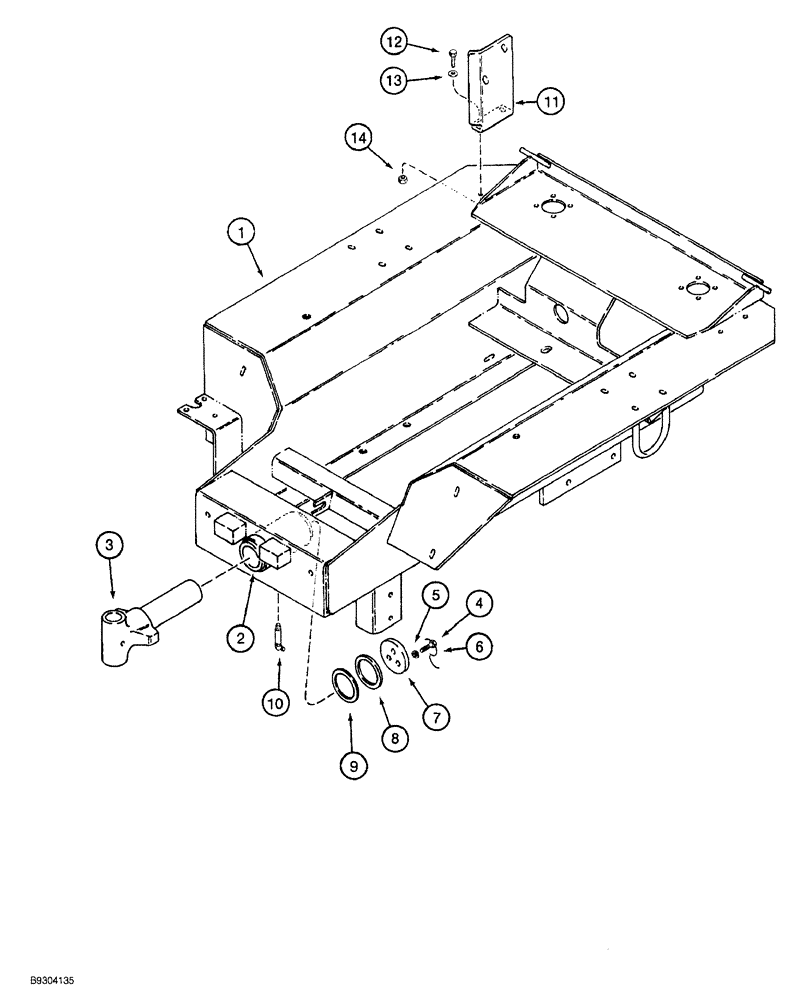

Запчасти Case MAXI-SNEAKER (09-002) - FRONT FRAME (09) - CHASSIS/ATTACHMENTS

1

111082A1

CHASSIS

FRAME front, Includes: Ref. 2

1шт.

2

H257675

BUSHING,54.3mm ID x 69.85mm OD x 25.4mm L

pivot shaft

2шт.

3

127310A1

SHAFT

pivot, Replaces: H359984

1шт.

4

H95877

BOLT

drilled head, special

3шт.

5

492-11038

LOCK WASHER,3/8"

3шт.

6

391-636

ELECTRICAL WIRE

WIRE steel, 16 gauge x 50 inch long, cut to 12 inch length for this application, Replaces: 391-620

1шт.

7

H182543

CYLINDER END CAP

pivot shaft

1шт.

8

H191155

SHIM,.062" Thk

Pivot shaft (1.57 mm)

2шт.

9

H191148

SHIM,.031" Thk

Pivot shaft (0.79 mm)

2шт.

10

H672990

FITTING

grease, 45 degree, special, extra long

1шт.

11

H436095

SUPPORT

hood

1шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

13

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

2шт.

14

232-4115

LOCK NUT,5/16"-18, GC

2шт.
