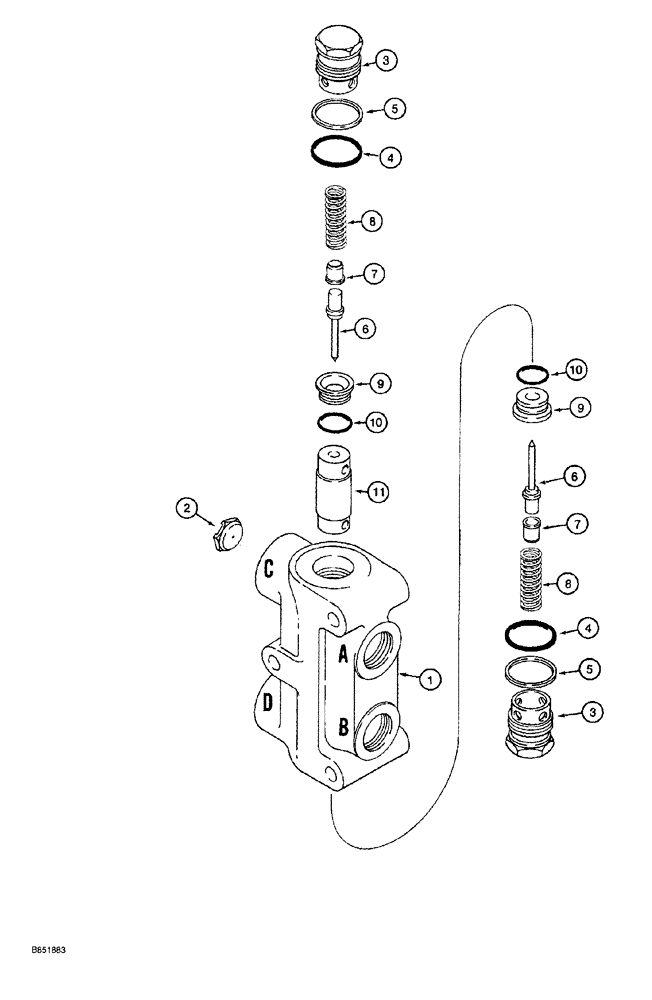

Запчасти Case MAXI-SNEAKER (08-050) - LOCKOUT VALVE ASSEMBLY, H672547, PLOW LIFT, P75 PLOW (08) - HYDRAULICS

H672547

VALVE

ASSEMBLY lockout, plow lift, Includes: Ref. 1 - 11

1шт.

1

H267948

VALVE BODY

lockout

1шт.

2

H270603

ORIFICE

PLATE, 0.055 inch

1шт.

A43525

PLUG

ASSEMBLY lockout valve, Includes: Ref. 3 - 5

2шт.

3

NSS

NOT SOLD SEPARAT

PLUG lockout valve

1шт.

4

238-6116

O-RING,0.103" Thk x 0.737" ID, -116, Cl 6, 90 Duro

1шт.

5

S302062

BACK-UP RING

plug O-ring, Replaces: A35698

1шт.

6

F88777

PLUNGER

POPPET

2шт.

7

N13488

EYE

SEAT spring

2шт.

8

85069C1

VALVE SPRING

poppet

2шт.

N13369

SEAT ASSY.

poppet, Includes: Ref. 9 and 10

2шт.

9

NSS

NOT SOLD SEPARAT

SEAT poppet

1шт.

10

238-6016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 6, 90 Duro

Seat

1шт.

11

N13489

PLUNGER

PISTON lockout valve

1шт.
