(02-002) - RADIATOR, FAN AND MOUNTING

Запчасти Case MAXI-SNEAKER (02-002) - RADIATOR, FAN AND MOUNTING (02) - ENGINE

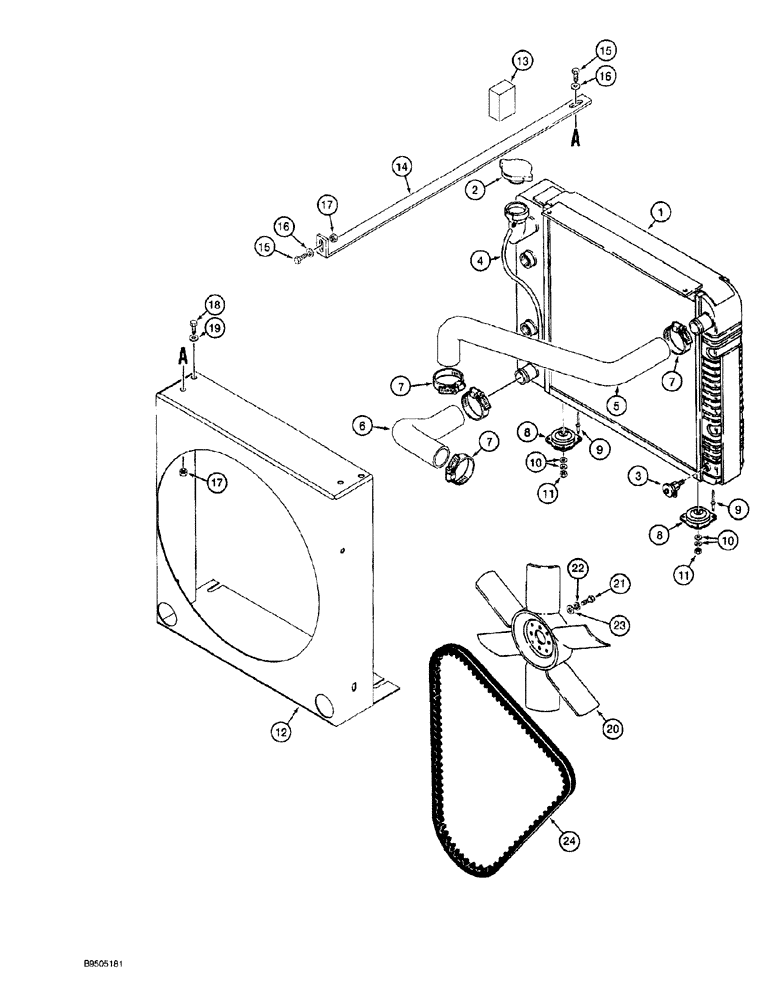

Схема запчастей Case MAXI-SNEAKER - (02-002) - RADIATOR, FAN AND MOUNTING (02) - ENGINE
8
6
22
11
5
19
17
7
20
7
16
1
17
15
10
3
12
13
8
9
18
24
7
14
21
23
11
10
16
2
4
9
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

121909A1

RADIATOR ASSEMBLY, engine cooling, production only, without integral oil cooler, service with H434602 radiator assembly, Includes: Ref. 1 - 4, Serial Range: -JAF0226393

1шт.

H434602

RADIATOR

ASSEMBLY engine cooling, service replacement for 121909A1 radiator, with integral oil cooler, Includes: Ref. 1 - 4

1шт.

282326A1

RADIATOR

ASSEMBLY engine cooling, Includes: Ref. 1 - 4, Start Serial: JAF0226393

1шт.

1

NSS

NOT SOLD SEPARAT

RADIATOR engine cooling, order H434602 or 282326A1 radiator assembly

1шт.

2

80889R91

COVER

CAP radiator

1шт.

3

A27862

COCK, DRAIN

VALVE

1шт.

4

REF

INSTRUCTION

HOSE overflow, 5/16 (8 mm) ID x 19 inch (483 mm) long, cut from L126767 bulk hose, see below

1шт.

4a

282327A1

BAFFLE

radiator, foam, used with 282326A1 radiator only, not shown

1шт.

5

110910A1

RADIATOR HOSE,32.00 mm ID x 311.00 mm

Upper

1шт.

6

110911A1

RADIATOR HOSE,32.00 mm ID x 174.00 mm

Lower; Attaches to 282101A1 Tube, 200686A1 Clamp, and 86990280 Hose From Water Pump

1шт.

7

214-1420

HOSE CLAMP,#20, 0.81" - 1.75", Type F Worm

Adj.

4шт.

8

H433370

ANCHOR

MOUNT radiator

2шт.

9

151-539

RIVET,Pop, 3/16" x .450"

break mandrel, 3/16 x 7/16 inch

8шт.

10

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

11

232-4116

NUT,3/8"-16, GC

2шт.

12

110513A1

PROTECTOR

SHROUD radiator

1шт.

13

113841A1

BAFFLE

radiator, top

1шт.

14

135338A1

ANGLE

STRAP support, radiator

1шт.

15

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

16

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

2шт.

17

232-4115

LOCK NUT,5/16"-18, GC

2шт.

18

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

2шт.

19

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

2шт.

20

111472A1

FAN

engine cooling

1шт.

21

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

4шт.

22

892-11006

LOCK WASHER,M6

4шт.

23

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch

4шт.

24

125570A1

V-BELT

Fan, Included with 111088A1 and 111088A2 Engine Assemblies

1шт.

L126767

HOSE,7.9mm ID x 2336mm L, SAE 30R6

1шт.
