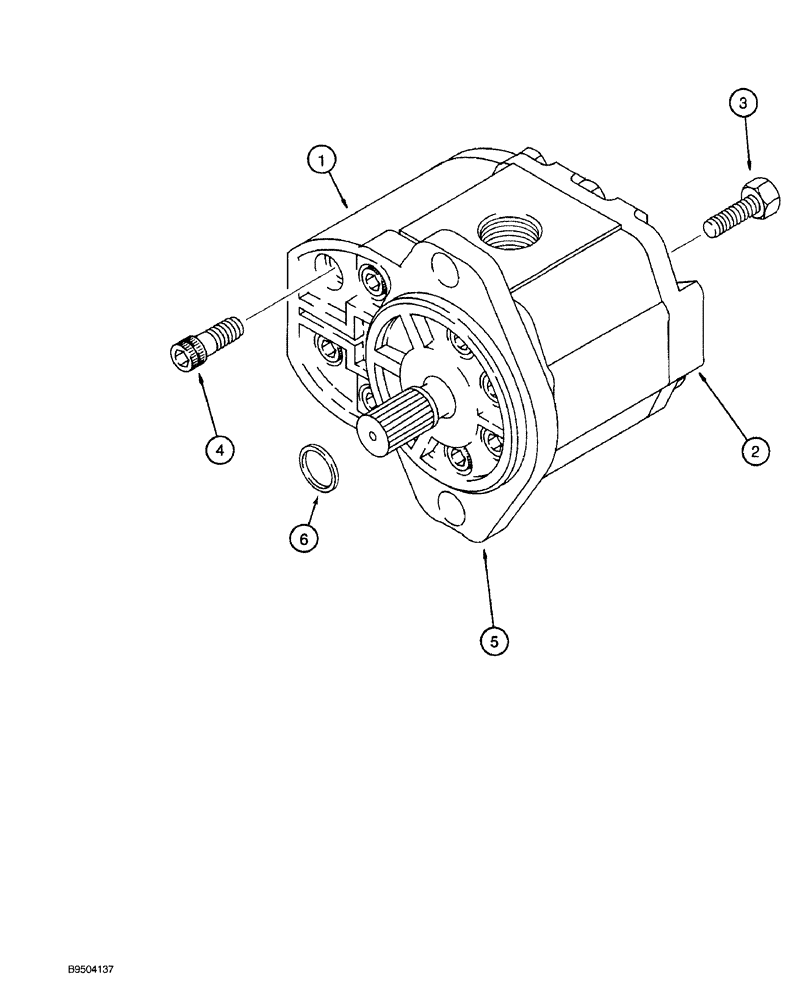

Запчасти Case MAXI-SNEAKER (08-048) - PLOW MOTOR ASSEMBLY, 142714A1, P75 PLOW (08) - HYDRAULICS

142714A1

MOTOR

ASSEMBLY plow, see figure 09-041C for motor mounting, Includes: Ref. 1 - 6 and kit

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING plow motor

1шт.

2

NSS

NOT SOLD SEPARAT

COVER plow motor

1шт.

3

614-10030

BOLT,Hex, M10 x 1.5 x 30mm, Cl 8.8, Full Thd

8шт.

4

864-10030

HEX SOC SCREW,M10 x 30mm, Cl 8.8

8шт.

5

NSS

NOT SOLD SEPARAT

FLANGE mounting, plow motor

1шт.

6

221174A1

SEAL

shaft, 25 x 42 x 6 mm

1шт.

141151A1

SEAL KIT

KIT replacement, includes three (3) O-rings, one (1) retaining ring, one (1) sealing ring, and one (1) 221174A1 shaft seal

1шт.
