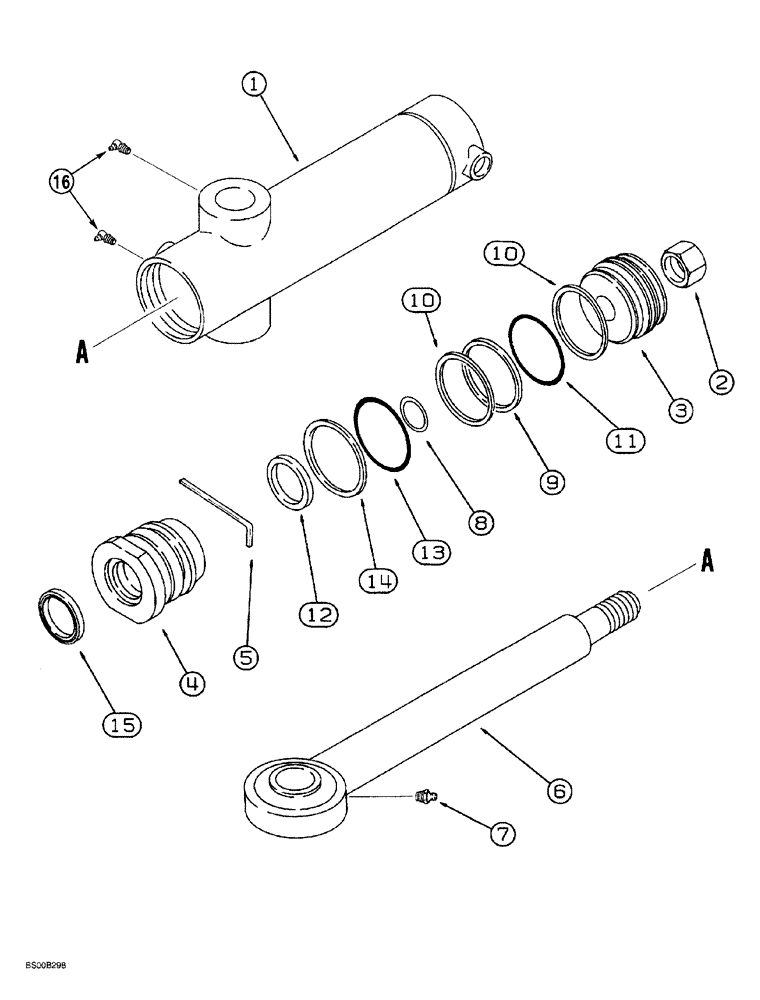

Запчасти Case MAXI-SNEAKER (08-046) - PLOW SWING CYLINDER ASSEMBLY, 230679A1, P75 PLOW (08) - HYDRAULICS

230679A1

CYLINDER ASSY.

plow swing, 51 (2) ID x 143 mm (5-5/8 inch) stroke, Includes: Ref. 1 - 16

2шт.

1

244121A1

CASE

TUBE cylinder

1шт.

2

231-41310

LOCK NUT,5/8"-11, GB

hex, self locking, 5/8 inch NC

1шт.

3

110501A1

JACK PISTON

cylinder

1шт.

4

108641C1

GLAND

cylinder

1шт.

5

461180R1

RETAINER

RING

1шт.

6

140227A1

ROD

piston

1шт.

7

86636814

LUBE NIPPLE,1/4"-28 x .52" lg

1шт.

110510A1

SEAL KIT

seal replacement, Includes: Ref. 8 - 15

1шт.

8

NSS

NOT SOLD SEPARAT

SEAL rod, small

1шт.

9

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

10

NSS

NOT SOLD SEPARAT

RING wear, piston

2шт.

11

NSS

NOT SOLD SEPARAT

O-RING piston seal

1шт.

12

NSS

NOT SOLD SEPARAT

SEAL U-cup, gland

1шт.

13

238-6326

O-RING,0.21" Thk x 1.6" ID, -326, Cl 6, 90 Duro

1шт.

14

381293R1

BACK-UP RING,2.015" ID x 0.047" Width

RING backup, gland O-ring

1шт.

15

532773R1

WIPER SEAL

piston rod

1шт.

16

219-57

LUBE NIPPLE,90 Degree Elbow, 1/4" - 28 NPTF

grease, 90 degree, 1/4-28 taper x 3/4 inch

2шт.
