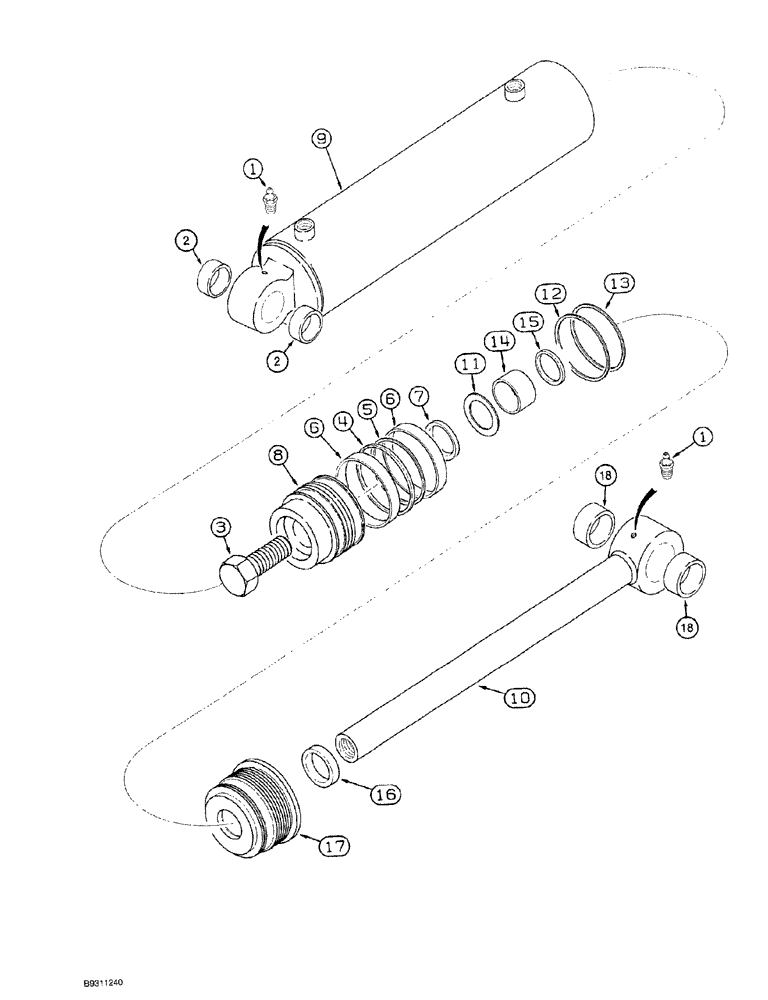

Запчасти Case MAXI-SNEAKER (08-044) - PLOW LIFT CYLINDER ASSEMBLY, 120351A1, P75 PLOW (08) - HYDRAULICS

120351A1

CYLINDER

ASSEMBLY plow lift, 89 (3-1/2) ID x 290 mm (11-13/32 inch) stroke, Includes: Ref. 1 - 18

1шт.

1

219-8

LUBE NIPPLE,1/4" - 28 NPTF

2шт.

2

107115A1

BUSHING

cylinder rod, Replaces: H436772

2шт.

3

137679A1

BOLT

hex, special

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL piston

1шт.

Part of Seal Replacement Kit P/N 137688A1

1шт.

5

NSS

NOT SOLD SEPARAT

O-RING piston

1шт.

Part of Seal Replacement Kit P/N 137688A1

1шт.

6

NSS

NOT SOLD SEPARAT

RING wear, piston

2шт.

Part of Seal Replacement Kit P/N 137688A1

1шт.

7

NSS

NOT SOLD SEPARAT

O-RING piston rod

1шт.

Part of Seal Replacement Kit P/N 137688A1

1шт.

8

137682A1

PISTON

cylinder

1шт.

9

137684A1

TUBE

cylinder

1шт.

10

137685A1

ROD

piston

1шт.

11

102-21175

SNAP RING,#175, 1.876", Int, Spiral

RING retaining, spiral, internal, No. 175

1шт.

12

NSS

NOT SOLD SEPARAT

O-RING gland

1шт.

Part of Seal Replacement Kit P/N 137688A1

1шт.

13

NSS

NOT SOLD SEPARAT

RING backup, gland

1шт.

Part of Seal Replacement Kit P/N 137688A1

1шт.

14

NSS

NOT SOLD SEPARAT

RING wear, gland

1шт.

Part of Seal Replacement Kit P/N 137688A1

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL U-cup

1шт.

Part of Seal Replacement Kit P/N 137688A1

1шт.

16

NSS

NOT SOLD SEPARAT

WIPER piston rod

1шт.

Part of Seal Replacement Kit P/N 137688A1

1шт.

17

137686A1

GLAND

cylinder

1шт.

18

137687A1

BUSHING

rod eye

2шт.

137688A1

SEAL KIT

KIT replacement, cylinder, Includes: Ref., 4, 5, 6, 7, 12, 13, 14, 15 and 16

1шт.
