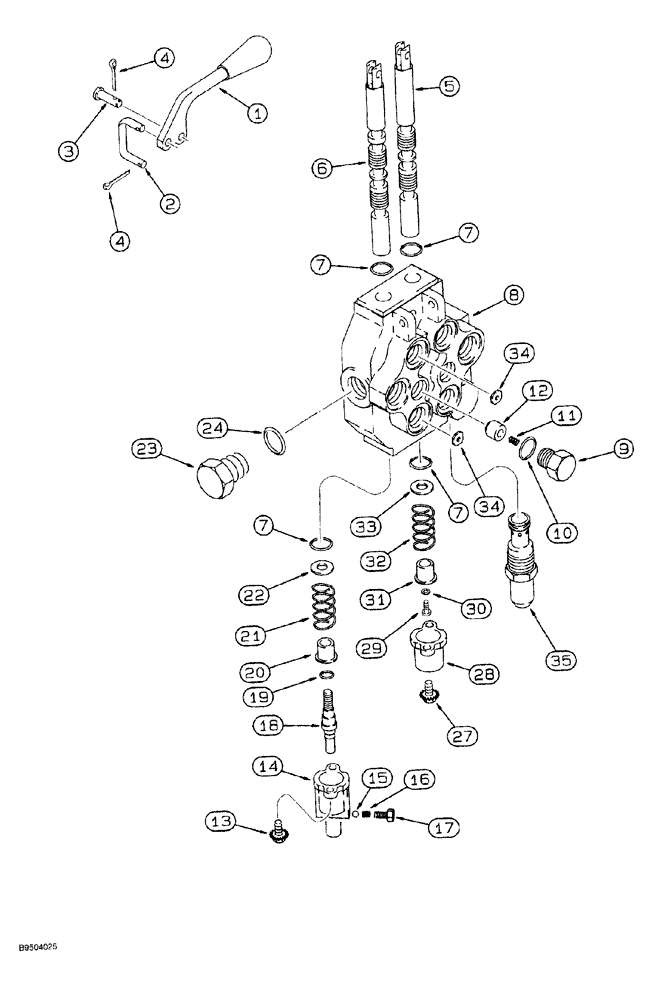

Запчасти Case MAXI-SNEAKER (08-042) - PLOW LIFT, SWING CONTROL VALVE ASSEMBLY, 220409A1, P75 PLOW (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
220409A1
VALVE
ASSEMBLY control, plow lift to swing, Includes: Ref. 1 - 35
1шт.
1
138306A1
HANDLE
control, plow lift and swing
2шт.
2
H438042
ARM
LINK C type, control, Serial Range: handle-spool
2шт.
3
427-4077
CLEVIS PIN,1/4" x .770"
Hardened
1шт.
4
432-412
COTTER PIN,1/16" x 3/4"
6шт.
5
NSS
NOT SOLD SEPARAT
SPOOL control valve, plow, lift section
1шт.
6
NSS
NOT SOLD SEPARAT
SPOOL control valve, plow, swing section
1шт.
7
H438030
O-RING
spool
4шт.
8
NSS
NOT SOLD SEPARAT
BODY control valve
1шт.
142999A1
KIT
load check, Includes: Ref. 9 - 12
1шт.
9
NSS
NOT SOLD SEPARAT
PLUG load check, Includes: Ref. 10
1шт.
10
NSS
NOT SOLD SEPARAT
O-RING plug
1шт.
11
NSS
NOT SOLD SEPARAT
SPRING load check
1шт.
12
NSS
NOT SOLD SEPARAT
POPPET load check
1шт.
138313A1
DETENT
KIT float, Includes: Ref. 13 - 22
1шт.
13
NSS
NOT SOLD SEPARAT
SCREW, includes lock washer, detent float
2шт.
14
N9540
COVER
HOUSING detent
1шт.
15
NSS
NOT SOLD SEPARAT
BALL detent cap
2шт.
16
N9506
COIL SPRING
detent
2шт.
17
D86560
SCREW
detent
2шт.
18
NSS
NOT SOLD SEPARAT
SPOOL detent
1шт.
19
NSS
NOT SOLD SEPARAT
O-RING detent spool
1шт.
20
D86559
SEAT
spring, lift spool
1шт.
21
D86558
SPRING
return
1шт.
22
D86557
WASHER
lift spool
1шт.
23
132547A1
PLUG
hex, power beyond port, Includes: Ref. 24
1шт.
24
237-6012
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
1шт.
H674816
KIT
centering spring, Includes: Ref. 27 - 33
1шт.
27
NSS
NOT SOLD SEPARAT
SCREW, includes lock washer
2шт.
28
N9528
CAP
Bucket spool end
1шт.
29
62-7108
HEX SOC SCREW,Btn Hd, #10 - 32 x 1/2"
1шт.
30
495-11034
WASHER,5/16", SAE
(flat, 11/32 x 11/16 x 1/16")
1шт.
31
N9529
SEAT
spring, spool
1шт.
32
N9539
TENSION SPRING
centering, spool
1шт.
33
NSS
NOT SOLD SEPARAT
WASHER, spring seat, spool
1шт.
34
141141A1
LARGE PLATE
PLATE, LARGE orifice, Replaces: 138310A1
2шт.
35
138303A1
VALVE
relief
1шт.
Выбрано товаров: 37
