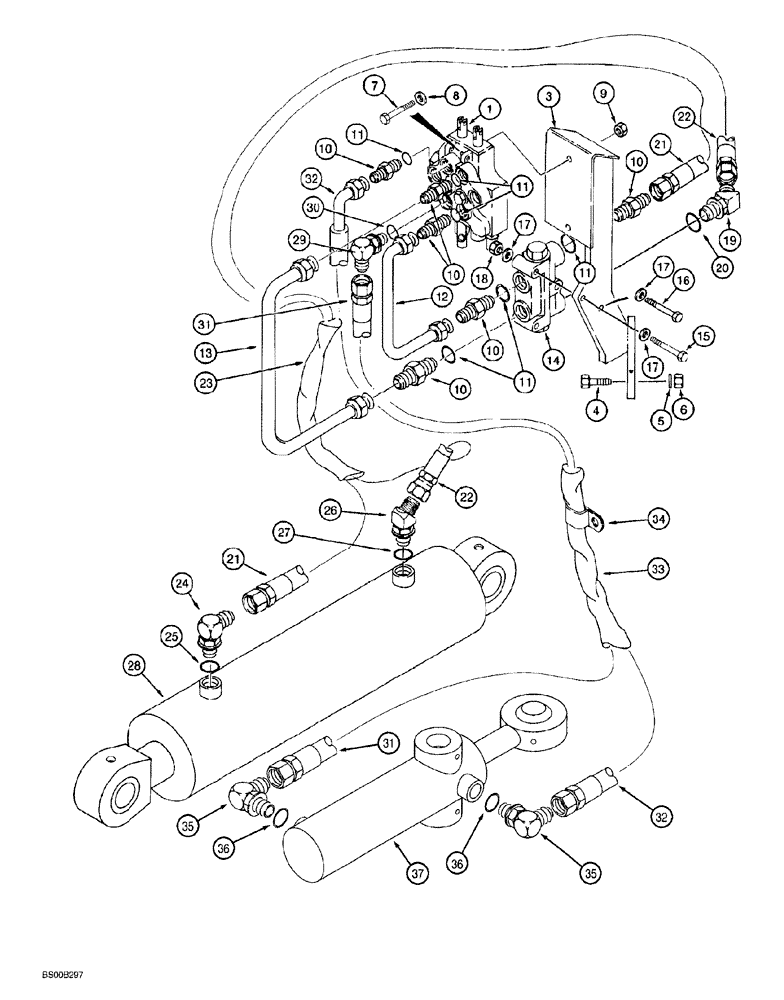

Запчасти Case MAXI-SNEAKER (08-038) - PLOW HYDRAULIC CIRCUIT, PLOW LIFT AND SWING, P75 PLOW (08) - HYDRAULICS

1

220409A1

VALVE

ASSEMBLY control, plow lift and swing, parts list Figure 08-042

1шт.

2

127447A1

DECAL

plow control pattern, lift and swing, not shown, see Figure 09-064 for decals

1шт.

3

177568A1

SUPPORT

mounting, plow control valve

1шт.

4

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.

5

H274894

WASHER

flat, special

2шт.

6

232-4118

NUT,1/2"-13, GC

2шт.

7

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

2шт.

8

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

2шт.

9

232-4115

LOCK NUT,5/16"-18, GC

2шт.

10

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER straight, 9/16-18 flare x 3/4-16 inch O-ring boss., Includes: Ref. 11

6шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

127537A1

TUBE,9.53 mm OD, 157.7, 97.7 mm Length

to lockout valve A port

1шт.

13

127538A1

TUBE,9.53 mm OD, 282.7, 117.6 mm Length

to lockout valve B port

1шт.

14

H672547

VALVE

ASSEMBLY lockout, parts list Figure 08-050

1шт.

15

413-544

BOLT,Hex, 5/16" - 18 x 2-3/4", Gr 5

1шт.

16

413-548

BOLT,Hex, 5/16" - 18 x 3", Gr 5

1шт.

17

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

4шт.

18

232-4115

LOCK NUT,5/16"-18, GC

2шт.

19

218-5148

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

45 degree, 9/16-18 flare x 3/4-16 inch adj. O-ring boss, Includes: Ref. 20

1шт.

20

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

21

231082A1

HOSE

lockout valve C port to plow lift cylinder, rod end, 685 mm (27 inch) long

1шт.

22

231083A1

HOSE

lockout valve D port to plow lift cylinder, closed end, 450 mm (17-3/4 inch) long

1шт.

23

183444A1

SLEEVE

lift cylinder hoses, nylon, 32 (1-1/4) ID x 250 mm (9-7/8 inch) long

1шт.

24

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss ., Includes: Ref. 25

1шт.

26

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 27

1шт.

28

120351A1

CYLINDER

ASSEMBLY plow lift. 89 (3-1/2) ID x 290 mm (11-13/32 inch) stroke, parts list Figure 08-044, see Figure 09-041A for mounting pins

1шт.

29

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 30

1шт.

30

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

31

231081A1

HOSE

plow control valve to plow swing cylinder, closed end, 510 mm (20 inch) long

1шт.

32

117279A1

HOSE

plow control valve to plow swing cylinder, rod end, 555 mm (21-7/8 inch) long

1шт.

33

183444A1

SLEEVE

nylon, swing cylinder hoses, 32 (1-1/4) ID x 250 mm (9-7/8 inch) long

1шт.

34

L71188

CLAMP,15.75mm ID, Coated, 13.46mm Bolt Hole, P Type

hose, P-type, 5/8 inch diameter

1шт.

35

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 36

2шт.

37

230679A1

CYLINDER ASSY.

plow swing, 51 (2) ID x 143 mm (5-5/8 inch) stroke, parts list Figure 08-046, see Figure 09-041A for mounting pins

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

27

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

36

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
