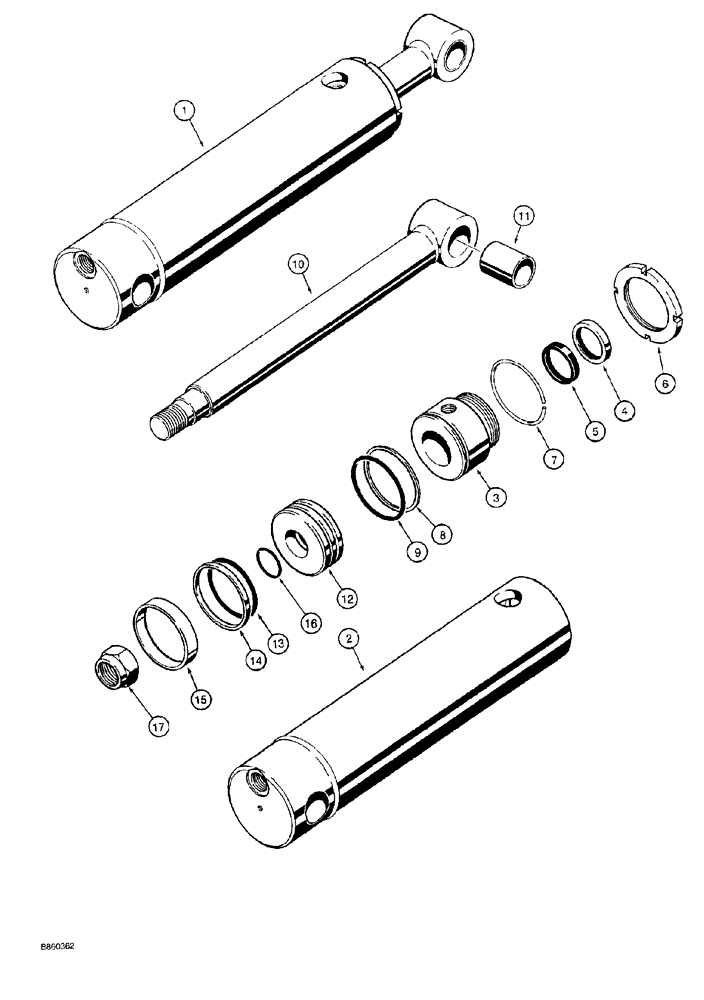

Запчасти Case MAXI-SNEAKER (08-034) - PLOW LIFT CYLINDER ASSEMBLY, P40 PLOW (08) - HYDRAULICS

1

H674455

CYLINDER ASSY.

plow lift, 76 (3) ID x 203 mm (8 inch) stroke, Includes: Ref. 2 - 17

1шт.

2

N13659

JACK BODY

TUBE cylinder

1шт.

3

H120360

BEARING

GLAND cylinder

1шт.

4

A41785

WIPER SEAL

piston rod

1шт.

Part of Seal Kit P/N N13662

1шт.

5

H220558

SEAL

rod

1шт.

Part of Seal Kit P/N N13662

1шт.

6

H745794

BEARING LOCK NUT

NUT gland locking

1шт.

7

H52761

RING

retaining, gland

1шт.

Part of Seal Kit P/N N13662

1шт.

8

H745760

WASHER

RING backup, outer

1шт.

Part of Seal Kit P/N N13662

1шт.

9

238-5232

O-RING,0.139" Thk x 2.734" ID, -232, Cl 5, 75 Duro

Gland, outer

1шт.

Part of Seal Kit P/N N13662

1шт.

10

N13660

STEM

ROD piston

1шт.

11

H220624

RING

BUSHING piston rod, rod eye

1шт.

12

N13661

PISTON

cylinder

1шт.

13

238-6231

O-RING,0.139" Thk x 2.609" ID, -231, Cl 6, 90 Duro

Piston seal, outer

1шт.

Part of Seal Kit P/N N13662

1шт.

14

H120188

RING

SEAL piston, outer

2шт.

Part of Seal Kit P/N N13662

1шт.

15

H252833

RING

wear, piston

1шт.

Part of Seal Kit P/N N13662

1шт.

16

238-6222

O-RING,0.139" Thk x 1.484" ID, -222, Cl 6, 90 Duro

Piston seal, inner

1шт.

Part of Seal Kit P/N N13662

1шт.

17

131-1141

LOCK NUT,1 1/8" - 12, Gr A

hex, self locking, 1-1/8 - 12 inch

1шт.

N13662

SEAL ASSY.

KIT, Includes: Ref. 4, 5, 7, 8, 9, 13, 14, 15 and 16

1шт.
