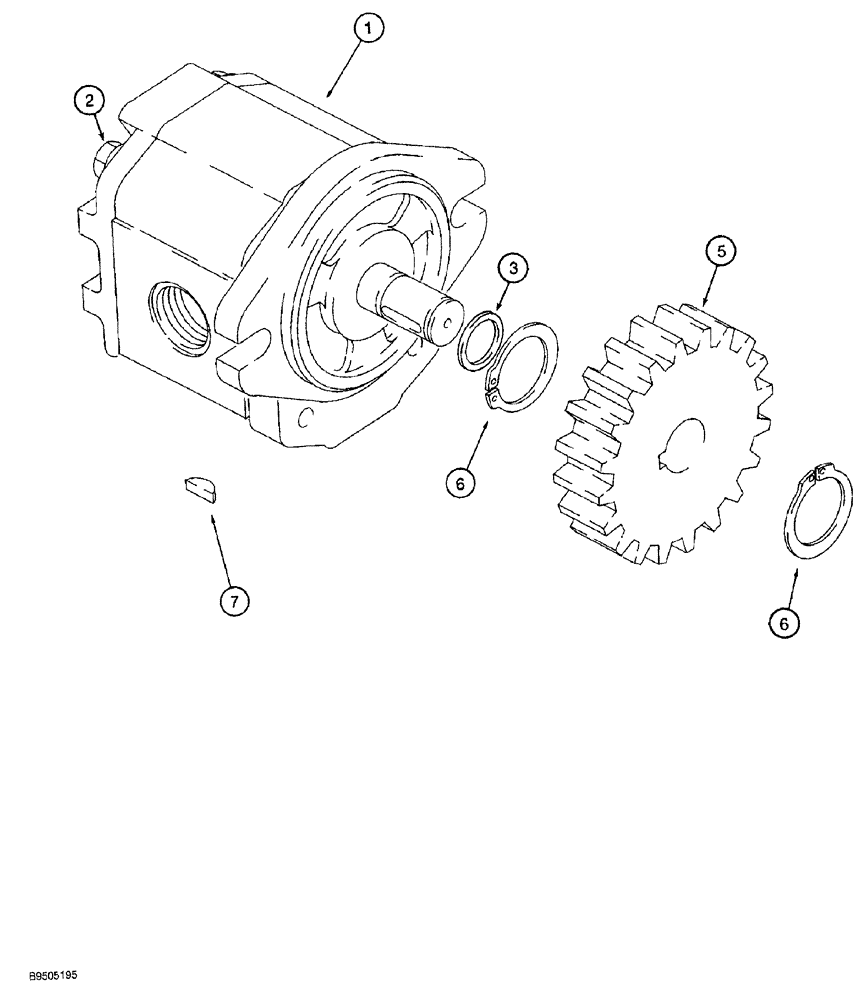

Запчасти Case MAXI-SNEAKER (08-032) - PLOW MOTOR ASSEMBLY, P40 PLOW (08) - HYDRAULICS

117652A1

MOTOR

AND GEAR ASSEMBLY plow, internal motor components are not serviced seperately (except for seal kit item 4), see Figure 08-028 for plow motor mounting and hydraulic circuit, Includes: Ref. 1 - 7

1шт.

1

109170A1

PUMP

MOTOR ASSEMBLY plow, Includes: Ref. 2 - 4

1шт.

2

131121A1

BOLT

hex, special

4шт.

3

131122A1

SEAL

1шт.

4

243673A1

SEAL KIT

seal replacement, not shown

1шт.

5

H113282

GEAR

drive, plow gearbox, see Figure 09-040 for plow gearbox mounting, see Figure 09-060 for plow gearbox

1шт.

6

100-1168

SNAP RING,#68, Ext

41/64 inch ID

2шт.

7

380530A1

KEY

drive shaft, 3/16 x 3/16 x 3/4 inch, component of 109170A1 motor assembly, item No. 1

1шт.
