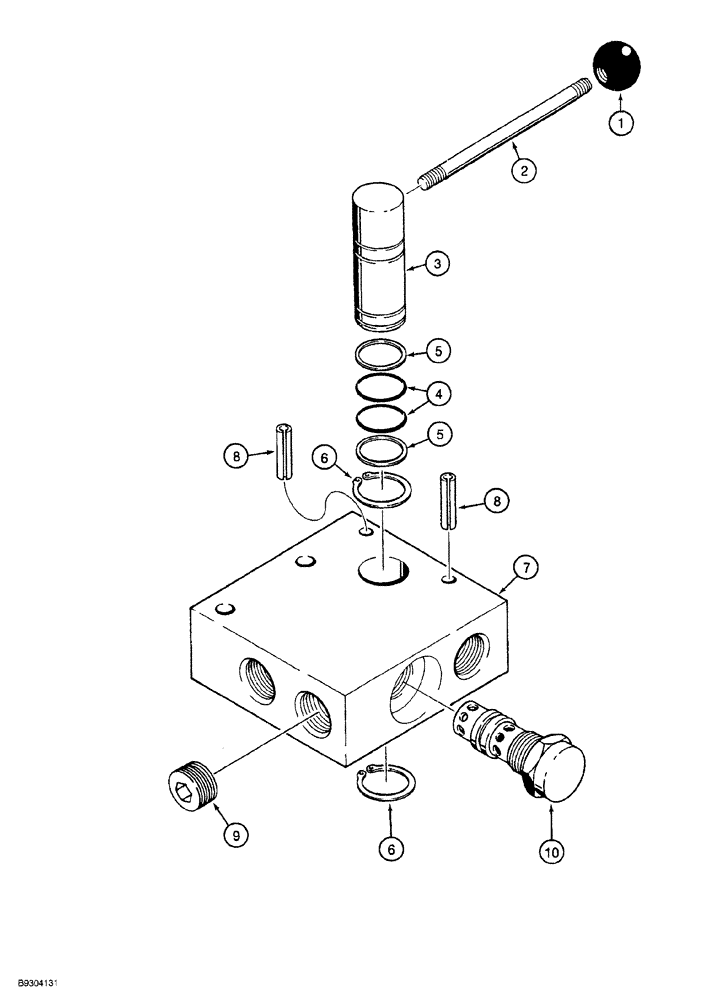

Запчасти Case MAXI-SNEAKER (08-030) - PLOW MOTOR CONTROL ASSEMBLY, P40 AND P75 PLOWS (08) - HYDRAULICS

H675047

VALVE

ASSEMBLY control, plow motor, Includes: Ref. 1 - 10

1шт.

1

113090A1

KNOB

handle

1шт.

2

113091A1

HANDLE

control

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

4

198990A1

O-RING,22.1mm ID x 1.6mm Width

spool

2шт.

5

198988A1

BACK-UP RING

spool O-ring

2шт.

6

100-1198

SNAP RING,#98, Ext

2шт.

7

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

8

138-2005

PIN,1/4" x 1", Coiled

2шт.

9

NSS

NOT SOLD SEPARAT

PLUG hex socket head

1шт.

10

113089A1

VALVE

relief, control valve

1шт.
