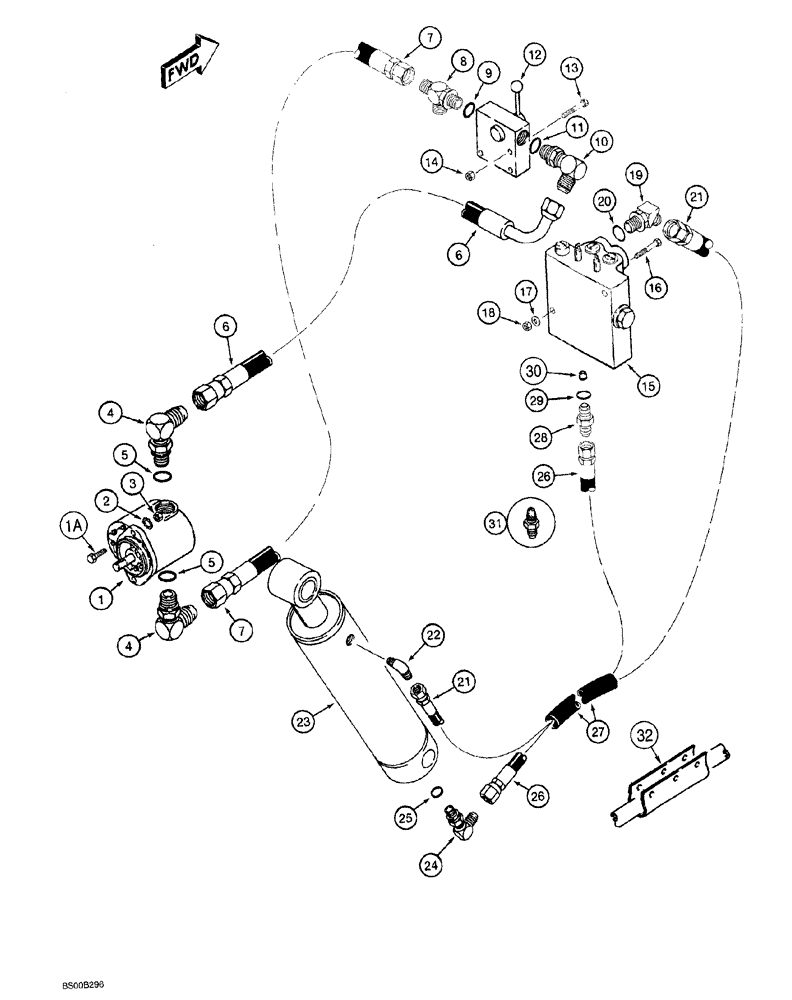

Запчасти Case MAXI-SNEAKER (08-028) - PLOW HYDRAULIC CIRCUIT, P40 PLOW (08) - HYDRAULICS

1

117652A1

MOTOR

AND GEAR ASSEMBLY plow, parts list Figure 08-032

1шт.

1a

413-728

BOLT,Hex, 7/16" - 14 x 1-3/4", Gr 5

2шт.

2

493-41046

LOCK WASHER,Ext Tooth, 7/16"

external tooth lock, 7/16 inch

2шт.

3

230-4217

LOCK NUT,7/16"-14, GA

hex, self locking, 7/16 inch NC

2шт.

4

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 5

2шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

113005A1

HOSE

plow motor to valve, 840 mm (33 inch) long

1шт.

7

111855A1

HOSE

plow motor to valve, 965 mm (38 inch) long

1шт.

8

218-5594

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 1 1/16"-12

TEE, 1-1/16-12 flare branch x flare x 7/8-14 inch adj. O-ring, Includes: Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ELBOW, 90 degree, 1-1/16-12 flare x 7/8-14 inch adj. O-ring boss, Includes: Ref. 11

1шт.

11

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

12

H675047

VALVE

ASSEMBLY control, plow, parts list Figure 08-030

1шт.

13

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

14

232-4115

LOCK NUT,5/16"-18, GC

2шт.

15

H674732

SLIDE VALVE

ASSEMBLY control, steering and attachment lift, parts list Figure 05-010

1шт.

16

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

17

H426767

WASHER

flat, 9/32 x 5/8 x 3/64 inch

2шт.

18

232-4114

LOCK NUT,1/4"-20, GC

2шт.

19

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 20

1шт.

21

H433163

HOSE

control valve to plow lift cylinder, rod end, 1900 mm (74-13/16 inch) long

1шт.

22

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

90 degree, 9/16-18 flare x 3/8 inch PT

1шт.

23

H674455

CYLINDER ASSY.

plow lift, 76 (3) ID x 203 mm (8 inch) stroke, parts list Figure 08-034

1шт.

24

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 25

1шт.

26

H249615

HYDRAULIC HOSE,6.35 mm ID x 1574.80 mm, SAE 100R1

Lift Cylinder Rod End to Control Valve

1шт.

27

H434724

LOOM

SLEEVE nylon, hose protector, 1000 mm (39-3/8 inch) long

1шт.

28

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 29

1шт.

30

H757815

PORT

ORIFICE, plow lift control valve B port

1шт.

31

218-734

UNION,9/16"-18, 37 Degree x 9/16"-18, 37 Degree

CONNECTOR straight, 9/16-18 inch flare

1шт.

32

123989A1

FLAP

BOOT, hose protection, 300 mm (11-13/16 inch) long, if used

2шт.

20

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

25

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

29

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
