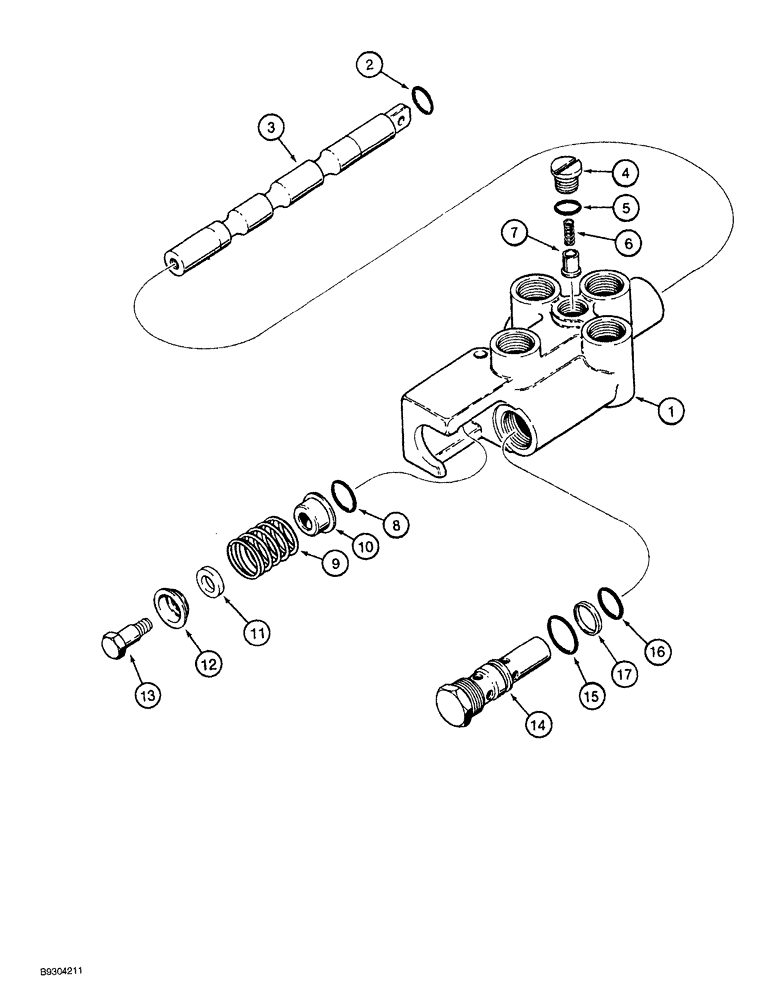

Запчасти Case MAXI-SNEAKER (08-024) - HYDRA-BORER CONTROL VALVE ASSEMBLY (08) - HYDRAULICS

107110A1

VALVE

ASSEMBLY control, Hydra-Borer, without detent, Includes: Ref. 1 - 17

1шт.

1

NSS

NOT SOLD SEPARAT

BODY control valve

1шт.

2

114313A1

O-RING

spool

1шт.

3

T55119

SPOOL

valve

1шт.

H47506

PLUG

ASSEMBLY valve, load check, Includes: Ref. 4 and 5

1шт.

4

NSS

NOT SOLD SEPARAT

PLUG load check

1шт.

5

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

1шт.

6

FH730374

SPRING

load check valve

1шт.

7

FH730366

PLUNGER

POPPET load check valve

1шт.

8

114314A1

O-RING

plug end

1шт.

9

H52928

VALVE SPRING

centering, spool

1шт.

10

H52902

CAP

RETAINER spring, inner

1шт.

11

H746164

WASHER

special, 4 mm (5/32 inch) thick

1шт.

12

F59116

WASHER

SEAT spring, outer

1шт.

13

H428292

SCREW,1/4" - 20 x 0.972"

hex, special, spool

1шт.

N8813

LOCK VALVE

ASSEMBLY relief, control valve, Includes: Ref. 14 - 17

1шт.

14

NSS

NOT SOLD SEPARAT

VALVE relief, control valve

1шт.

15

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Large, outer

1шт.

16

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Small, inner

1шт.

17

G32626

RING

backup, inner

1шт.
