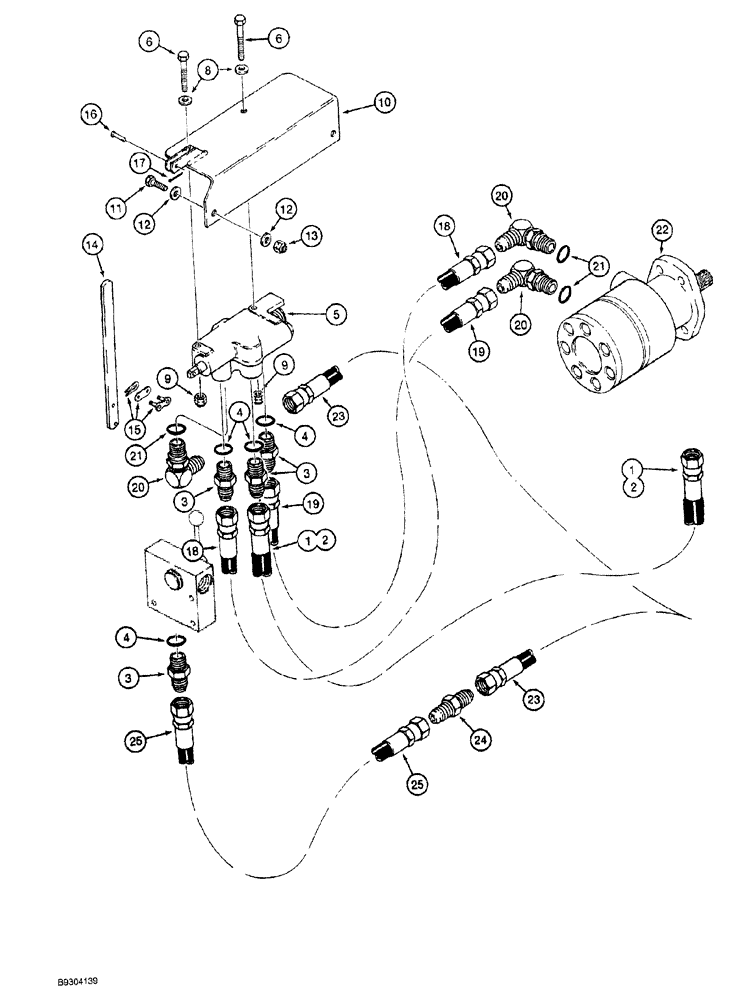

Запчасти Case MAXI-SNEAKER (08-022) - HYDRA-BORER HYDRAULIC CIRCUIT (08) - HYDRAULICS

1

L78468

HOSE ASSY.

to Hydra-Borer control valve in port from plow pump, 940 mm (37 inch) long, used on models without trencher, if used

1шт.

2

H432542

TUBE

to Hydra-Borer control valve in port from trencher control valve, 400 mm (15-3/4 inch) long, used on models with trencher, if used

1шт.

3

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 4

4шт.

4

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

5

107110A1

VALVE

ASSEMBLY control, Hydra-Borer, without detent, parts list Figure 08-024

1шт.

6

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

1шт.

7

413-540

BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5

1шт.

8

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

2шт.

9

232-4115

LOCK NUT,5/16"-18, GC

2шт.

10

H664730

SUPPORT

valve mounting

1шт.

11

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

12

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

13

232-4116

NUT,3/8"-16, GC

2шт.

14

H377325

LEVER

control, Hydra-Borer valve

1шт.

15

241-1315

LINK, CONNECTING

control lever to bracket, single pitch, No. 50, 5/8 inch pitch, complete

1шт.

16

H35279

AXLE PIN,4.72mm OD x 23.76mm L

clevis, 3/16 x 57/64 inch

1шт.

17

432-48

COTTER PIN,1/16" x 1/2"

1шт.

18

R22412

HOSE

control valve A port to motor, 1270 mm (50 inch) long

1шт.

19

D20358

HOSE

control valve B port to motor, 1168 mm (46 inch) long

1шт.

20

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss, Incl. Ref. 21

3шт.

21

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

22

H673156

MOTOR, HYDRAULIC

ASSEMBLY Hydra-Borer, parts list Figure 08-026, see Figure 09-030 for mounting

1шт.

23

H432542

TUBE

Hydra-Borer control valve out port, 400 mm (15-3/4 inch) long

1шт.

24

218-736

UNION,7/8"-14, 37 Degree x 7/8"-14, 37 Degree

straight, 7/8-14 inch flare

1шт.

25

H431809

HYDRAULIC HOSE,15.88 mm ID x 1600.00 mm, SAE 100R2A

To plow control valve

1шт.
