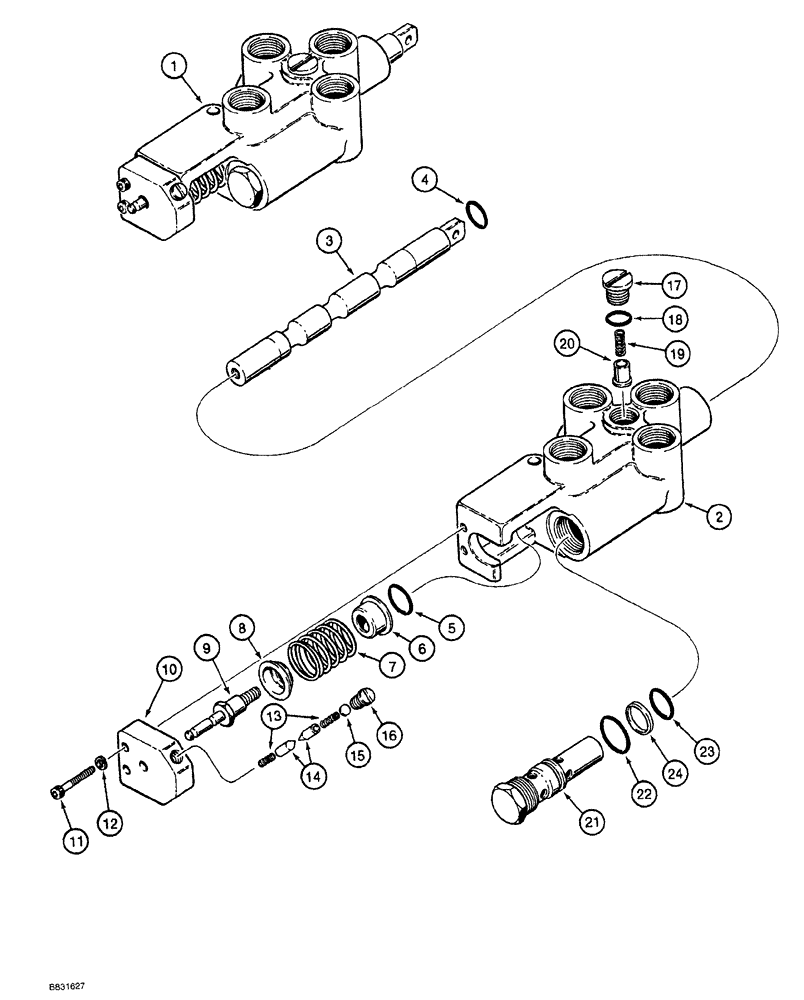

Запчасти Case MAXI-SNEAKER (08-020) - TRENCHER CONTROL VALVE ASSEMBLY (08) - HYDRAULICS

1

H544718

LOCK VALVE

ASSEMBLY control, Hydra-Borer, with detent, trencher, one spool, Includes: Ref. 2 - 24

1шт.

2

NSS

NOT SOLD SEPARAT

BODY control valve

1шт.

3

NSS

NOT SOLD SEPARAT

SPOOL control valve

1шт.

4

F37887

O-RING

spool eye end

1шт.

Part of Seal Kit P/N H125864

1шт.

5

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Spool, plug end

1шт.

Part of Seal Kit P/N H125864

1шт.

6

H138271

WASHER

RETAINER spring, inner

1шт.

7

H52928

VALVE SPRING

centering, spool

1шт.

8

F59116

WASHER

SEAT spring, outer

1шт.

9

H152157

SCREW

spool end, detent

1шт.

10

H125831

BLOCK

detent

1шт.

11

470-12516

SCREW,Slotted Pan Hd, 1/4"-20 x 1"

machine, pan head slotted, 1/4 NC x 1 inch

2шт.

12

492-11025

LOCK WASHER,1/4"

2шт.

13

H105049

SPRING

detent

2шт.

14

H104992

PAWL

DETENT spool

2шт.

15

H141788

DISC

detent

1шт.

16

H424200

PLUG

detent, Replaces: H105015

1шт.

H47506

PLUG

ASSEMBLY valve, load check, Includes: Ref. 17 and 18

1шт.

17

NSS

NOT SOLD SEPARAT

PLUG load check

1шт.

18

238-7112

O-RING,0.103" Thk x 0.487" ID, -112, Cl 7, 75 Duro

1шт.

Part of Seal Kit P/N H125864

1шт.

19

FH730374

SPRING

valve, load check

1шт.

20

FH730366

PLUNGER

POPPET valve, load check

1шт.

N8813

LOCK VALVE

ASSEMBLY relief, control valve, Includes: Ref. 21 - 24

1шт.

21

NSS

NOT SOLD SEPARAT

VALVE relief, control

1шт.

22

238-5116

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

Large, outer

1шт.

Part of Seal Kit P/N H125864

1шт.

23

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

Small, inner

1шт.

Part of Seal Kit P/N H125864

1шт.

24

G32626

RING

backup, inner O-ring

1шт.

Part of Seal Kit P/N H125864

1шт.

H125864

KIT

seal replacement, Includes: Ref. 4, 5, 18, 22, 23 and 24

1шт.
