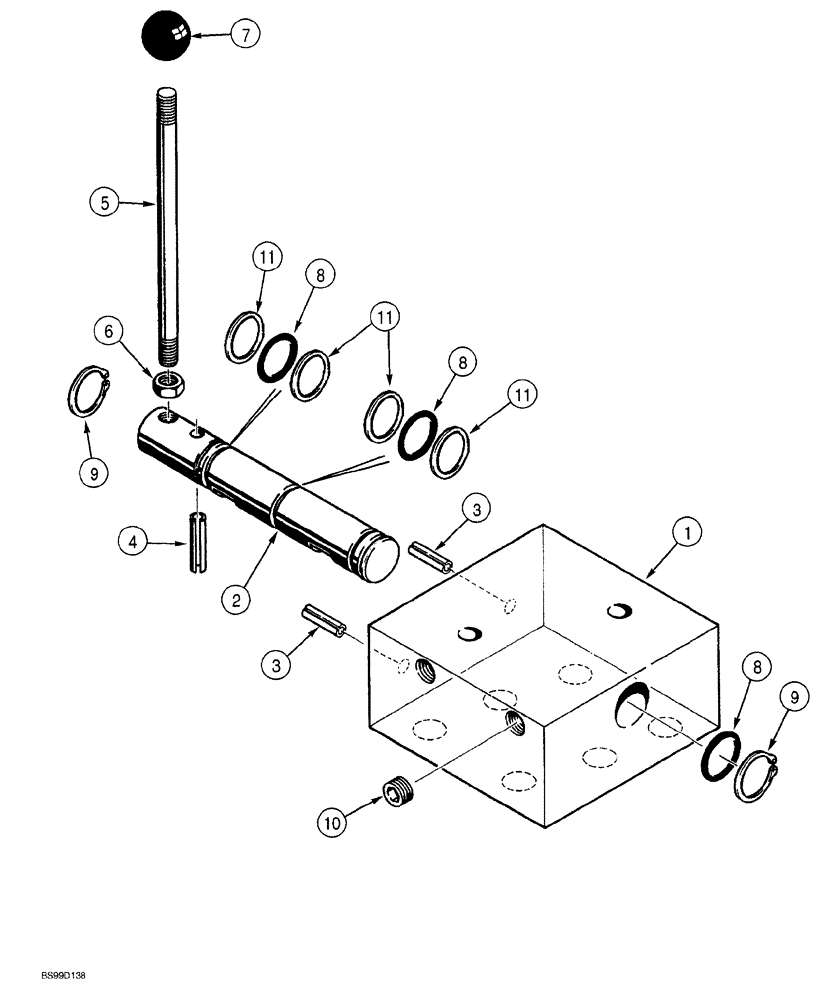

Запчасти Case MAXI-SNEAKER (08-018) - ATTACHMENT LIFT SELECTOR VALVE ASSEMBLY (08) - HYDRAULICS

H672689

VALVE

ASSEMBLY selector, attachment lift, Includes: Ref. 1 - 11

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING valve

1шт.

2

NSS

NOT SOLD SEPARAT

SPOOL valve

1шт.

3

38-11616

LOCK PIN,1/4" x 1", Slotted

2шт.

4

38-11624

LOCK PIN,1/4" x 1 1/2", Slotted

1шт.

5

A161914

ROD

HANDLE valve

1шт.

6

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex

1шт.

7

H249839

KNOB

handle

1шт.

8

238-5115

O-RING,0.103" Thk x 0.674" ID, -115, Cl 5, 75 Duro

Spool

3шт.

9

100-1187

SNAP RING,#87, Ext

Spool

2шт.

10

221-841

PLUG

hex socket, 1/4 inch PT

4шт.

11

223614A1

RING

backup

4шт.
