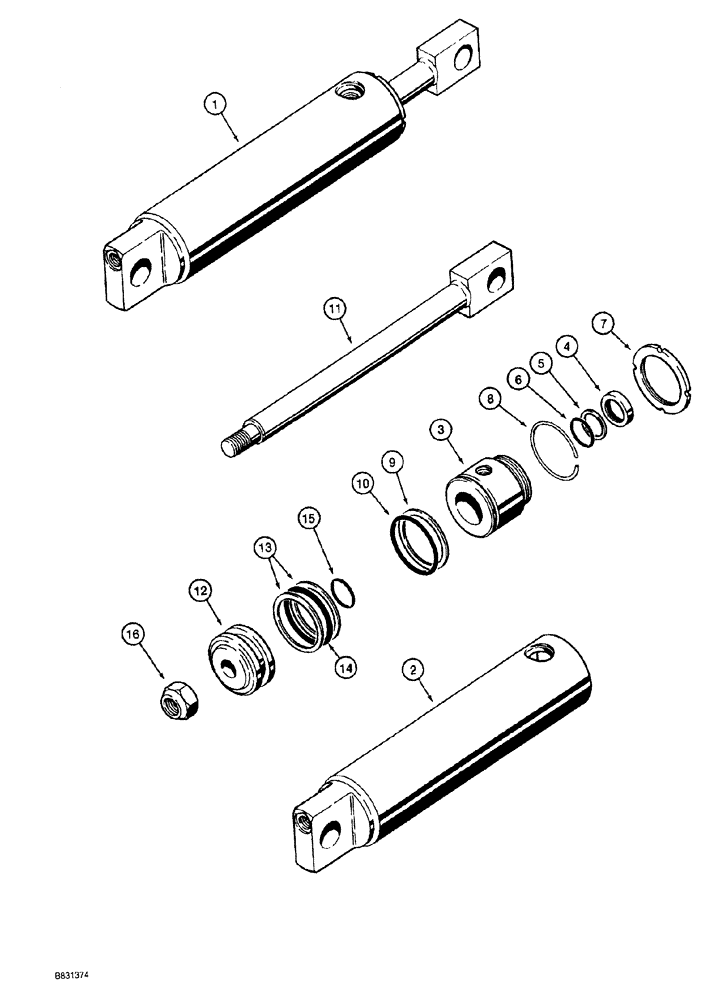

Запчасти Case MAXI-SNEAKER (08-016) - TRENCHER BOOM LIFT CYLINDER ASSEMBLY (08) - HYDRAULICS

1

H504076

CYLINDER BLOCK

ASSEMBLY trencher boom lift, 64 (2-1/2) ID x 203 mm (8 inch) stroke, Includes: Ref. 2 - 16

1шт.

2

H72215

SLEEVE CYLINDER

TUBE

1шт.

3

H70078

BEARING

GLAND cylinder

1шт.

4

H220475

WIPER SEAL

rod

1шт.

Part of Seal Replacement Kit P/N H507350

1шт.

5

A35899

RING

backup, gland inner, piston rod

1шт.

Part of Seal Replacement Kit P/N H507350

1шт.

6

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

Gland, inner, piston rod

1шт.

Part of Seal Replacement Kit P/N H507350

1шт.

7

H745786

BEARING LOCK NUT

gland locking

1шт.

8

A35898

RING, SNAP

RING SNAP retaining

1шт.

Part of Seal Replacement Kit P/N H507350

1шт.

9

A35901

RING

backup, gland O-ring, outer

1шт.

Part of Seal Replacement Kit P/N H507350

1шт.

10

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

Gland, outer

1шт.

Part of Seal Replacement Kit P/N H507350

1шт.

11

H66571

ROD

piston, 25 mm (1 inch) diameter

1шт.

12

A35897

PISTON ASSY.

cylinder

1шт.

13

A35810

RING

backup

2шт.

Part of Seal Replacement Kit P/N H507350

1шт.

14

238-5330

O-RING,0.21" Thk x 2.1" ID, -330, Cl 5, 75 Duro

Outer

1шт.

Part of Seal Replacement Kit P/N H507350

1шт.

15

238-5214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

Piston, inner

1шт.

Part of Seal Replacement Kit P/N H507350

1шт.

16

232-46112

LOCK NUT,3/4"-16, GC

1шт.

H507350

GASKET KIT

seal replacement, Includes: Ref. 4, 5, 6, 8, 9, 10, 13, 14 and 15

1шт.
