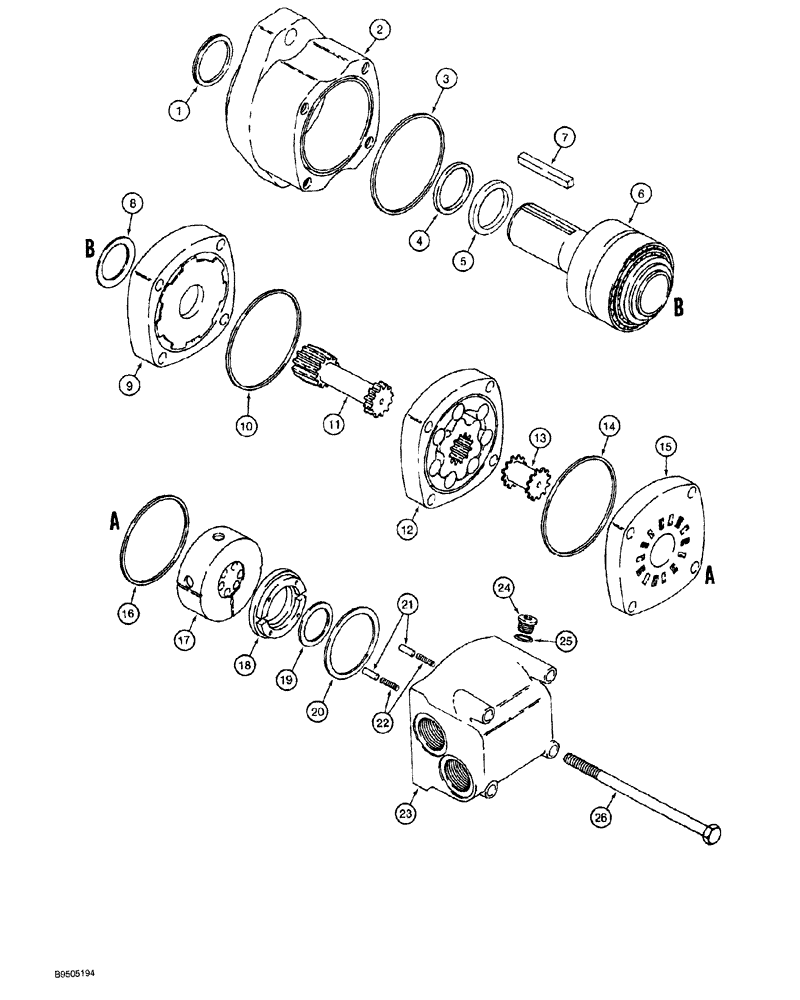

Запчасти Case MAXI-SNEAKER (08-014) - TRENCHER DRIVE MOTOR ASSEMBLY (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
188974A1
MOTOR
ASSEMBLY drive, trencher, Includes: Ref. 1 - 26
1шт.
1
NSS
NOT SOLD SEPARAT
SEAL dust
1шт.
Part of Seal Kit P/N S300417
1шт.
2
NSS
NOT SOLD SEPARAT
HOUSING bearing
1шт.
3
NSS
NOT SOLD SEPARAT
SEAL bearing housing, 3 inch (76 mm) ID
1шт.
Part of Seal Kit P/N S300417
1шт.
4
NSS
NOT SOLD SEPARAT
RING backup, shaft seal
1шт.
Part of Seal Kit P/N S300417
1шт.
5
NSS
NOT SOLD SEPARAT
SEAL shaft
1шт.
Part of Seal Kit P/N S300417
1шт.
6
189090A1
BEARING ASSY
SHAFT AND BEARING ASSEMBLY motor, components not serviced seperately
1шт.
7
N9531
KEY
square, shaft
1шт.
8
S114491
SEAL,30.9mm ID x 38.7mm OD x 3.9mm Thk
shaft, to wear plate
1шт.
Part of Seal Kit P/N S300417
1шт.
9
189092A1
LARGE PLATE
PLATE, LARGE wear, motor
1шт.
10
NSS
NOT SOLD SEPARAT
SEAL wear plate, 3 inch (76 mm) ID
1шт.
Part of Seal Kit P/N S300417
1шт.
11
189093A1
DRIVE
SHAFT motor drive
1шт.
12
189095A1
ROTOR ASSY.
GEROTOR motor
1шт.
13
S114496
COUPLING
DRIVE valve
1шт.
14
NSS
NOT SOLD SEPARAT
SEAL valve plate, 3 inch (76 mm) ID
1шт.
Part of Seal Kit P/N S300417
1шт.
15
189096A1
PLATE
valve
1шт.
16
NSS
NOT SOLD SEPARAT
SEAL housing, 3 inch (76 mm) ID
1шт.
Part of Seal Kit P/N S300417
1шт.
17
S300407
VALVE
motor
1шт.
18
N9532
PLATE
balance, Replaces: S300411
1шт.
19
NSS
NOT SOLD SEPARAT
SEAL balance plate, inner
1шт.
Part of Seal Kit P/N S300417
1шт.
20
NSS
NOT SOLD SEPARAT
SEAL balance plate, outer
1шт.
Part of Seal Kit P/N S300417
1шт.
21
S114372
PIN
valve housing
2шт.
22
S114366
SPRING
pin
2шт.
23
NSS
NOT SOLD SEPARAT
HOUSING motor, port end, order 188974A1 motor assembly
1шт.
24
278548
PLUG,Hex, 7/16"-20 ORB
Incl Ref 25
1шт.
25
237-6004
O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro
1шт.
26
189099A1
BOLT
hex, special
4шт.
