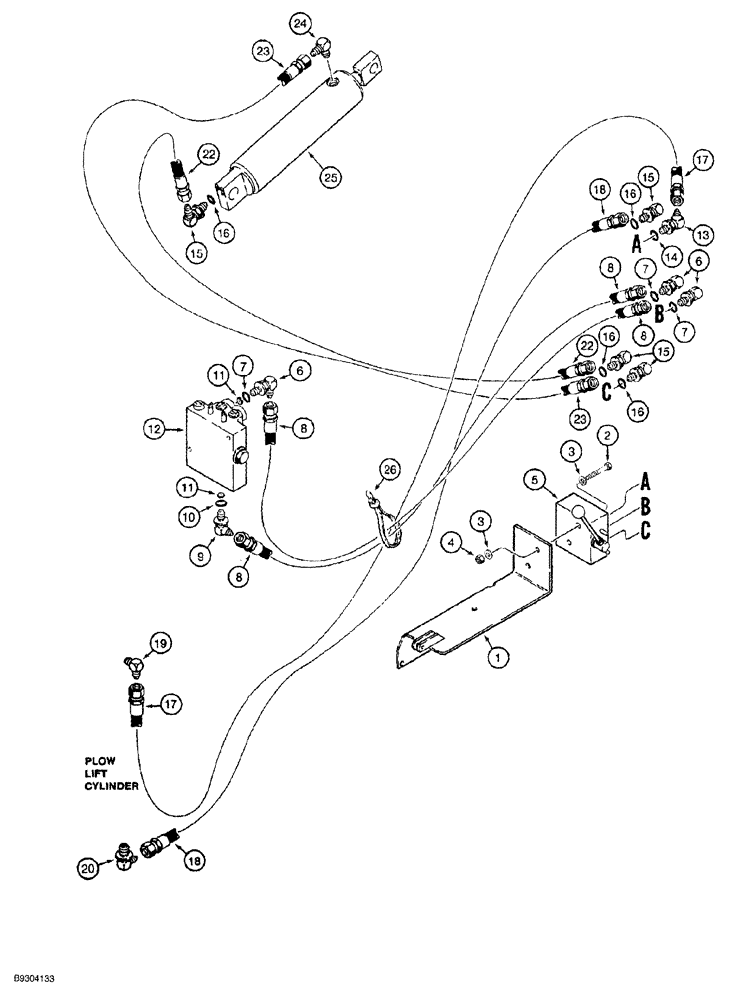

Запчасти Case MAXI-SNEAKER (08-012) - SELECTOR VALVE AND ATTACHMENT LIFT HYDRAULIC CIRCUITS, PLOW AND TRENCHER (08) - HYDRAULICS

1

H664722

SUPPORT

mounting, see Figure 08-010 for bracket mounting hardware, Serial Range: -JAF166909

1шт.

1a

179579A1

SUPPORT

mounting, switch and valve, see Figure 08-010 for bracket and bracket mounting hardware, not shown, Serial Range: -JAF166909

1шт.

2

413-652

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

2шт.

3

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

4шт.

4

232-4116

NUT,3/8"-16, GC

2шт.

5

H672689

VALVE

ASSEMBLY selector, plow or trencher lift, parts list Figure 08-018

1шт.

6

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 7

3шт.

8

H169151

HYDRAULIC HOSE,6.35 mm ID x 609.60 mm, SAE 100R1

From Plow Lift Ports on Steering Control Valve

2шт.

9

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 10

1шт.

11

H757815

PORT

steering and attachment lift control valve, lift ports

2шт.

12

H674732

SLIDE VALVE

ASSEMBLY control, steering and attachment lift, parts list Figure 05-010, see Figure 05-006 for mounting

1шт.

13

218-5135

ELBOW,45 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

45 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 14

1шт.

15

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 16

4шт.

17

H165282

HYDRAULIC HOSE,6.35 mm ID x 533.40 mm, SAE 100R1

Upper Right-Hand Port of Selector Valve to Rod End of Plow Lift Cylinder

1шт.

18

H171264

HYDRAULIC HOSE,6.35 mm ID x 457.20 mm, SAE 100R1

Upper Left-Hand Port of Selector Valve to Closed End of Plow Lift Cylinder

1шт.

19

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

90 degree, 9/16-18 flare x 3/8 inch PT

1шт.

20

218-5128

ELBOW,90° Elbow, 9/16" - 18 Male JIC x 3/4" - 16 Male ORB

Adj., Incl. 21

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

22

H433466

HOSE

lower left hand port of selector valve to closed end of trencher lift cylinder, 2050 mm (80-11/16 inch) long

1шт.

23

H433468

HOSE

lower right hand port of selector valve to rod end of trencher lift cylinder, 2250 mm (88-5/8 inch) long

1шт.

24

218-1053

ELBOW,90 Degree, 9/16"-18, 37 Degree x 3/8"-18, NPTF

90 degree, 9/16-18 flare x 3/8 inch PT

1шт.

25

H504076

CYLINDER BLOCK

ASSEMBLY, trencher boom lift, 64 (2-1/2) ID x 203 mm (8 inch) stroke, parts list Figure 08-016, mounting parts on Figure 09-014

1шт.

26

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, nylon, retaining, 15 inch

1шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

10

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

14

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

16

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
