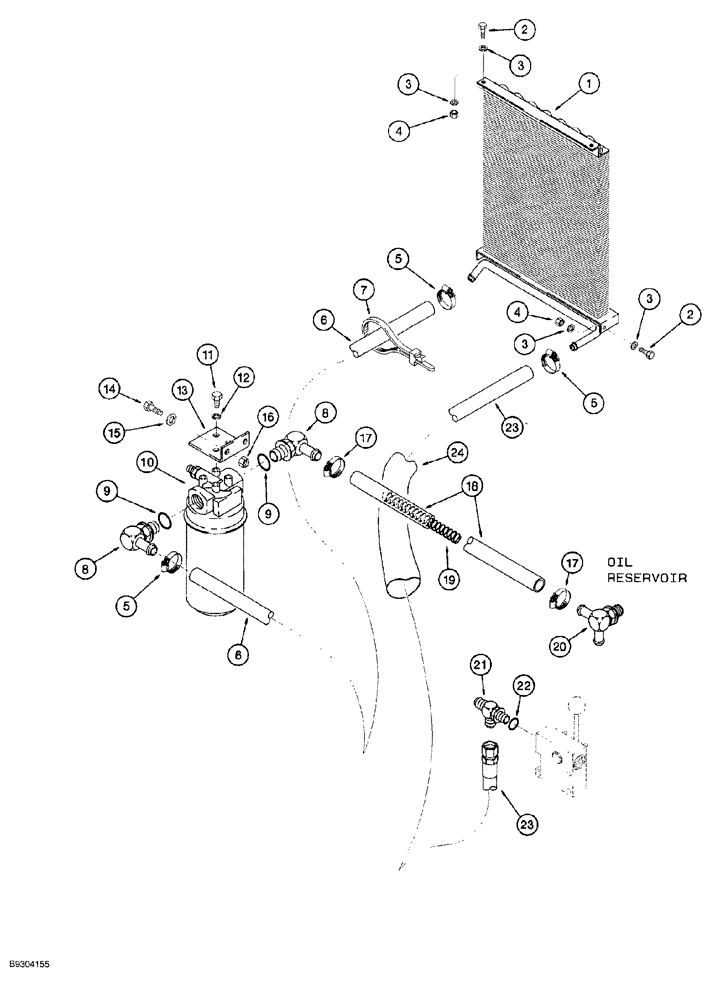

Запчасти Case MAXI-SNEAKER (08-006) - BASIC HYDRAULIC CIRCUIT, OIL COOLER AND FILTER (08) - HYDRAULICS

1

112963A1

COOLER, OIL

hydraulic

1шт.

2

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

3

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

8шт.

4

232-4115

LOCK NUT,5/16"-18, GC

4шт.

5

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

3шт.

6

H309088

HOSE

oil cooler to filter, 889 mm (35 inch) long, cut from 364360C1 bulk hose, see below

1шт.

7

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, nylon, retaining, 15 inch

1шт.

8

217-362

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW, 90 degree, 3/4 stem end x 1-5/16-12 inch adj. O-ring, Includes: Ref. 9

2шт.

9

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

10

D121629

FILTER, ENGINE OIL

FILTER, OIL ASSEMBLY hydraulic, parts list Figure 08-008

1шт.

11

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

3шт.

12

492-11038

LOCK WASHER,3/8"

3шт.

13

111774A1

SUPPORT

mounting, filter

1шт.

14

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

15

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

16

232-4116

NUT,3/8"-16, GC

2шт.

17

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

18

H355180

HOSE,10.00", SAE 30R2

Filter to Reservoir, Cut from 364360C1 Bulk Hose, See Below

1шт.

19

H315986

SPRING

hose support

1шт.

20

D64786

FITTING

TEE special, Includes: Ref. 22

1шт.

21

218-5594

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 1 1/16"-12

TEE, 1-1/16-12 flare branch x flare x 7/8-14 inch adj. O-ring, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

111856A1

HOSE

valve to oil cooler, 2135 mm (84 inch) long

1шт.

24

D131814

SLEEVE

hose protector, Replaces: H434723

1шт.

364360C1

HOSE

bulk, 19 (3/4) ID x 15240 mm (600 inch) long, use to make items Ref. 6 and 18

1шт.
