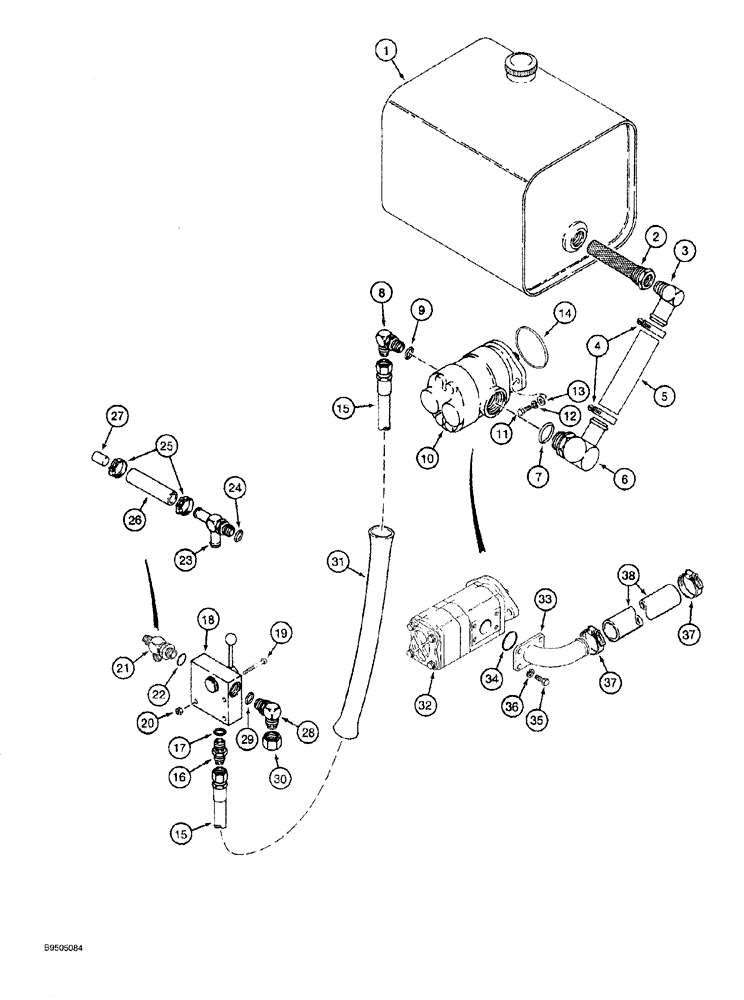

Запчасти Case MAXI-SNEAKER (08-004) - BASIC HYDRAULIC CIRCUIT, RESERVOIR TO PUMP AND VALVE (08) - HYDRAULICS

1

111566A1

RESERVOIR

ASSEMBLY hydraulic fluid, parts list Figure 08-002

1шт.

2

H584631

FILTER ASSY

SCREEN suction, oil diffuser

1шт.

3

217-166

STEM,90 Degree Elbow, 1-1/4" Hose Barb x 1" Male NPTF

ELBOW, 90 degree, 1-1/4 stem end x 1 inch PT

1шт.

4

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

Adjusting

2шт.

5

111857A1

HYDRAULIC HOSE,31.75 mm ID x 330.00 mm

Reservoir to elbow at pump, 365 mm (14-1/4 inch) long, Cut from H433346 bulk hose, See below, Serial Range: -JAF0136787

1шт.

6

217-355

FITTING,90 Degree Elbow, 1-1/4" Hose Barb x 1-5/8" - 12 Male ORB

Adjustable, Includes Ref. 7, Serial Range: -JAF0136787

1шт.

7

237-6020

O-RING,0.118" Thk x 1.475" ID, -920, Cl 6, 90 Duro

1шт.

8

218-5107

90 ELBOW,90 Degree Elbow, 7/8" - 14 Male JIC x 7/8" - 14 Male ORB

Adj. O-ring boss, Incl. Ref. 9

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

H669184

PUMP

ASSEMBLY dual, parts list Figure 05-008, Serial Range: -JAF0136787

1шт.

11

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

12

492-11038

LOCK WASHER,3/8"

2шт.

13

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

14

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

15

H431809

HYDRAULIC HOSE,15.88 mm ID x 1600.00 mm, SAE 100R2A

Pump to plow control valve

1шт.

16

218-5062

HYD CONNECTOR,7/8"-14, 37 Degree x 7/8"-14, O-Ring

ADAPTER straight, 7/8-14 inch flare x O-ring boss, Includes: Ref. 17

1шт.

17

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

18

H675047

VALVE

ASSEMBLY control, plow, parts list Figure 08-030

1шт.

19

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

2шт.

20

232-4115

LOCK NUT,5/16"-18, GC

2шт.

21

218-5594

TEE,37 Degree, 1 1/16"-12, 7/8"-14 O-Ring Run, 1 1/16"-12

TEE, used on tractors with plow, 1-1/16-12 flare branch x flare x 7/8-14 inch adj. O-ring, Includes: Ref. 22

1шт.

22

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

23

H431825

FITTING

TEE special, used on tractors without plow, Includes: Ref. 24

1шт.

24

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

25

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

Used on tractors without plow

2шт.

26

H188995

HYDRAULIC HOSE,19.05 mm ID x 114.30 mm

Use on Tractors without Plow, Cut From Bulk, See Below

1шт.

27

H269449

PLUG

hose, used on tractors without plow

1шт.

28

218-5123

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 7/8" - 14 Male ORB

ELBOW, 90 degree, 1-1/16-12 flare x 7/8-14 inch adj. O-ring boss, Includes: Ref. 29

1шт.

29

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

30

218-335

CAP,37 Degree, 1 1/16"-12

Hex, Used on tractors without plow

1шт.

31

D131814

SLEEVE

hose protector, Replaces: H434723

1шт.

32

109169A1

PUMP

ASSEMBLY dual, parts list Figure 05-009A, Serial Range: JAF0136787-JAF0167168

1шт.

32

188947A1

PUMP

ASSEMBLY dual, parts list Figure 05-009A, Start Serial: JAF0167169

1шт.

33

119152A1

ELBOW

ELBOW, 90 degree, special, Start Serial: JAF0167169

1шт.

34

238-5222

O-RING,0.139" Thk x 1.48" ID, -222, Cl 5, 75 Duro

, Start Serial: JAF0136787

1шт.

35

413-720

BOLT,Hex, 7/16" - 14 x 1-1/4", Gr 5

hex, 7/16 NC x 1-1/4 inch, Start Serial: JAF0136787

4шт.

36

492-11044

LOCK WASHER,7/16"

, Start Serial: JAF0136787

4шт.

37

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

Adjusting, Start Serial: JAF0136787

2шт.

38

135959A1

HOSE,31.75 mm ID x 280.00, SAE 100R3

suction, 280 mm (11 inch) long, Start Serial: JAF0136787

1шт.

H433346

HOSE ASSY.

used for Ref. 5, 32 (1-1/4) ID x 1022 mm (40-1/4 inch) long

1шт.

364360C1

HOSE

bulk, used for Ref. 26, 19 (3/4) ID x 15240 mm (600 inch) long

1шт.
