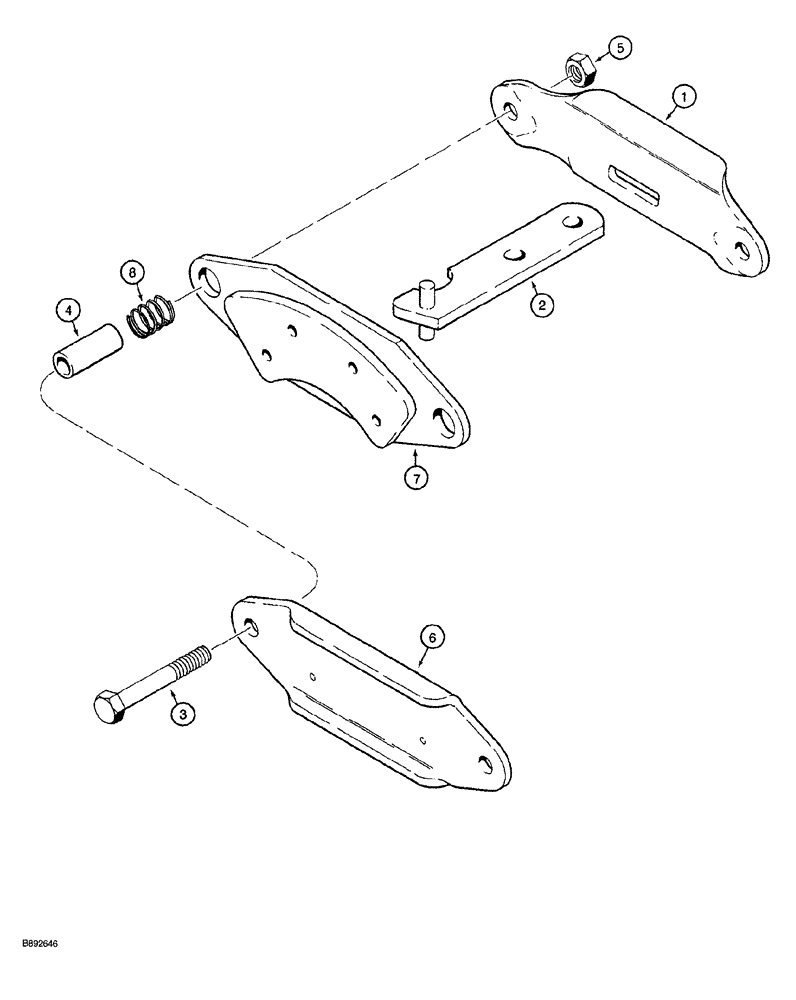

Запчасти Case MAXI-SNEAKER (07-004) - DISC BRAKE CALIPER ASSEMBLY (07) - BRAKES

H673926

CALIPER

ASSEMBLY parking brake, Includes: Ref. 1 - 8

1шт.

1

H437100

BRACKET

caliper mounting

1шт.

2

H437101

LEVER

actuating

1шт.

3

414-536

BOLT,Hex, 5/16" - 24 x 2-1/4", Gr 5

hex, 5/16 NF x 2-1/4 inch

2шт.

4

NSS

NOT SOLD SEPARAT

SPACER bracket

2шт.

5

230-4715

LOCK NUT,5/16"-24, GA

Hex

2шт.

6

H437104

HOLDER

PAD parking brake, outer

1шт.

7

H437102

HOLDER

PAD parking brake, inner

1шт.

8

H437103

SPRING

brake shoe return

2шт.
