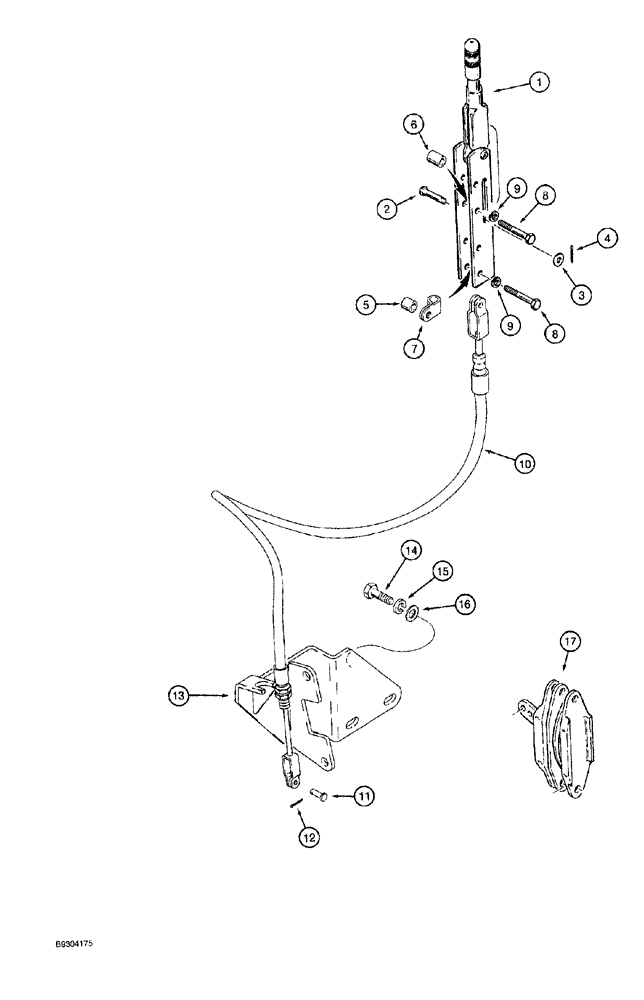

Запчасти Case MAXI-SNEAKER (07-002) - PARKING BRAKE (07) - BRAKES

H506881

HANDLE

LEVER ASSEMBLY parking brake, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

LEVER parking brake

1шт.

2

D42458

PIN

clevis, special

1шт.

3

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

1шт.

4

432-612

COTTER PIN,3/32" x 3/4"

1шт.

5

H53959

SPACER

13 mm (1/2 inch) long

1шт.

6

H53942

SPACER

30 mm (3/4 inch) long

1шт.

7

D40684

CLAMP,12.7mm ID, 8.78mm Bolt Hole, P Type

parking brake cable

1шт.

8

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

2шт.

9

492-11031

LOCK WASHER,5/16"

2шт.

10

119124A1

CABLE

parking brake

1шт.

11

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

PIN special, 1/4 x 51/64 inch

1шт.

12

432-412

COTTER PIN,1/16" x 3/4"

1шт.

13

119004A1

SUPPORT

mounting, brake caliper

1шт.

14

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

15

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

16

495-21056

WASHER,1/2"

flat, 9/16 x 1-3/8 x 7/64 inch

2шт.

17

H673926

CALIPER

ASSEMBLY parking brake, parts list Figure 07-004

1шт.
