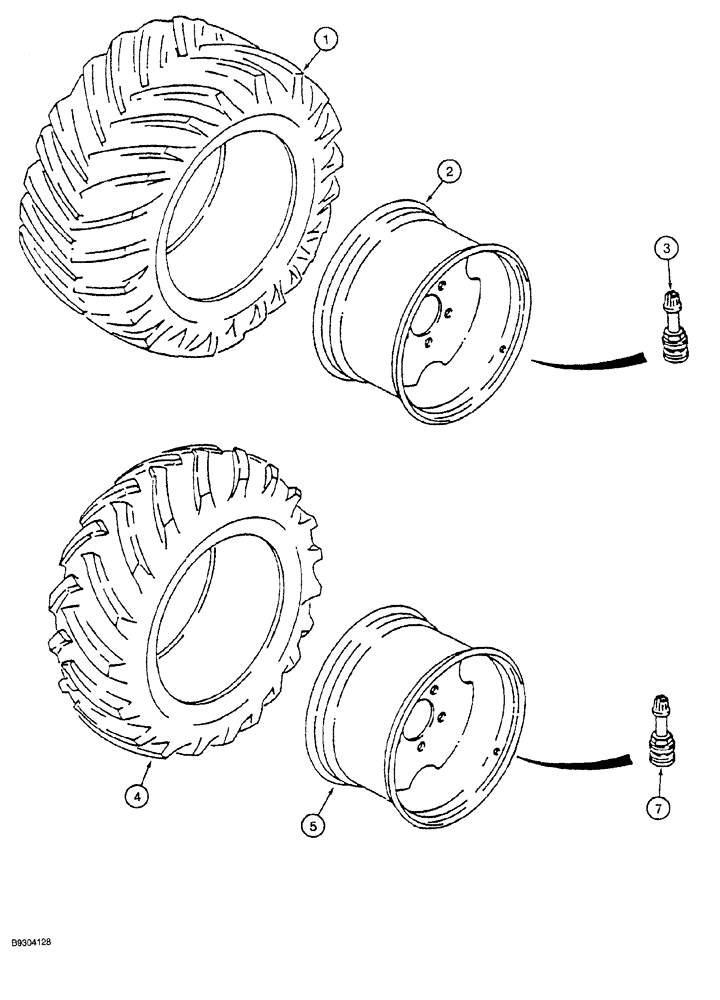

Запчасти Case MAXI-SNEAKER (06-020) - TIRES AND WHEELS, SINGLE TIRE AND WHEEL (06) - POWER TRAIN

1

REF

INSTRUCTION

TIRE, all traction, Super Terra Grip, 23 x 10.50 x 12, not a service item, purchase locally

4шт.

2

113388A1

WHEEL

8.50 x 12 inch, used with 10.50 x 12 tire

4шт.

3

H261917

VALVE

STEM, tire inflation

4шт.

4

REF

INSTRUCTION

TIRE, Hi-Flotation, Super Terra Grip, 4 ply, 26 x 12 x 12, not a service item, purchase locally

4шт.

5

122169A1

RIM

WHEEL used with 26 x 12 x 12 tire

4шт.

6

REF

INSTRUCTION

TUBE tire, 12 x 12, purchase locally, not shown

4шт.

7

H261917

VALVE

STEM, tire inflation

4шт.
