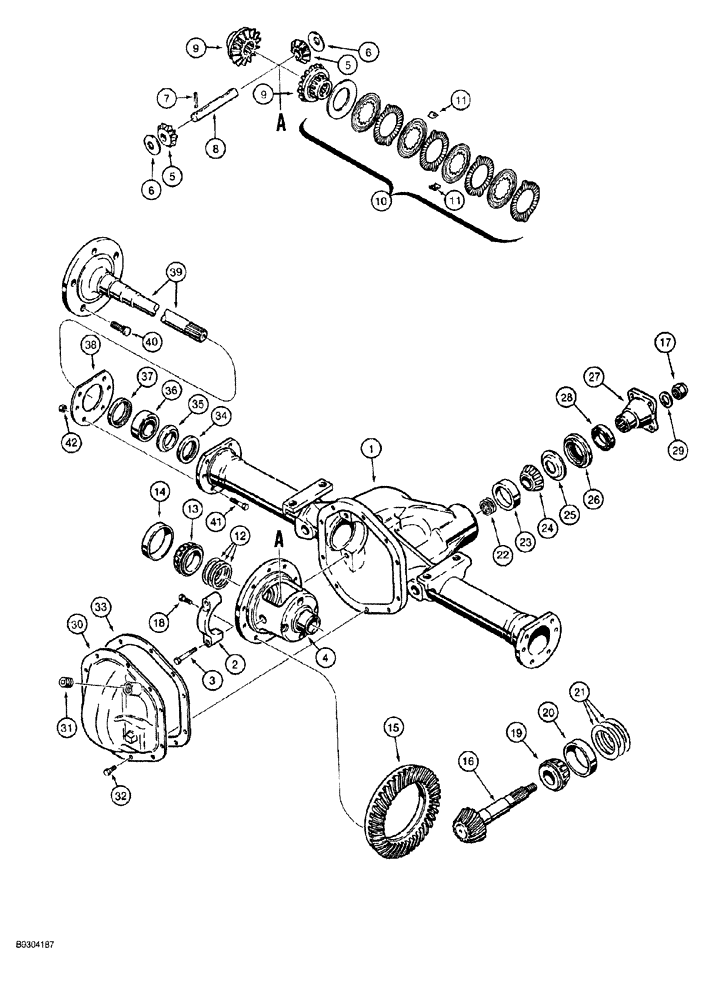

Запчасти Case MAXI-SNEAKER (06-016) - AXLE ASSEMBLY, 110858A1, FRONT AND REAR (06) - POWER TRAIN

110858A1

AXLE HOUSING

ASSEMBLY, front and rear, Includes: Ref. 1 - 43

2шт.

1

NSS

NOT SOLD SEPARAT

HOUSING axle

1шт.

2

NSS

NOT SOLD SEPARAT

CAP differential bearing

2шт.

3

413-836

BOLT,Hex, 1/2" - 13 x 2-1/4", Gr 5

4шт.

100862A1

CASE

ASSEMBLY differential, two pinion, Includes: Ref. 4 - 11

1шт.

4

100863A1

CASE

differential, two pinion

1шт.

5

NSS

NOT SOLD SEPARAT

GEAR pinion

2шт.

6

127890R1

WASHER

thrust, pinion, Replaces: H226746

2шт.

7

38-11624

LOCK PIN,1/4" x 1 1/2", Slotted

1шт.

8

NSS

NOT SOLD SEPARAT

SHAFT pinion

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR side, axle shaft

2шт.

10

H572370

DISC

matched set, plates and clips, two pinion differential, Includes: Ref. 11

1шт.

11

H226753

CLIP

retaining

4шт.

12

H198259

SHIM,.003" Thk

(0.08 mm)

1шт.

12

H198267

SHIM,.005" Thk

(0.13 mm)

1шт.

12

H198275

SHIM,.010" Thk

(0.25 mm)

1шт.

12

H198283

SHIM,.030" Thk

(0.76 mm)

1шт.

13

300426R91

BEARING ASSY,45.618 mm ID x 25.4 mm

tapered roller, case, 1-25/32 inch ID

2шт.

14

128237R1

BEARING, CUP,82.93mm OD x 22.23mm W

tapered roller, Replaces: H753624

2шт.

117376A1

GEAR

AND PINION axle, ring gear and pinion shaft, Includes: Ref. 15 and 16

1шт.

15

NSS

NOT SOLD SEPARAT

GEAR ring, differential case

1шт.

16

NSS

NOT SOLD SEPARAT

SHAFT pinion, input

1шт.

17

H197566

NUT

hex, special, yoke retaining

1шт.

18

117383A1

BOLT,3/8" - 24 x 21.01mm

special, ring gear mounting

10шт.

19

128241R91

ROLLER BEARING,1.3755" ID x 1.125"

tapered roller, pinion shaft, inner

1шт.

20

128242R1

BEARING CUP,76.225 mm OD x 23.863 mm

CUP, tapered roller bearing, pinion shaft bearing, inner

1шт.

21

H198150

SHIM,.003" Thk

(0.08 mm), Inner

1шт.

21

H198168

SHIM,.005" Thk

(0.13 mm), Inner

1шт.

21

H198176

SHIM,.010" Thk

Pinion shaft (0.25 mm), Inner

1шт.

22

H198010

SHIM,.003" Thk

(0.08 mm), Outer

1шт.

22

H198028

SHIM,.005" Thk

(0.13 mm), Outer

1шт.

22

H198036

SHIM,.010" Thk

(0.25 mm), Outer

1шт.

22

H198044

SHIM,.030" Thk

(0.76 mm), Outer

1шт.

23

451495R1

BEARING ASSY,1.125" ID x 73 mm OD x 17.5 mm

CUP tapered roller, pinion shaft, outer, Replaces: A26746

1шт.

24

128239R91

ROLLER BEARING,1.125" ID x 2.875" OD x 0.6875, 0.875"

tapered roller, pinion shaft, outer

1шт.

25

220141R1

WASHER

SLINGER oil, pinion shaft, inner, Replaces: H197764

1шт.

26

N8427

OIL SEAL

oil, pinion shaft

1шт.

27

H197582

YOKE

UNIVERSAL JOINT YOKE axle

1шт.

28

H196998

SPACER

SLINGER oil, yoke.

1шт.

29

H197574

WASHER

flat, special, pinion shaft

1шт.

N8428

COVER

ASSEMBLY differential, Includes: Ref. 30 and 31

1шт.

30

NSS

NOT SOLD SEPARAT

COVER differential

1шт.

31

221-887

PLUG

square socket, 3/4 inch PT, magnetic, service replacement for square head plug used in production

1шт.

32

H226555

FLANGE BOLT

hex, special, cover

10шт.

33

REF

INSTRUCTION

GASKET cover, service with M20704 gasket, see below

1шт.

H610709

BEARING

KIT and seal, Includes: Ref. 34 and 38

2шт.

34

H198093

SEAL ASSY.

oil, axle shaft, inner

1шт.

35

N8429

RETAINER

RING, seal

1шт.

36

H599266

BEARING ASSY

ball, wheel

1шт.

37

H757518

SEAL

oil, axle shaft, outer

1шт.

38

H315127

SEAL ASSY.

RETAINER wheel bearing

1шт.

117386A1

AXLE SHAFT

ASSEMBLY, Includes: Ref. 39 and 40, Serial Range: -JAF0136728

2шт.

139495A1

AXLE SHAFT

ASSEMBLY, Includes: Ref. 39 and 40, Start Serial: JAF0136728

2шт.

39

NSS

NOT SOLD SEPARAT

SHAFT axle

1шт.

40

117388A1

BOLT

special, wheel retaining, Serial Range: -JAF0136728

5шт.

40

H171090

WHEEL BOLT

BOLT special, wheel retaining, Start Serial: JAF0136728

5шт.

41

H263103

BOLT

hex, special, wheel bearing retaining

12шт.

42

232-4616

LOCK NUT,3/8"-24, GC

12шт.

43

H384453

BAFFLE

oil, not shown

1шт.

M20704

ADHESIVE

SEALANT, form in place, 3 oz (89 ml) of sealant in a tube, use with Ref. 33 gasket

1шт.
