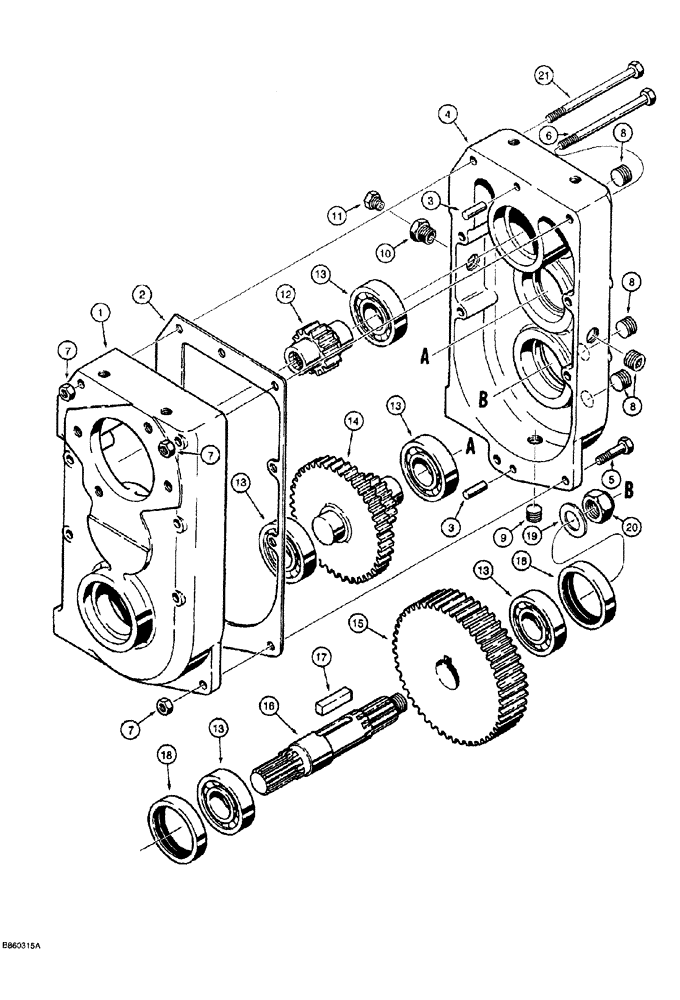

Запчасти Case MAXI-SNEAKER (06-012) - TRANSMISSION ASSEMBLY (06) - POWER TRAIN

H660126

TRANSMISSION

ASSEMBLY ground drive, Includes: Ref. 1 - 21

1шт.

1

H412866

CASE

HOUSING transmission, rear

1шт.

2

H413153

GASKET

housing

1шт.

3

37-1616

DOWEL,3/8" x 1"

dowel, hardened, 3/8 x 1 inch, Replaces: H755272

2шт.

4

H412858

CASE

HOUSING transmission, front

1шт.

5

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

2шт.

6

413-684

BOLT,Hex, 3/8" - 16 x 5-1/4", Gr 5

hex, 3/8 NC x 5-1/4 inch

5шт.

7

230-4216

LOCK NUT,3/8"-16, GA

8шт.

8

217-439

PLUG,Hex Soc, 1/2" - 14 NPTF

Headless

4шт.

9

217-435

PLUG,Hex Soc, 3/8" - 18 NPTF

hex socket headless, 3/8 inch PT

1шт.

10

221-87

REDUCER,1/2" NPT x 1/8" NPT

pipe, 1/2 male x 1/8 inch female

1шт.

11

R11152

FITTING

BREATHER housing

1шт.

12

H253112

GEAR

SHAFT

1шт.

13

A26581

BALL BEARING,1.378" ID x 2.8346" OD x 0.6693"

Ball, shafts

5шт.

14

H253153

GEAR

cluster, with shaft

1шт.

15

H253146

GEAR

output reduction

1шт.

16

H253138

SHAFT

output

1шт.

17

H70045

KEY

square, 3/8 x 1-3/4 inch long

1шт.

18

H754226

OIL SEAL

oil

2шт.

19

H224501

WASHER

flat, special, 7/8 inch

1шт.

20

131-465

LOCK NUT,7/8"-14, G8

thin hex, self-locking, 7/8 inch NF

1шт.

21

413-680

BOLT,Hex, 3/8" - 16 x 5", Gr 5

1шт.
