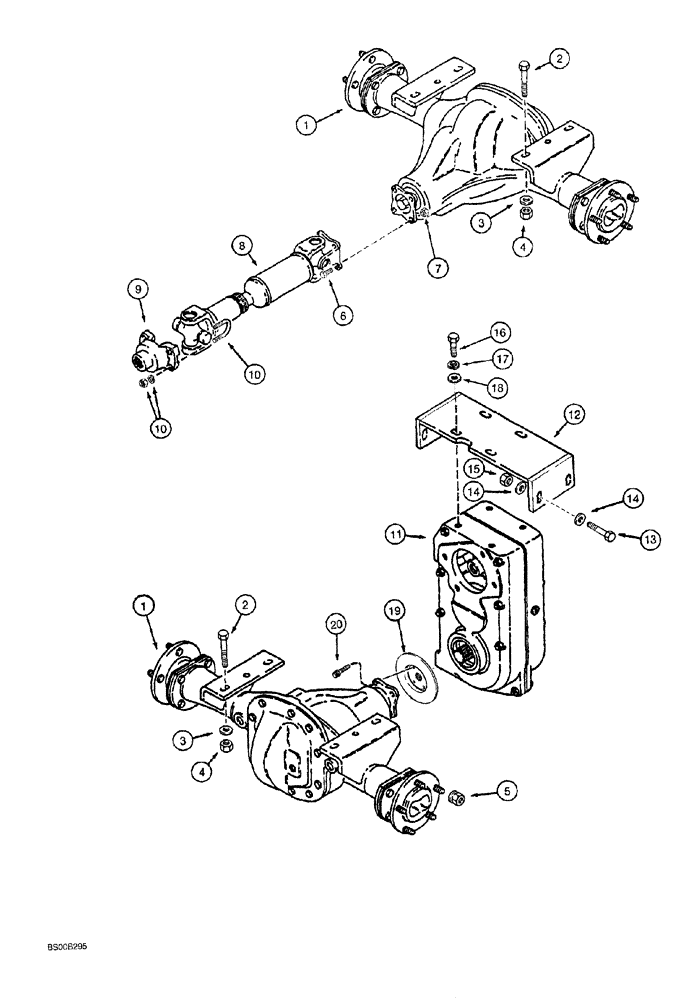

Запчасти Case MAXI-SNEAKER (06-010) - DRIVE LINE MOUNTING (06) - POWER TRAIN

1

110858A1

AXLE HOUSING

ASSEMBLY front and rear, parts list Figure 06-016

2шт.

2

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

8шт.

3

H274894

WASHER

flat, special

8шт.

4

232-4118

NUT,1/2"-13, GC

8шт.

5

131-918

FLANGE NUT,Flg, 1/2"-20, G5

large hex flange, 1/2 inch NF

20шт.

6

H304691

BOLT,Hex, 3/8" - 24 x 27.38mm

hex, special, yoke mounting

4шт.

7

232-4616

LOCK NUT,3/8"-24, GC

4шт.

8

111086A1

COUPLING

SHAFT ASSEMBLY drive, parts list Figure 06-014

1шт.

9

131687A1

FORK

YOKE transmission, to drive shaft, Replaces: H428276

1шт.

10

H183566

BOLT

ASSEMBLY, special, includes hardware

2шт.

11

H660126

TRANSMISSION

ASSEMBLY ground drive, parts list Figure 06-012

1шт.

12

112027A1

SUPPORT

mounting, transmission

1шт.

13

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

4шт.

14

H274894

WASHER

flat, special

8шт.

15

232-4118

NUT,1/2"-13, GC

4шт.

16

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

4шт.

17

80679

LOCK WASHER,1/20.507 CST ZND

4шт.

18

H274894

WASHER

flat, special

4шт.

19

H662262

FLANGE

drive and disc brake rotor

1шт.

20

79-1612

12 PT SCREW,Flg, 3/8" - 24 x 0.75", Gr 8

12 point flange, 3/8 NF x 3/4 inch, grade 8

4шт.
