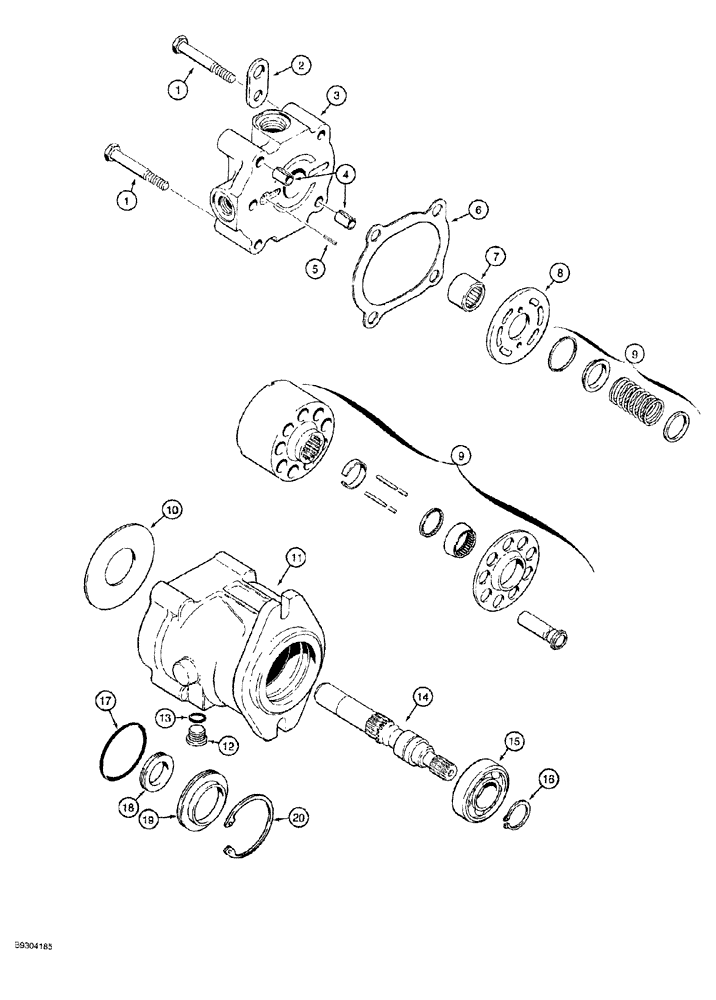

Запчасти Case MAXI-SNEAKER (06-008) - GROUND DRIVE MOTOR ASSEMBLY (06) - POWER TRAIN

H674235

MOTOR

ASSEMBLY ground drive, no longer available, when replacing complete motor assembly, order 239920A2, see Figure 06-009A, Includes: Ref. 1 - 20

1шт.

1

826-10080

BOLT,Hex, M10 x 1.5 x 80mm, Cl 10.9

hex, 10 - 1.5 x 80 mm, class 10.9

4шт.

2

100703A1

PLATE, SPACER

PLATE,SPACER BRACKET lifting

1шт.

3

100708A1

CAP

COVER motor

1шт.

4

N13994

SPACER

PIN roll, special, cover locating

2шт.

5

38-11210

LOCK PIN,3/16" x 5/8", Slotted

1шт.

6

100701A1

GASKET

cover

1шт.

7

F62086

NEEDLE BEARING,Needle, 25.4mm ID x 33.34mm OD x 25.4mm W

needle, shaft, Replaces: F62094

1шт.

8

100702A1

LARGE PLATE

PLATE, LARGE valve

1шт.

9

100706A1

CYLINDER BLOCK

ASSEMBLY, component parts not serviced separately

1шт.

10

100700A1

PLATE

thrust, wear

1шт.

11

100698A1

HOUSING

motor

1шт.

12

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 13

1шт.

13

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

14

100707A1

SHAFT

motor

1шт.

15

ST241

BALL BEARING,30 mm ID x 72 mm OD x 19 mm

ball, Replaces: 700510R91

1шт.

16

100-16118

SNAP RING,#118, Ext

1шт.

17

238-5146

O-RING,0.103" Thk x 2.612" ID, -146, Cl 5, 75 Duro

1шт.

18

100699A1

SEAL

shaft

1шт.

19

100704A1

CARRIER FLANGE SEAL

CARRIER seal

1шт.

20

103-21300

SNAP RING,3.00", Int, #300

Seal

1шт.
