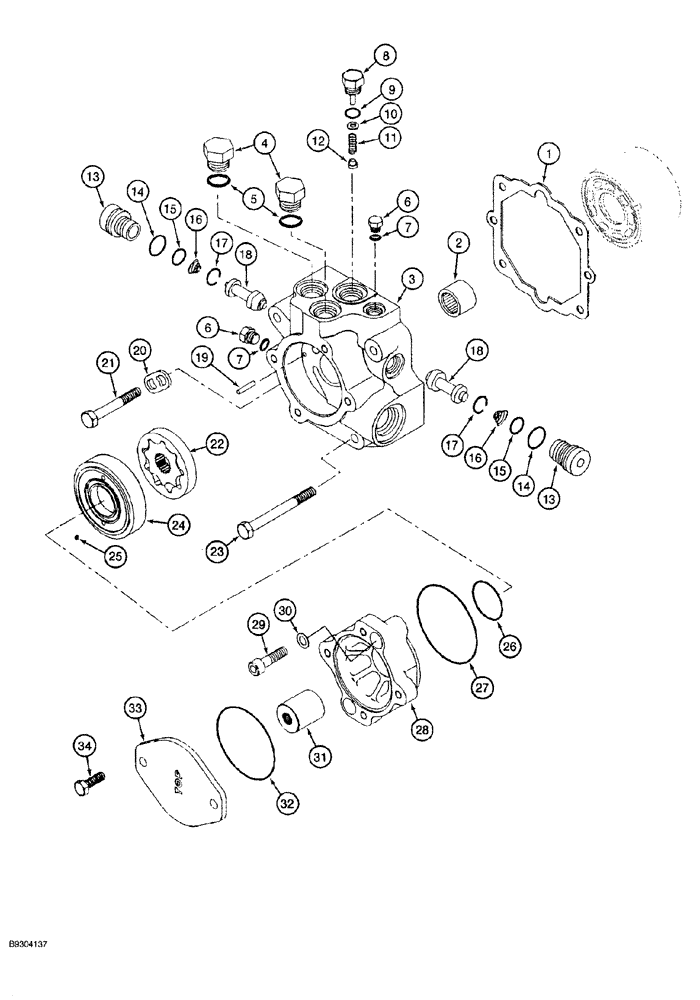

Запчасти Case MAXI-SNEAKER (06-006) - GROUND DRIVE PUMP ASSEMBLY, END CAP, GEROTOR AND ADAPTING PARTS (06) - POWER TRAIN

108721A1

PUMP

ASSEMBLY ground drive, also includes parts on Figure 06-004, Includes: Ref. 1 - 34

1шт.

1

124826A1

GASKET

end cap

1шт.

2

F62086

NEEDLE BEARING,Needle, 25.4mm ID x 33.34mm OD x 25.4mm W

needle, shaft, Replaces: F62094

1шт.

3

124839A1

CAP

end

1шт.

4

86512512

PLUG,7/8" - 14 ORB

Incl. Ref. 5

2шт.

5

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

6

76349

PLUG,9/16" - 18 ORB

Incl. Ref. 7

2шт.

8

H438295

PLUG

charge relief

1шт.

9

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

10

H438297

BLOCK

SHIM charge relief, .02 inch thick

1шт.

10

H438298

BLOCK

SHIM charge relief, .05 inch thick

1шт.

11

124828A1

SPRING

helical compression

1шт.

12

H438300

POPPET

POPPET plug, charge relief

1шт.

13

H438301

PLUG

relief valve

2шт.

Effective with pumps built after 96-40-XXXXX, this item cannot be serviced since new design does not allow disassembly

1шт.

14

238-5210

O-RING,0.139" Thk x 0.734" ID, -210, Cl 5, 75 Duro

2шт.

Effective with pumps built after 96-40-XXXXX, this item cannot be serviced since new design does not allow disassembly

1шт.

15

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

2шт.

Effective with pumps built after 96-40-XXXXX, this item cannot be serviced since new design does not allow disassembly

1шт.

16

N14435

SPRING

relief valve

2шт.

Effective with pumps built after 96-40-XXXXX, this item cannot be serviced since new design does not allow disassembly

1шт.

17

H438302

RING

retaining, check valve

2шт.

Effective with pumps built after 96-40-XXXXX, this item cannot be serviced since new design does not allow disassembly

1шт.

18

N14437

VALVE POPPET

valve

2шт.

Effective with pumps built after 96-40-XXXXX, this item cannot be serviced since new design does not allow disassembly

1шт.

19

H351445

PIN

dowel, valve plate alignment

1шт.

20

100703A1

PLATE, SPACER

PLATE,SPACER BRACKET lifting

1шт.

21

828-10065

BOLT,Hex, M10 x 1.5 x 65mm, Cl 10.9

2шт.

22

124842A1

ROTOR ASSY.

GEROTOR pump, complete

1шт.

23

828-10090

BOLT,Hex, M10 x 1.5 x 90mm, Cl 10.9

2шт.

24

124843A1

SPACER

gerotor

1шт.

25

211-1006

BALL,3/16" Dia

1шт.

26

238-5223

O-RING,0.139" Thk x 1.609" ID, -223, Cl 5, 75 Duro

1-3/4 ID x 1/8 inch wide

1шт.

27

238-5236

O-RING,0.139" Thk x 3.234" ID, -236, Cl 5, 75 Duro

1шт.

28

124844A1

ADAPTER

flange

1шт.

29

862-10040

HEX SOC SCREW,M10 x 40mm, Cl 12.9

2шт.

30

124845A1

WASHER

special

2шт.

31

124846A1

SPLINED COUPLING

shaft

1шт.

32

H438062

SHAFT SEAL

O-RING cover plate

1шт.

33

H438063

LARGE PLATE

PLATE, LARGE cover

1шт.

34

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

7

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
