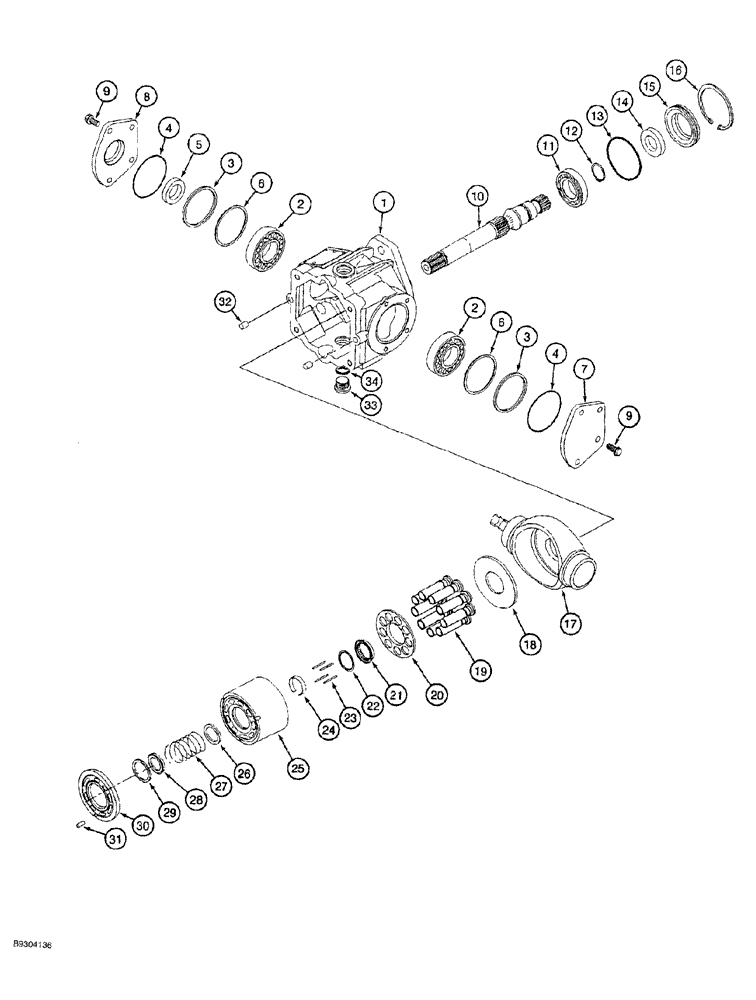

Запчасти Case MAXI-SNEAKER (06-004) - GROUND DRIVE PUMP ASSEMBLY, HOUSING, INPUT SHAFT AND PISTON BLOCK (06) - POWER TRAIN

108721A1

PUMP

ASSEMBLY ground drive, also includes parts on Figure 06-006, Includes: Ref. 1 - 34

1шт.

1

117378A1

HOUSING

pump

1шт.

2

H438304

BEARING

tapered roller

2шт.

3

H438309

SPACER

bearing

2шт.

4

239-5146

O-RING,Square, 0.094" Thk x 2.612" ID, -146, Cl 5, 75 Duro

Housing to cover

2шт.

5

H438288

SEAL

lip

1шт.

6

124832A1

SHIM

trunnion, .003 inch thick

1шт.

6

124833A1

SHIM

trunnion, .005 inch thick

1шт.

6

124834A1

SHIM

trunnion, .01 inch thick

1шт.

6

124835A1

SHIM

trunnion, .02 inch thick

1шт.

7

H438310

COVER

housing, trunnion

1шт.

8

H438311

COVER

CARRIER housing, trunnion seal

1шт.

9

628-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 10.9, Full Thd

1шт.

10

124840A1

SHAFT

input, 15 tooth

1шт.

11

ST241

BALL BEARING,30 mm ID x 72 mm OD x 19 mm

ball, Replaces: 700510R91

1шт.

12

100-16118

SNAP RING,#118, Ext

Replaces C14297

1шт.

13

238-5146

O-RING,0.103" Thk x 2.612" ID, -146, Cl 5, 75 Duro

1шт.

14

100699A1

SEAL

lip

1шт.

15

100704A1

CARRIER FLANGE SEAL

CARRIER seal

1шт.

16

103-21300

SNAP RING,3.00", Int, #300

1шт.

17

124831A1

PLATE

swash, pistons

1шт.

18

100700A1

PLATE

thrust

1шт.

100706A1

CYLINDER BLOCK

ASSEMBLY, Includes: Ref. 19 - 29

1шт.

19

NSS

NOT SOLD SEPARAT

PISTON pump

9шт.

20

NSS

NOT SOLD SEPARAT

RETAINER piston

1шт.

21

NSS

NOT SOLD SEPARAT

GUIDE retainer

1шт.

22

NSS

NOT SOLD SEPARAT

WASHER thrust

1шт.

23

NSS

NOT SOLD SEPARAT

PIN retainer

4шт.

24

NSS

NOT SOLD SEPARAT

RETAINER pin

1шт.

25

NSS

NOT SOLD SEPARAT

BLOCK cylinder

1шт.

26

NSS

NOT SOLD SEPARAT

WASHER thrust

1шт.

27

NSS

NOT SOLD SEPARAT

SPRING cylinder block

1шт.

28

NSS

NOT SOLD SEPARAT

RETAINER spring

1шт.

29

NSS

NOT SOLD SEPARAT

RING retaining

1шт.

30

124841A1

PLATE

valve

1шт.

31

38-11210

LOCK PIN,3/16" x 5/8", Slotted

1шт.

32

F23124

AXLE PIN

locating, valve block

2шт.

33

9841223

PLUG,1-1/16" - 12 ORB

Incl. Ref. 34

2шт.

34

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.
