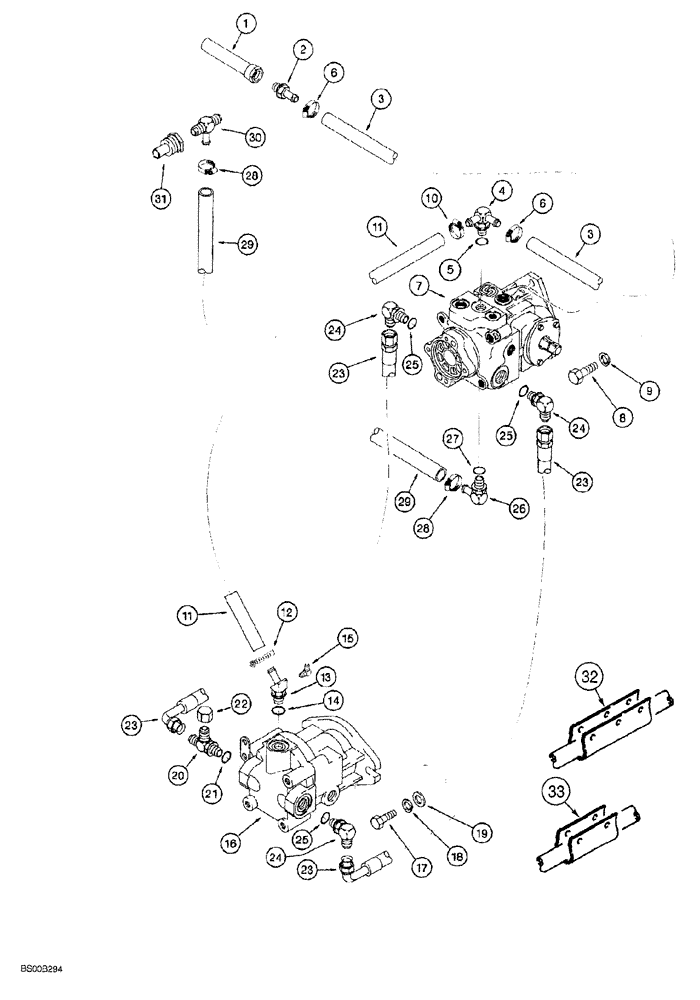

Запчасти Case MAXI-SNEAKER (06-002) - GROUND DRIVE HYDRAULIC CIRCUIT (06) - POWER TRAIN

1

H151399

FILTER STRAINER

SCREEN, oil diffuser

1шт.

2

217-384

FITTING,3/4" Hose Barb x 1" Male NPTF

ADAPTER straight, 3/4 stem end x 1 inch PT

1шт.

3

H352237

HOSE,0.75" ID x 14.50", SAE 30R2 Type 1

Cut from H434280 Bulk Hose, See Below

1шт.

4

H339762

TEE

special, Includes: Ref. 5

1шт.

5

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

6

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

7

108721A1

PUMP

ASSEMBLY ground drive, parts list Figures 06-004 and 06-006

1шт.

8

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

10

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

1шт.

11

H434280

HOSE

return, ground drive pump to ground drive motor, 800 mm (31-1/2 inch) long

1шт.

12

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

1шт.

13

113892A1

FITTING

special, 45 degree, Includes: Ref. 14

1шт.

14

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

15

218-483

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

90 degree, 9/16-18 flare x 1/4 inch PT

1шт.

16

REF

INSTRUCTION

MOTOR ASSEMBLY ground drive, see Figures 06-008 and 06-009A for correct drive motor

1шт.

17

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

18

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

19

H274894

WASHER

flat, special

2шт.

20

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

TEE, 1-1/16-12 inch adj. O-ring branch x flare x flare, Includes: Ref. 21

1шт.

21

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

22

218-335

CAP,37 Degree, 1 1/16"-12

Hex

1шт.

23

A148749

HOSE

ground drive pump to ground drive motor, 660 mm (26 inch) long

2шт.

24

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Incl. Ref. 25

3шт.

25

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

26

217-362

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-5/16" - 12 Male ORB

ELBOW 90 degree, 3/4 stem end x 1-5/16-12 inch adj. O-ring, Includes: Ref. 27

1шт.

27

237-6016

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

1шт.

28

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

29

H383158

HOSE,0.75" ID x 17.72", SAE 30R2

Ground Drive Pump to Reservoir,Cut from D55911 Bulk Hose, See Below

1шт.

30

D64786

FITTING

TEE, special

1шт.

31

H428193

VALVE, CHECK

1шт.

32

123989A1

FLAP

BOOT hose protection, rubber, 300 mm (11-13/16 inch) long

2шт.

33

H374678

FLAP

BOOT hose protection, rubber, 180 mm (7 inch) long

1шт.

H434280

HOSE

800 mm (31-1/2 inch) long, use to make item 3

1шт.

D55911

HOSE

bulk, 19 mm (3/4) ID x 71 1 mm (28 inch) long, use to make item 29

1шт.
