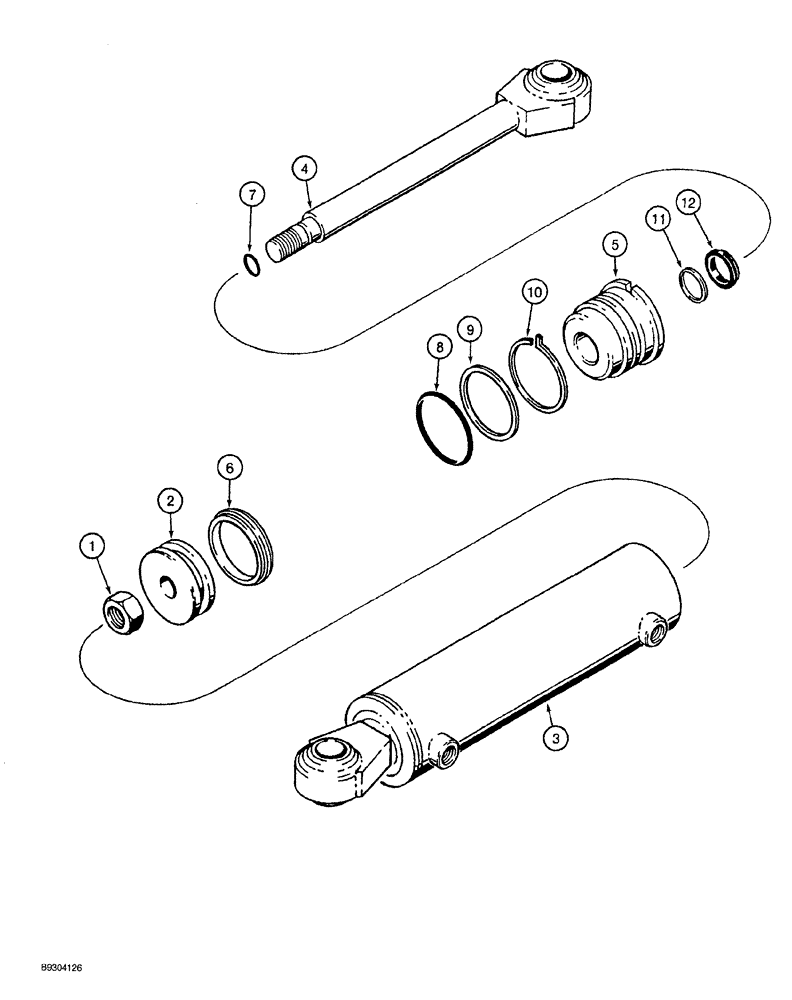

Запчасти Case MAXI-SNEAKER (05-012) - STEERING CYLINDER ASSEMBLY (05) - STEERING

H674930

STEERING CYLINDER

ASSEMBLY steering, 60 (2-3/8) ID x 127 mm (5 inch) stroke, Includes: Ref. 1 - 12

1шт.

1

230-46112

LOCK NUT,3/4"-16, GA

hex, self locking, 3/4 inch NF

1шт.

2

H347757

PISTON

cylinder

1шт.

3

H636845

CYLINDER

TUBE

1шт.

4

H636852

PISTON ROD

25 mm (1 inch) diameter

1шт.

5

H347765

GLAND

cylinder

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL piston, outer

1шт.

Part of Seal Replacement Kit P/N H674942

1шт.

7

238-5016

O-RING,0.07" Thk x 0.614" ID, -16, Cl 5, 75 Duro

1шт.

Part of Seal Replacement Kit P/N H674942

1шт.

8

238-5224

O-RING,0.139" Thk x 1.734" ID, -224, Cl 5, 75 Duro

1шт.

Part of Seal Replacement Kit P/N H674942

1шт.

9

NSS

NOT SOLD SEPARAT

RING backup, gland O-ring

1шт.

Part of Seal Replacement Kit P/N H674942

1шт.

10

H207027

LOCK ASSY

WIRE gland

1шт.

Part of Seal Replacement Kit P/N H674942

1шт.

11

NSS

NOT SOLD SEPARAT

SEAL rod

1шт.

Part of Seal Replacement Kit P/N H674942

1шт.

12

H755793

RETAINER

WIPER piston rod

1шт.

Part of Seal Replacement Kit P/N H674942

1шт.

H674942

GASKET KIT

seal replacement, Includes: Ref. 6 - 12

1шт.
