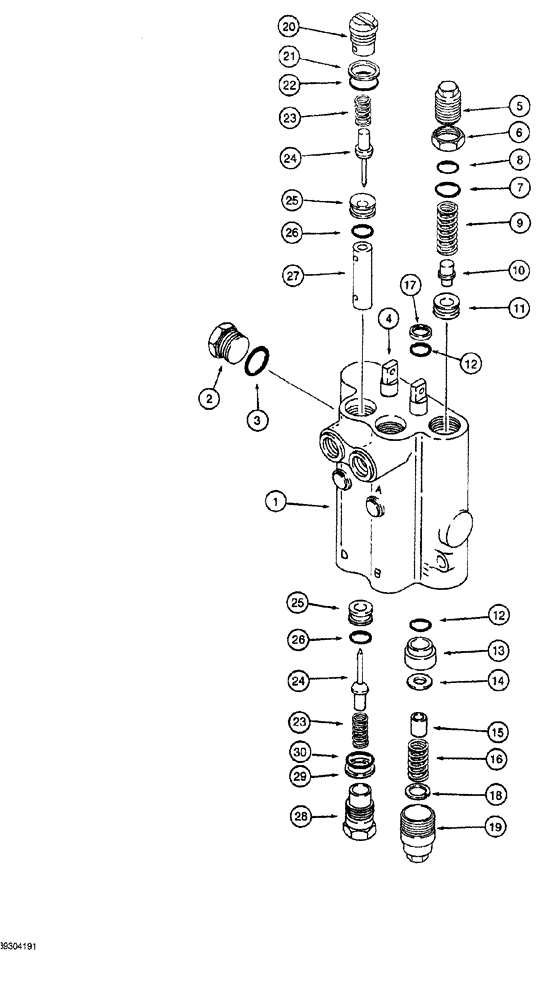

Запчасти Case MAXI-SNEAKER (05-010) - STEERING AND ATTACHMENT LIFT CONTROL VALVE (05) - STEERING

H674732

SLIDE VALVE

ASSEMBLY control, steering and attachment lift, Includes: Ref. 1 - 30

1шт.

1

NSS

NOT SOLD SEPARAT

BODY valve

1шт.

N9862

PLUG

ASSEMBLY hex, valve body, 3/4 inch NF, Includes: Ref. 2 and 3

1шт.

2

NSS

NOT SOLD SEPARAT

PLUG valve body, special

1шт.

3

238-5114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

1шт.

4

NSS

NOT SOLD SEPARAT

SPOOL control valve, steering

2шт.

1971406C1

CAP

PLUG ASSEMBLY, main relief valve, Replaces: H673106, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

PLUG relief valve

1шт.

6

218-1278

BHD LOCK NUT,Blkhd, 3/4"-16

hex, lock, 3/4-16 inch NF

1шт.

7

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

8

F12267

WASHER

SHIM relief valve, 0.3 mm (.010 inch) thick

1шт.

8

H746149

SHIM,.015" Thk

Relief valve (0.4 mm)

1шт.

8

H220798

SHIM,.035" Thk

Relief valve (0.9 mm)

1шт.

9

H435565

SPRING

valve

1шт.

10

H83931

VALVE POPPET

Replaces: F37837

1шт.

11

NSS

NOT SOLD SEPARAT

SEAT relief valve

1шт.

12

H438995

O-RING

special

4шт.

13

674775R1

BUSHING

spool

2шт.

14

N9256

WASHER

flat, special

2шт.

15

H438994

SPACER

2шт.

16

674490R1

SPRING

centering

2шт.

17

H435703

SEAL

wiper, spool

2шт.

18

N9257

RING, SNAP

RING SNAP retaining

2шт.

19

N9253

CAP

valve body

2шт.

H636977

PLUG

ASSEMBLY, load check, seat retaining, Includes: Ref. 20 - 22

2шт.

20

NSS

NOT SOLD SEPARAT

PLUG seat retaining

1шт.

21

G32626

RING

backup, plug

1шт.

22

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.

23

H364182

SPRING

load check, poppet

4шт.

24

F88777

PLUNGER

POPPET

4шт.

H636951

SEAT

ASSEMBLY poppet, Includes: Ref. 25 and 26

4шт.

25

NSS

NOT SOLD SEPARAT

SEAT poppet

1шт.

26

238-5014

O-RING,0.07" Thk x 0.489" ID, -14, Cl 5, 75 Duro

1шт.

27

N14695

PLUNGER

valve

2шт.

H636969

FITTING

PLUG ASSEMBLY, load check, lower port, Includes: Ref. 28 - 30

2шт.

28

NSS

NOT SOLD SEPARAT

PLUG, lower port

1шт.

29

G32626

RING

backup, plug

1шт.

30

238-6114

O-RING,0.103" Thk x 0.612" ID, -114, Cl 6, 90 Duro

1шт.
