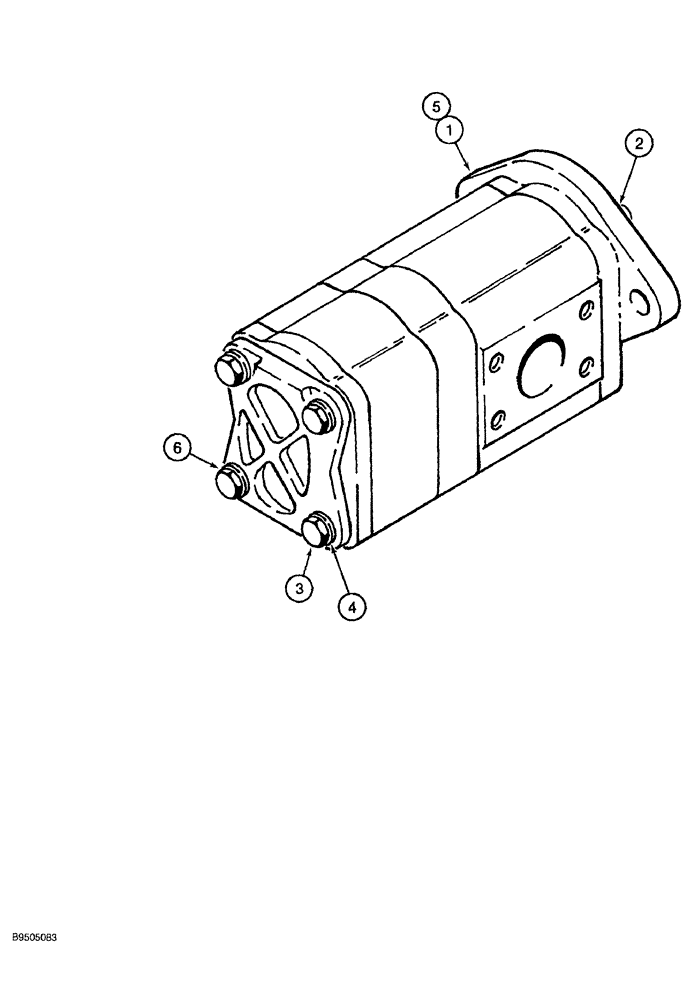

Запчасти Case MAXI-SNEAKER (05-009A) - DUAL PUMP ASSEMBLIES, P.I.N. JAF0136787 AND AFTER (05) - STEERING

109169A1

PUMP

ASSEMBLY dual, no longer available, order 188947A1 pump assembly, Includes: Ref. 1 - 4

1шт.

Pump assembly can be identified by Sundstrand part number 34925 stamped on pump

1шт.

1

NSS

NOT SOLD SEPARAT

PUMP dual, order 188947A1 pump assembly, see below

1шт.

2

NSS

NOT SOLD SEPARAT

SEAL shaft

1шт.

3

131125A1

BOLT

special

4шт.

4

492-11038

LOCK WASHER,3/8"

4шт.

129487A1

SEAL PACKAGE

KIT replacement, dual pump, Includes all seals and O-rings used in 109169A1 dual pump assembly

1шт.

188947A1

PUMP

ASSEMBLY dual, Replaces: 109169A1 pump, see note below for pump identification information, Includes: Ref. 5 and 6

1шт.

Pump assembly can be identified by Sundstrand part number 34925 stamped on pump

1шт.

5

NSS

NOT SOLD SEPARAT

PUMP dual, order 188947A1 pump assembly

1шт.

6

222368A1

BOLT

special, includes washer

4шт.

138161A1

KIT

replacement, dual pump seals, includes all seals and O-rings used in 188947A1 dual pump assembly

1шт.
