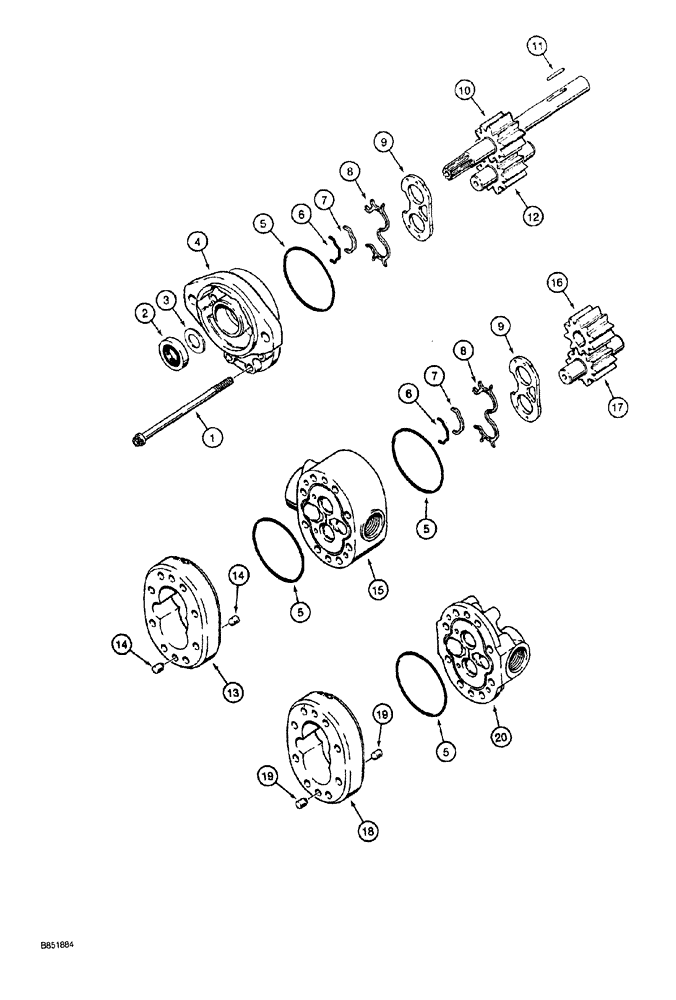

Запчасти Case MAXI-SNEAKER (05-008) - DUAL PUMP ASSEMBLY, H669184, PRIOR TO P.I.N. JAF0136787 (05) - STEERING

H669184

PUMP

ASSEMBLY dual, Includes: Ref. 1 - 20, Serial Range: -JAF0136787

1шт.

1

166-39

SPARE PART 12 point flange, 5/16 NC x 5-1/4 inch, grade 8

8шт.

2

H83733

SEAL

shaft

1шт.

Part of Seal Replacement Kit P/N N13450

1шт.

3

N13135

WASHER

shaft seal, special

1шт.

4

H435648

COVER

pump, drive shaft end, Replaces: N8932

1шт.

5

238-5041

O-RING,0.07" Thk x 2.989" ID, -41, Cl 5, 75 Duro

Pump body

4шт.

Part of Seal Replacement Kit P/N N13450

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL molded

2шт.

Part of Seal Replacement Kit P/N N13450

1шт.

7

NSS

NOT SOLD SEPARAT

SEAL bearing

2шт.

Part of Seal Replacement Kit P/N N13450

1шт.

8

NSS

NOT SOLD SEPARAT

GASKET wear plate

2шт.

Part of Seal Replacement Kit P/N N13450

1шт.

9

NSS

NOT SOLD SEPARAT

PLATE wear, pump housing

2шт.

Part of Seal Replacement Kit P/N N13450

1шт.

10

N13656

GEAR

drive, with shaft, pump

1шт.

11

N13654

KEY

round, drive gear shaft

1шт.

12

N13444

GEAR

with shaft, driven, pump, drive shaft end

1шт.

N8887

BODY

HOUSING ASSEMBLY, gear, pump, drive shaft end, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

HOUSING gear, drive shaft end

1шт.

14

71120

VALVE

PIN dowel, drive shaft end gear housing

4шт.

15

H435649

PLATE

BODY pump, Replaces: N13445

1шт.

16

N13655

GEAR

drive, slip fit, rear

1шт.

17

N13658

SPROCKET ASSY.

GEAR idler, pump, rear

1шт.

N13657

BODY

HOUSING ASSEMBLY gear, port end, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING gear, port end

1шт.

19

71120

VALVE

PIN dowel, port end gear housing

4шт.

20

H435647

PLATE

COVER pump, port end, Replaces: N13442

1шт.

N13450

SEAL KIT

KIT replacement, Includes: Ref. 2, 5 thru 9

1шт.
