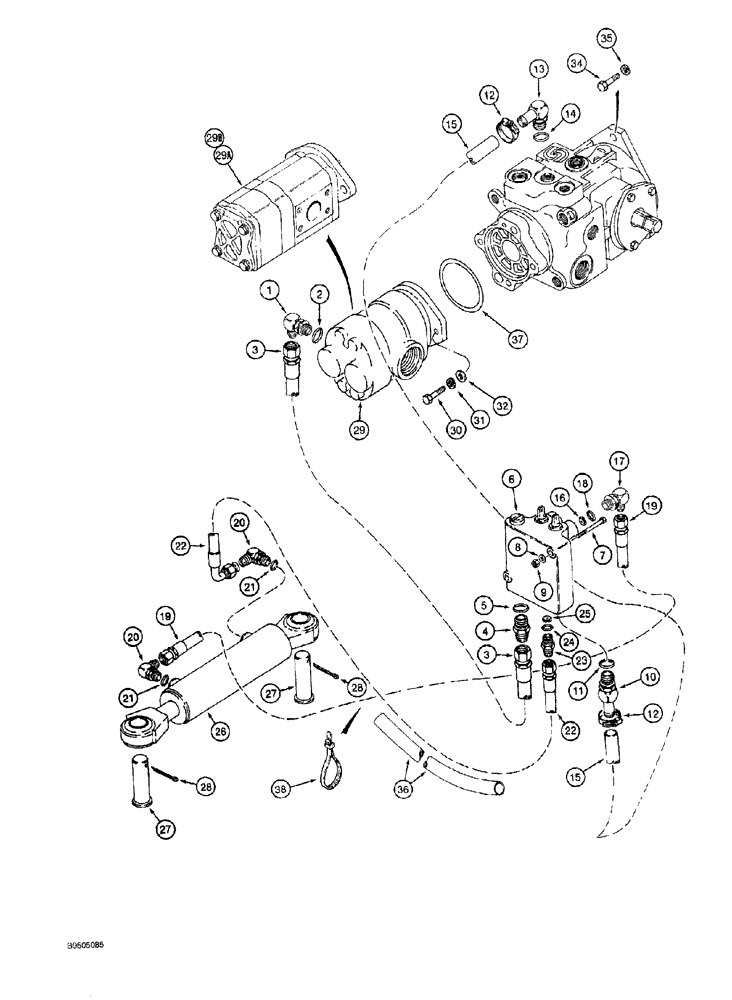

Запчасти Case MAXI-SNEAKER (05-006) - STEERING HYDRAULIC CIRCUIT (05) - STEERING

1

218-5121

ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 7/8" - 14 Male ORB

Includes Ref. 2

1шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

1шт.

3

H174672

HYDRAULIC HOSE,9.52 mm ID x 609.60 mm, SAE 100R1

Pump to Steering Control Valve

1шт.

4

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER straight, 3/4-16 inch flare x O-ring boss, Incl. Ref 5

1шт.

5

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

6

H674732

SLIDE VALVE

ASSEMBLY control, steering and attachment lift, parts list Figure 05-010

1шт.

7

413-432

BOLT,Hex, 1/4" - 20 x 2", Gr 5

2шт.

8

H426767

WASHER

flat, hardened, 9/32 x 5/8 x 3/64 inch, flat, hardened, 1/4 inch

2шт.

9

232-4114

LOCK NUT,1/4"-20, GC

2шт.

10

217-396

FITTING,3/4" Hose Barb x 3/4" - 16 Male ORB

ADAPTER straight, 3/4 stem end x 3/4-16 inch adj, O-ring, Includes: Ref. 11

1шт.

11

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

1шт.

12

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

2шт.

13

217-351

FITTING,90 Degree Elbow, 3/4" Hose Barb x 1-1/16" - 12 Male ORB

ELBOW, Incl. Ref. 14

1шт.

14

237-6012

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

1шт.

15

H434280

HOSE

return, 800 mm (31-1/2 inch) long, steering control valve to dual pump

1шт.

16

H759084

ORIFICE

restrictor, 0.0330 inch, steering cylinder rod end circuit

1шт.

17

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 18

1шт.

19

H172965

HYDRAULIC HOSE,6.35 mm ID x 939.60 mm, SAE 100R1

Valve to Steering Cylinder, Rod End

1шт.

20

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

90 degree, 9/16-18 inch flare x adj. O-ring boss, Includes: Ref. 21

2шт.

22

H249029

HOSE ASSY.

737 mm (29 inch) long, valve to steering cylinder, closed end

1шт.

23

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

Incl. Ref. 24

1шт.

25

H757815

PORT

ORIFICE restrictor, 0.0380 inch, steering cylinder closed end circuit

1шт.

26

H674930

STEERING CYLINDER

ASSEMBLY, 60 (2-3/8) ID x 127 mm (5 inch) stroke, parts list Figure 05-012

1шт.

27

H67272

PIN,25.3mm OD x 84.93mm L

PIN, 1 x 2-25/32 inch

2шт.

28

432-1628

COTTER PIN,1/4" x 1 3/4"

2шт.

29

H669184

PUMP

ASSEMBLY dual, parts list Figure 05-008, Serial Range: -JAF0136787

1шт.

29a

109169A1

PUMP

ASSEMBLY dual, parts list Figure 05-009A, Serial Range: JAF0136787-JAF0167168

1шт.

29b

188947A1

PUMP

ASSEMBLY dual, parts list Figure 05-009A, Start Serial: JAF0167169

1шт.

30

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

31

492-11038

LOCK WASHER,3/8"

2шт.

32

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

33

108721A1

PUMP

ASSEMBLY ground drive, parts list Figures 06-006 and 06-008

1шт.

34

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

2шт.

35

80679

LOCK WASHER,1/20.507 CST ZND

2шт.

36

D131789

SLEEVE

hose retaining, protective

1шт.

37

238-5152

O-RING,0.103" Thk x 3.237" ID, -152, Cl 5, 75 Duro

1шт.

38

L18337

CABLE TIE,9.95"-12.1" lg

CABLE STRAP tie, nylon, retaining, 15 inch

2шт.

18

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

21

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.

24

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

1шт.
