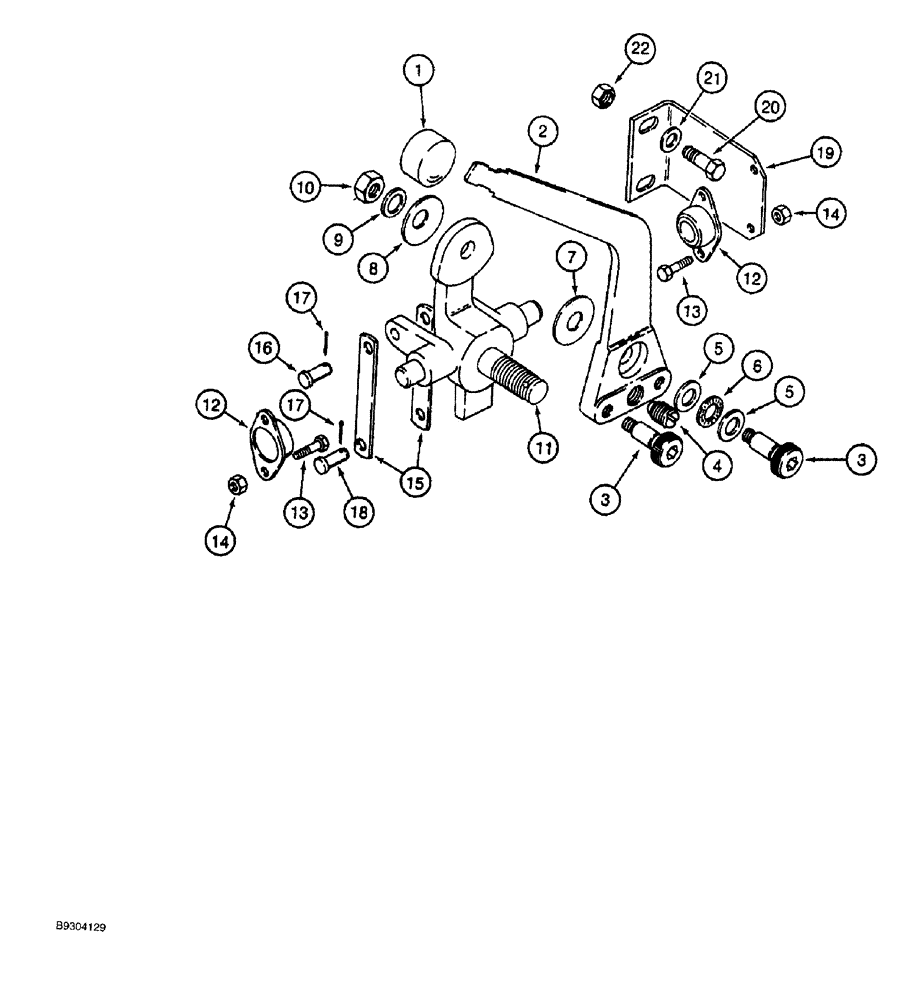

Запчасти Case MAXI-SNEAKER (05-004) - DIRECTIONAL CONTROLS, CREEP CONTROL (05) - STEERING

1

A177435

BALL KNOB

lever, creep control

1шт.

2

H672327

HANDLE

control, creep

1шт.

3

H404822

BOLT

shoulder, special

3шт.

4

H404731

GUIDE

lever tension, special, centering

1шт.

5

H405035

BEARING WASHER

WASHER thrust, creep control handle

2шт.

6

H405043

BEARING WASHER,12.75mm ID x 23.55mm OD x 1.98mm Thk

thrust, creep control handle

1шт.

7

1342383C1

FRICTION WASHER

friction, creep control handle, Replaces: H429894

1шт.

8

R14771

WASHER

SPRING Belleville, drive control link

1шт.

9

496-21041

WASHER,13/32" x 13/16" x .089", HDN

1шт.

10

230-4216

LOCK NUT,3/8"-16, GA

1шт.

11

H435855

PIVOT

BELLCRANK control rods

1шт.

12

H755785

FLANGED BEARING,15.88mm ID

flange, drive control link

2шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

4шт.

14

232-4114

LOCK NUT,1/4"-20, GC

4шт.

15

H423053

LINK

creep control

2шт.

16

H169318

CLEVIS COUPLING,6.35mm OD x 22.62mm L

PIN, special, 1/4 x 51/64 inch

1шт.

17

432-48

COTTER PIN,1/16" x 1/2"

2шт.

18

H44529

AXLE PIN

clevis

1шт.

19

H426163

ANGLE

BRACKET link mounting

1шт.

20

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

21

495-11034

WASHER,5/16", SAE

(flat, 11/32 x 11/16 x 1/16")

2шт.

22

232-4115

LOCK NUT,5/16"-18, GC

2шт.
