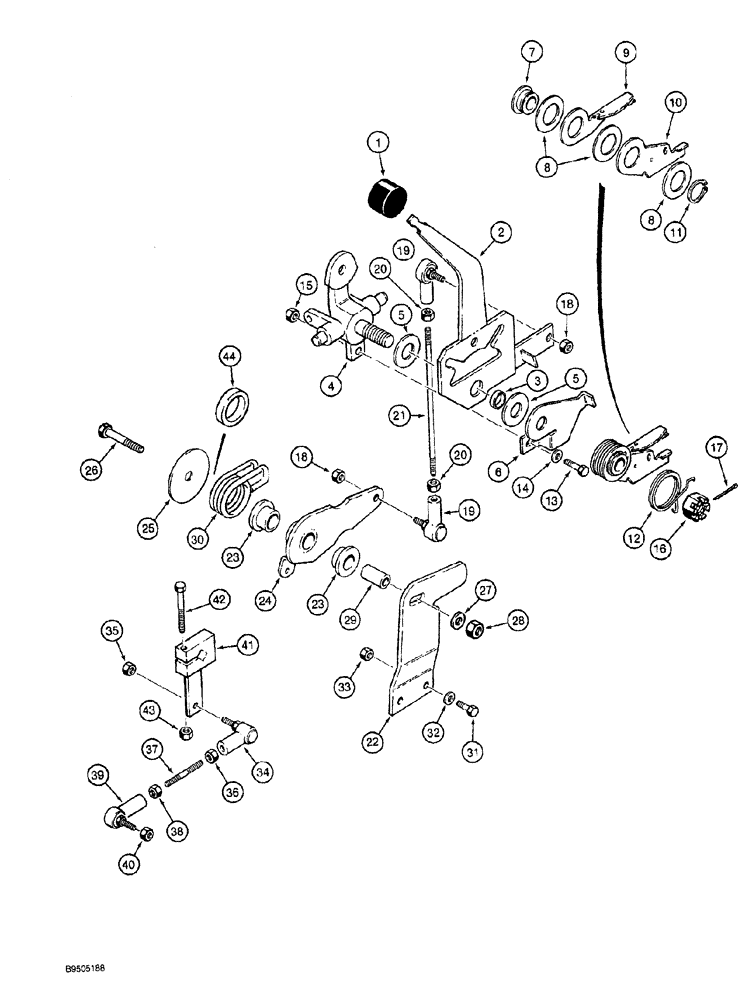

Запчасти Case MAXI-SNEAKER (05-002) - DIRECTIONAL CONTROLS, STEERING, FORWARD AND REVERSE (05) - STEERING

1

A177435

BALL KNOB

lever, directional control handle

1шт.

2

H673413

HANDLE

directional control, Includes: Ref. 3

1шт.

3

H433184

BEARING

BUSHING, directional control handle

1шт.

4

H435855

PIVOT

BELLCRANK control rods

1шт.

5

H433170

WASHER

flat, nylon, directional control handle

2шт.

6

H436230

LARGE PLATE

PLATE, LARGE centering

1шт.

H673263

MOUNTING PARTS

ASSEMBLY switch, neutral start, Includes: Ref. 7 - 11

1шт.

7

131050A1

HUB

switch contact plate, bracket, Replaces: H435800

1шт.

8

H257915

SHIM,0.813mm Thk

SHIM, (.031"), Bracket 0.813mm Thk

3шт.

9

H436226

CONTACT PLATE

PLATE, LARGE switch contact

1шт.

10

H436227

PLATE

switch mounting

1шт.

11

103-11125

SNAP RING,#125, Ext

Replaces F62020

1шт.

12

H436231

SPRING

switch contact plate, mount assembly

1шт.

13

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

14

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

1шт.

15

232-4115

LOCK NUT,5/16"-18, GC

1шт.

16

425-1212

SLOTTED NUT,3/4"-10, G5

hex, slotted, 3/4 inch NC

1шт.

17

432-1224

COTTER PIN,3/16" x 1-1/2"

1шт.

18

232-4615

LOCK NUT,5/16"-24, GC

2шт.

19

H289652

BALL JOINT,5/16" - 24 x 1-3/8" L

JOINT, female, 5/16 inch NF

2шт.

20

425-155

JAM NUT,Jam, 5/16"-24, G5

Hex

2шт.

21

110874A1

STEM

ROD control, directional

1шт.

22

131966A2

PLATE

centering bracket

1шт.

23

D128616

BUSHING

plastic

2шт.

24

110795A1

PIVOT

centering

1шт.

25

131967A1

WASHER

flat, special

1шт.

26

413-840

BOLT,Hex, 1/2" - 13 x 2-1/2", Gr 5

hex, 1/2 NC x 2-1/2 inch

1шт.

27

495-11053

WASHER,1/2", SAE

(17/32" x 1-1/16" x 3/32")

1шт.

28

232-4118

NUT,1/2"-13, GC

1шт.

29

H435694

SPACER

centering pivot, 19 x 22 x 36.5 mm

1шт.

30

H436303

SPRING

centering

1шт.

31

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

32

496-21041

WASHER,13/32" x 13/16" x .089", HDN

2шт.

33

232-4116

NUT,3/8"-16, GC

2шт.

34

R47940

BALL JOINT

3/8 inch NF; right hand thread

1шт.

35

232-4616

LOCK NUT,3/8"-24, GC

1шт.

36

425-156

JAM NUT,Jam, 3/8"-24, G5

RH thread

1шт.

37

143475A1

STEM

ROD control, plate to pump control lever

1шт.

38

129-289

JAM NUT,Jam, 3/8"-24, G5, LH

1шт.

39

139830A1

BALL JOINT

left hand thread, 3/8 inch NF

1шт.

40

232-4616

LOCK NUT,3/8"-24, GC

1шт.

41

110866A1

LEVER

control, pump

1шт.

42

413-532

BOLT,Hex, 5/16" - 18 x 2", Gr 5

1шт.

43

232-4115

LOCK NUT,5/16"-18, GC

1шт.

44

175086A1

COLLAR

spacer, 13 x 35 x 51 mm

1шт.
