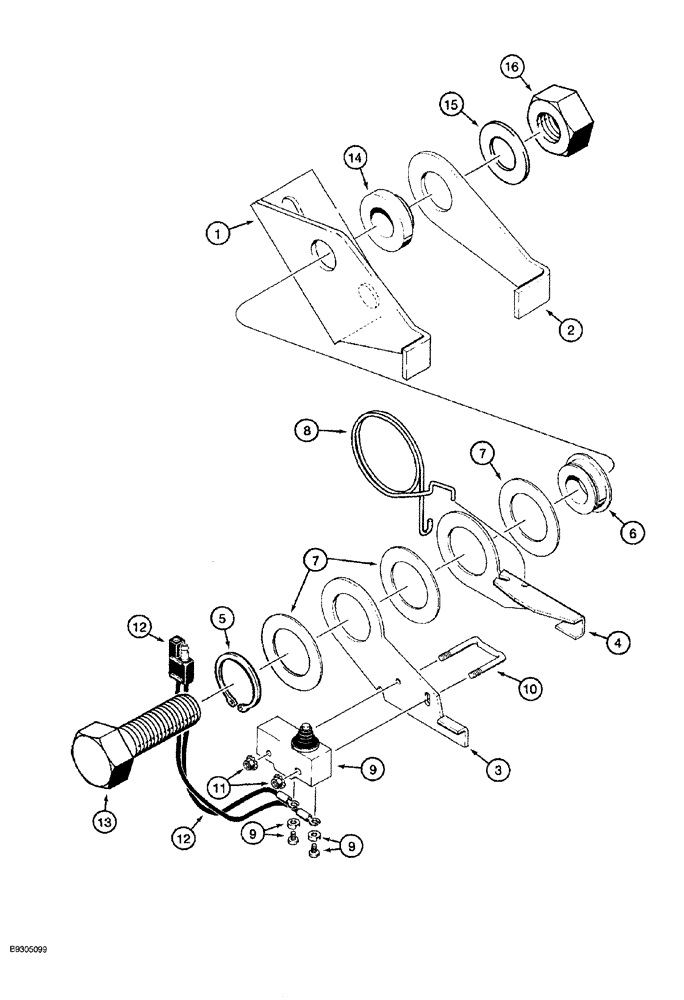

Запчасти Case MAXI-SNEAKER (04-018) - NEUTRAL START SWITCH ASSEMBLY, 106402A1, TRENCHER CONTROL VALVE, P.I.N. JAF0166909 AND AFTER (04) - ELECTRICAL SYSTEMS

106402A1

SWITCH

ASSEMBLY neutral start, Includes: Ref. 1 - 16

1шт.

1

106403A1

LARGE PLATE

PLATE, LARGE BRACKET mounting, switch

1шт.

2

H438465

LARGE PLATE

PLATE, LARGE actuator

1шт.

H673263

MOUNTING PARTS

ASSEMBLY switch, Includes: Ref. 3 - 7

1шт.

3

131052A1

PLATE

switch mounting

1шт.

4

131051A1

CONTACT PLATE

PLATE, LARGE switch contact

1шт.

5

103-11125

SNAP RING,#125, Ext

1шт.

6

131050A1

HUB

switch contact plate

1шт.

7

H257915

SHIM,0.813mm Thk

(.031")

3шт.

8

H436231

SPRING

switch contact plate

1шт.

9

H435820

SWITCH

neutral start, includes terminal hardware

1шт.

10

H435814

U-BOLT

switch mounting

1шт.

11

193-1003

NUT,Keps, w/LW,#6-32

External tooth

2шт.

12

H436183

CONNECTOR, ELEC

CONNECTOR WIRE, Serial Range: switch-harness

1шт.

13

413-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

1шт.

14

H435881

HUB

SPACER actuator plate

1шт.

15

495-11081

WASHER,3/4", SAE

1шт.

16

232-41112

NUT,3/4"-10, GC

1шт.
