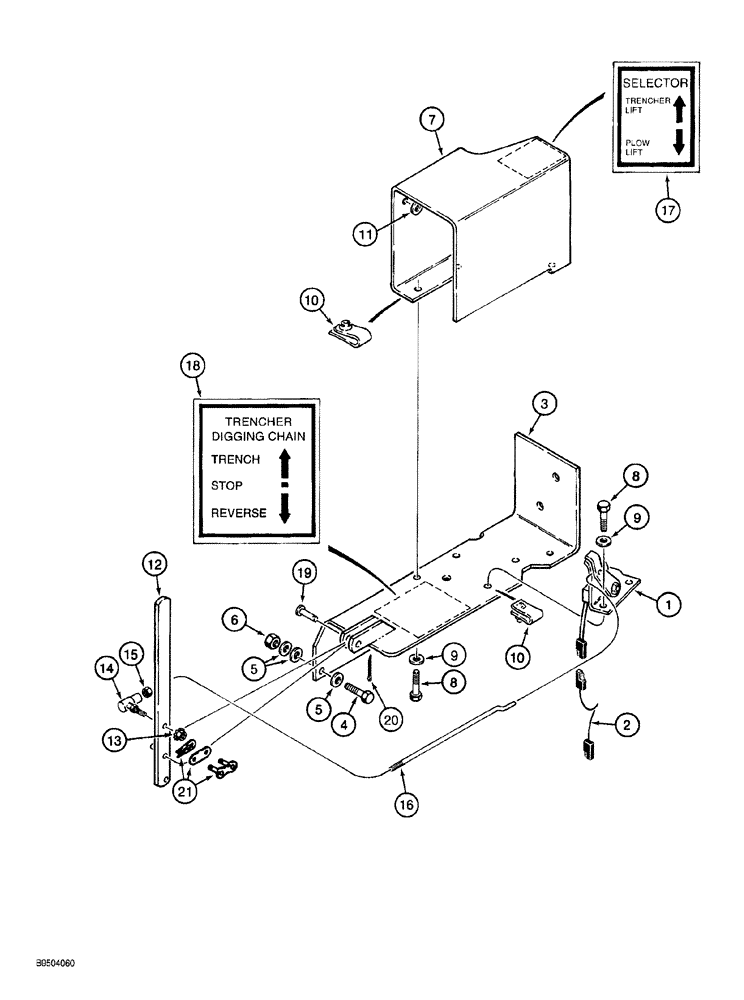

Запчасти Case MAXI-SNEAKER (04-016) - TRENCHER NEUTRAL START SWITCH, HARNESS, MOUNTING AND CONTROLS, P.I.N. JAF0166909 AND AFTER (04) - ELECTRICAL SYSTEMS

1

106402A1

SWITCH

ASSEMBLY neutral start, parts list Figure 04-018

1шт.

2

179583A1

HARNESS

switch, trencher neutral start, connects to main wiring harness, see Figure 04-012 for main wiring harness

1шт.

3

179579A1

SUPPORT

switch and valve mounting, see Figure 08-010 for valve mounting and hardware

1шт.

4

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

2шт.

5

495-11041

WASHER,0.406" ID x 0.812" OD x 0.065" W

Flat, (13/32 x 13/16 x 1/16")

6шт.

6

232-4116

NUT,3/8"-16, GC

2шт.

7

179582A1

COVER

switch, neutral start

1шт.

8

413-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

hex, 5/16 NC x 1-1/4 inch

5шт.

9

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

5шт.

10

H346650

NUT

U type, 5/16 inch NC

5шт.

11

495-21038

WASHER,5/16"

(flat, 3/8 x 7/8 x 3/32")

1шт.

12

179581A1

LEVER

control, trencher control valve and neutral start switch

1шт.

13

193-1000

NUT,Keps, w/LW,#10-32

hex, with external tooth lock washer, No. 10 NF

1шт.

14

L12437

BALL JOINT,#10 - 32 x 7/8"

1шт.

15

225-14210

NUT,#10-32

1шт.

16

179590A1

STEM

ROD control, neutral start switch

1шт.

17

H419119

ADHESIVE

DECAL Selector, Trencher Lift, Plow Lift, see Figure 09-066 for decals

1шт.

18

H419101

ADHESIVE

DECAL Trencher Digging Chain, Trench, Stop, Reverse, see Figure 09-066 for decals

1шт.

19

H35279

AXLE PIN,4.72mm OD x 23.76mm L

clevis, 3/16 x 57/64 inch

1шт.

20

432-48

COTTER PIN,1/16" x 1/2"

1шт.

21

241-1315

LINK, CONNECTING

single pitch, No. 50, 5/8 inch pitch

1шт.
