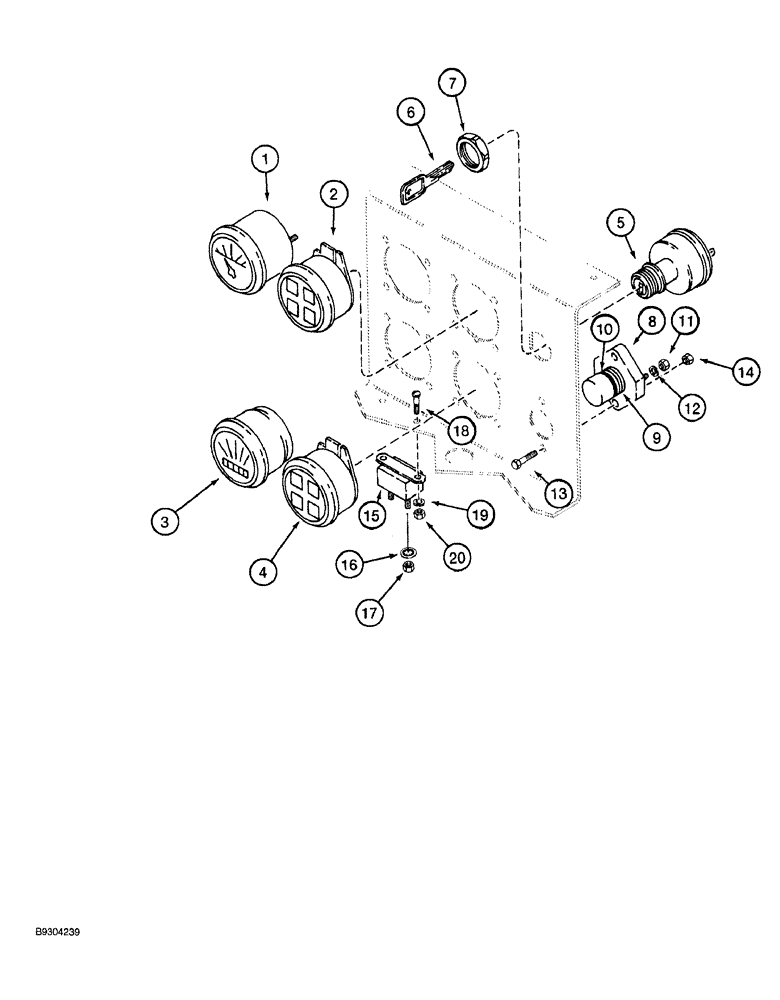

Запчасти Case MAXI-SNEAKER (04-014) - INSTRUMENTS AND MOUNTING (04) - ELECTRICAL SYSTEMS

1

H437688

FUEL GAUGE

1шт.

2

H437690

CLUSTER

instrument, warning lamps, engine and alternator

1шт.

3

H437689

HOURMETER

engine

1шт.

4

H437691

CLUSTER

instrument, warning lamps, hydraulics and seat belt

1шт.

D134737

IGNITION SWITCH

SWITCH ASSEMBLY ignition, includes keys, Includes: Ref. 5 - 7

1шт.

5

NSS

NOT SOLD SEPARAT

SWITCH ignition

1шт.

6

A77313

SET OF 2 KEYS

ignition; Metal Without Padding

1шт.

7

A77314

NUT

hex, special, key switch mounting

1шт.

H35048

IGNITION SWITCH

ASSEMBLY glow plug, Includes: Ref. 8 - 10

1шт.

8

NSS

NOT SOLD SEPARAT

SWITCH heater

1шт.

9

NSS

NOT SOLD SEPARAT

SPRING heater switch

1шт.

10

NSS

NOT SOLD SEPARAT

O-RING switch

1шт.

11

425-115

NUT,5/16"-24, G5

2шт.

12

492-11031

LOCK WASHER,5/16"

2шт.

13

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

2шт.

14

232-4114

LOCK NUT,1/4"-20, GC

2шт.

15

L104328

BREAKER

circuit, 25 amperes

1шт.

16

493-41020

LOCK WASHER,Ext Tooth, #10

2шт.

17

225-14210

NUT,#10-32

2шт.

18

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

19

492-11010

LOCK WASHER,#10

2шт.

20

225-14110

NUT,#10-24

2шт.
