Запчасти Case MAXI-SNEAKER (04-012) - MAIN WIRING HARNESS AND CONNECTIONS, WITH SEAT INTERLOCK (04) - ELECTRICAL SYSTEMS

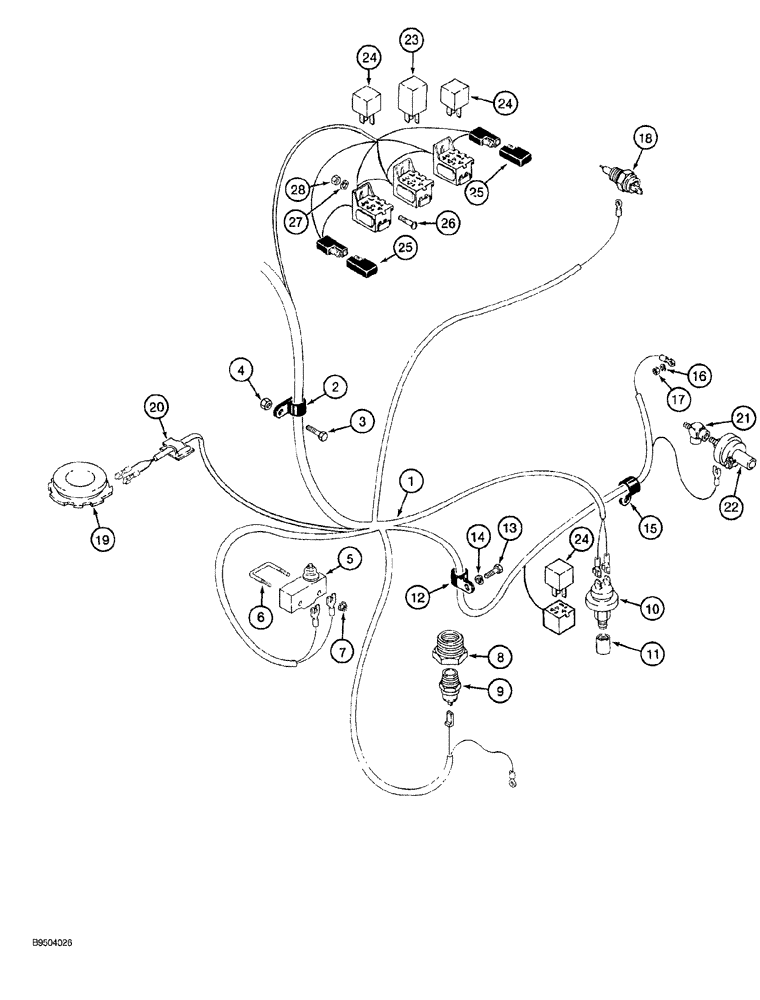

Схема запчастей Case MAXI-SNEAKER - (04-012) - MAIN WIRING HARNESS AND CONNECTIONS, WITH SEAT INTERLOCK (04) - ELECTRICAL SYSTEMS
23
25
18
20
5
2
8
22
27
3
25
28
1
9
4
24
10
19
26
12
24
17
15
21
6
16
11
24
7
13
14

Артикул

Название

Примечание

Количество

1

139694A1

HARNESS

main wiring

1шт.

2

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P type, Wiring harness

1шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

4

232-4116

NUT,3/8"-16, GC

1шт.

5

H435820

SWITCH

neutral start, includes terminal hardware

1шт.

6

H435814

U-BOLT

switch mounting

1шт.

7

193-1003

NUT,Keps, w/LW,#6-32

External tooth

2шт.

8

221-607

REDUCER,Hex, 1 1/4" x 1/2" NPT

REDUCER pipe, 1-1/14 male x 1/2 inch female

1шт.

9

H81935

SENDER UNIT

SENDER temperature, hydraulic oil

1шт.

10

1983233C1

RESTRICTION SWITCH

SWITCH restriction, air cleaner

1шт.

11

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

12

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P type, Harness

1шт.

13

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

14

892-11008

LOCK WASHER,8mm ID

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P type, Harness

1шт.

16

892-11006

LOCK WASHER,M6

1шт.

17

825-1406

NUT,M6, Cl 8

1шт.

18

123632A1

TEMPERATURE SENDER

water temperature

1шт.

19

175875A1

SWITCH

seat interlock

1шт.

20

H439303

CLIP

harness retaining, self adhesive

1шт.

21

194291A1

TEE

special

1шт.

22

H139634

SWITCH

hourmeter

1шт.

23

224787A1

RELAY

time delay

1шт.

24

D128310

RELAY

30 ampere

3шт.

25

L71879

DIODE ELEMENT,400V, 3A

harness

2шт.

26

470-11012

SCREW,Pan HD, #10 - 24 x 3/4"

2шт.

27

492-11010

LOCK WASHER,#10

2шт.

28

225-14110

NUT,#10-24

2шт.

Выбрано товаров: 28
