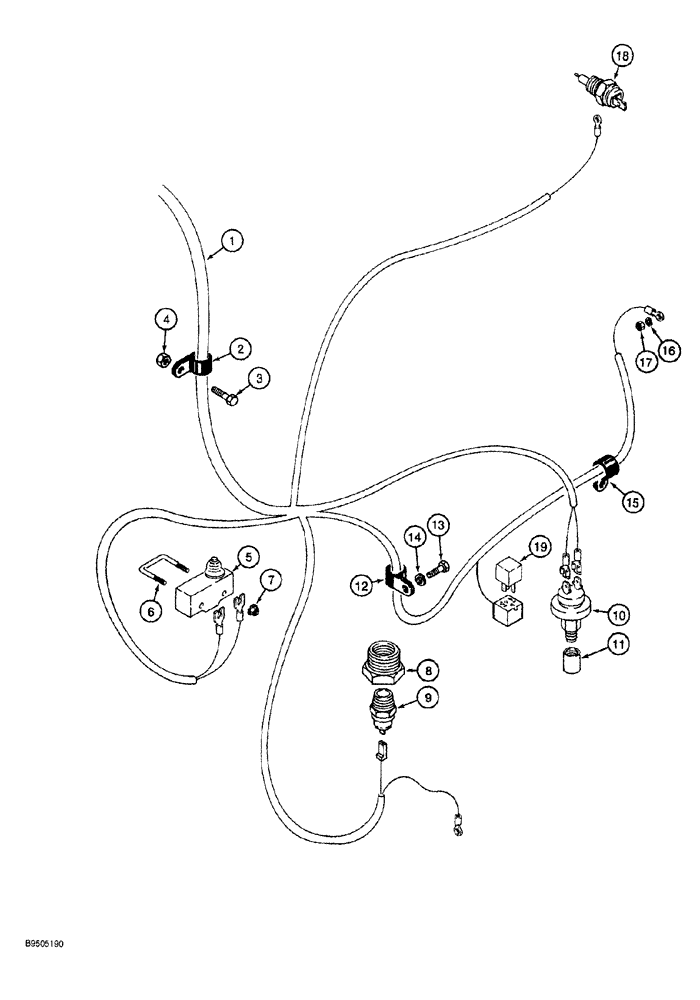

Запчасти Case MAXI-SNEAKER (04-010) - MAIN WIRING HARNESS AND CONNECTIONS, WITHOUT SEAT INTERLOCK (04) - ELECTRICAL SYSTEMS

1

111090A2

HARNESS

main wiring, Replaces: 111090A1

1шт.

2

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P type, Wiring harness

1шт.

3

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

4

232-4116

NUT,3/8"-16, GC

1шт.

5

H435820

SWITCH

neutral start, includes terminal hardware

1шт.

6

H435814

U-BOLT

switch mounting

1шт.

7

193-1003

NUT,Keps, w/LW,#6-32

External tooth

2шт.

8

221-607

REDUCER,Hex, 1 1/4" x 1/2" NPT

REDUCER pipe, 1-1/14 male x 1/2 inch female

1шт.

9

H81935

SENDER UNIT

SENDER temperature, hydraulic oil

1шт.

10

1983233C1

RESTRICTION SWITCH

SWITCH restriction, air cleaner

1шт.

11

221-1335

COUPLING,Pipe, 1/8" NPT

1шт.

12

515-23159

CLAMP,5/8", Insul, 3/8" Bolt

P type, Harness

1шт.

13

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

1шт.

14

892-11008

LOCK WASHER,8mm ID

1шт.

15

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P type, Harness

1шт.

16

892-11006

LOCK WASHER,M6

1шт.

17

825-1406

NUT,M6, Cl 8

1шт.

18

L50238

SWITCH

water temperature

1шт.

19

D128310

RELAY

30 ampere

1шт.
