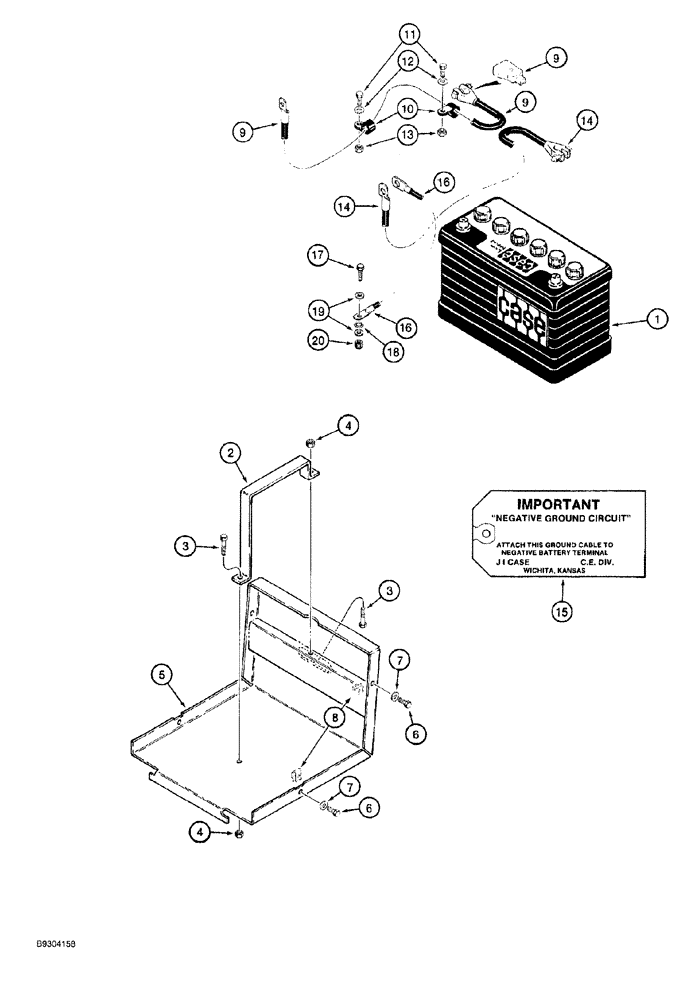

Запчасти Case MAXI-SNEAKER (04-008) - BATTERY, MOUNTING AND CABLES (04) - ELECTRICAL SYSTEMS

1

BMF31E

DRY BATTERY

12V

1шт.

2

H436777

SUPPORT

battery hold down

1шт.

3

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

2шт.

4

232-4116

NUT,3/8"-16, GC

2шт.

5

H673382

SUPPORT

TRAY battery

1шт.

6

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

4шт.

7

496-21041

WASHER,13/32" x 13/16" x .089", HDN

4шт.

8

131-634

SPRING NUT,J, Ret, 3/8"-16

J type, 3/8 inch NC

4шт.

9

D136982

CABLE

battery, positive

1шт.

10

515-23127

CLAMP,1/2", Insul, 3/8" Bolt

P type, Cable

2шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

2шт.

12

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

2шт.

13

232-4115

LOCK NUT,5/16"-18, GC

2шт.

14

H106096

CABLE PULLING GRIP

battery, negative

1шт.

15

H198457

TAG

important, negative ground circuit

1шт.

16

H256990

CABLE PULLING GRIP

ground

1шт.

17

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

1шт.

18

493-41033

LOCK WASHER,0.33" ID x 0.61" OD x 0.03" Thk

1шт.

19

496-11034

WASHER,11/32" x 11/16" x 1/16", HDN

1шт.

20

232-4115

LOCK NUT,5/16"-18, GC

1шт.
