(04-004) - STARTER ASSEMBLY, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE

Запчасти Case MAXI-SNEAKER (04-004) - STARTER ASSEMBLY, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (04) - ELECTRICAL SYSTEMS

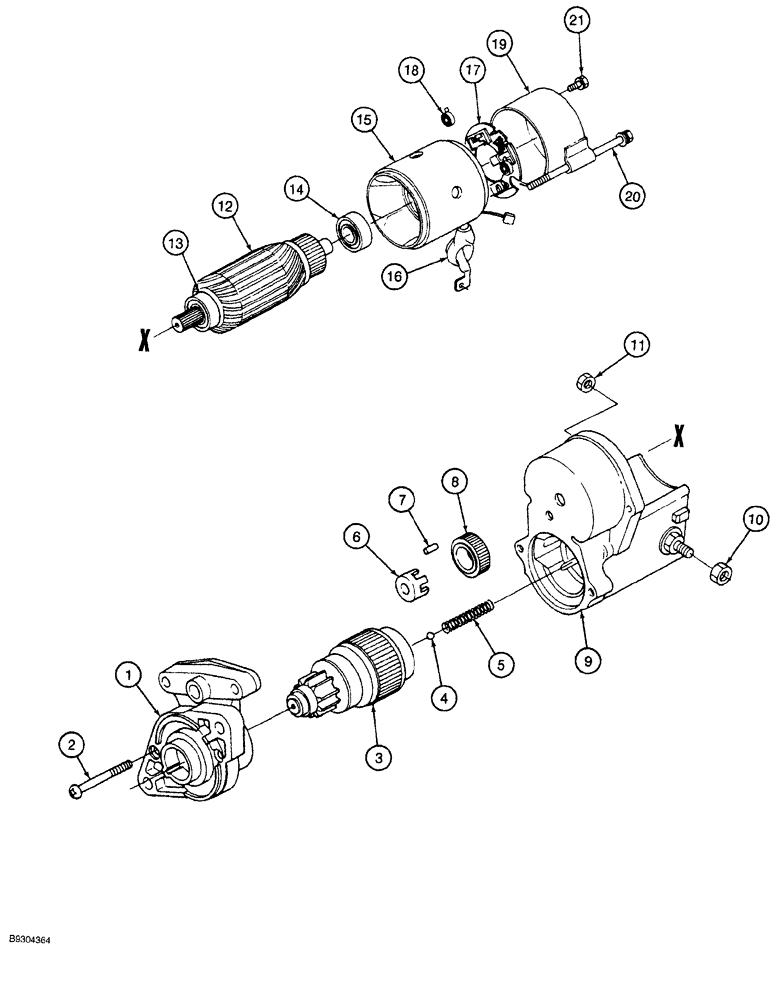

Схема запчастей Case MAXI-SNEAKER - (04-004) - STARTER ASSEMBLY, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (04) - ELECTRICAL SYSTEMS
18
17
16
4
5
3
20
21
2
7
11
19
14
15
9
8
10
6
12
13
1
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

125442A1

STARTER MOTOR

ASSEMBLY engine, see Figure 02-036 for mounting parts, Includes: Ref. 1 - 25

1шт.

125442A1R

REMAN-STARTER

Remanufactured STARTER 12 volt, OSGR - For N.A. Only

1шт.

125442A1C

CORE-STARTER

Return Number, STARTER 12 volt, OSGR - For N.A. Only

1шт.

1

129520A1

BOX

starter

1шт.

2

129533A1

SCREW

pan head, special

2шт.

3

129519A1

CONTROL

CLUTCH starter

1шт.

4

129531A1

BALL

steel, clutch

1шт.

5

129532A1

SPRING

detent

1шт.

6

129530A1

STOP

RETAINER gear

1шт.

7

129529A1

PIN

PIN

5шт.

8

129528A1

GEAR

GEAR starter

1шт.

9

129521A1

SWITCH ASSY

magnetic

1шт.

10

129536A1

SPECIAL NUT

hex, special

1шт.

11

129538A1

SPECIAL NUT

hex, special

1шт.

12

129516A1

ROTOR

ARMATURE starter

1шт.

13

129517A1

BALL BEARING

1шт.

14

129518A1

BALL BEARING

1шт.

15

129515A1

BODY

YOKE starter

1шт.

16

129537A1

COVER

COVER cable

1шт.

17

129522A1

BRUSH HOLDER

1шт.

18

129523A1

SPRING

brush

4шт.

19

129527A1

COVER

FRAME starter, end

1шт.

20

129534A1

BOLT

hex, special, flange

2шт.

21

129535A1

BOLT

hex, special

2шт.

22

129539A1

O-RING

not shown

2шт.

23

129541A1

ELECTRIC CABLE

stop solenoid, not shown

1шт.

24

129543A1

RIGID TUBE

drain, not shown

1шт.

25

129544A1

GUARD

cover, not shown

1шт.
