(04-002) - ALTERNATOR MOUNTING, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE

Запчасти Case MAXI-SNEAKER (04-002) - ALTERNATOR MOUNTING, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (04) - ELECTRICAL SYSTEMS

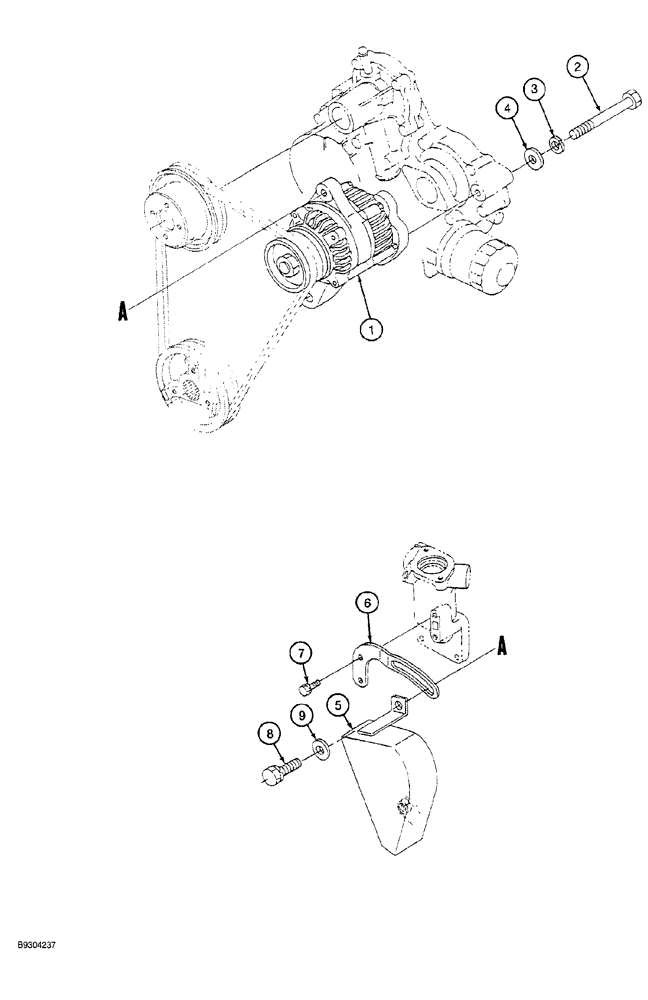

Схема запчастей Case MAXI-SNEAKER - (04-002) - ALTERNATOR MOUNTING, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (04) - ELECTRICAL SYSTEMS
3
4
1
8
2
5
6
7
9
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

125564A1

ALTERNATOR

ASSEMBLY, engine, parts list Figure 04-006

1шт.

2

126139A1

BOLT,Hex

hex, special

1шт.

3

202508A1

SCREW

WASHER spring

1шт.

4

126140A1

WASHER

flat

1шт.

5

125566A1

COVER

belt

1шт.

6

125565A1

BELT TENSIONER

BRACE alternator

1шт.

7

1959319C1

BOLT

hex, special, brace

1шт.

8

126393A1

CAPTIVE WASHER SCREW

BOLT hex, with lockwasher, cover mounting

1шт.

9

126142A1

WASHER

flat

1шт.
