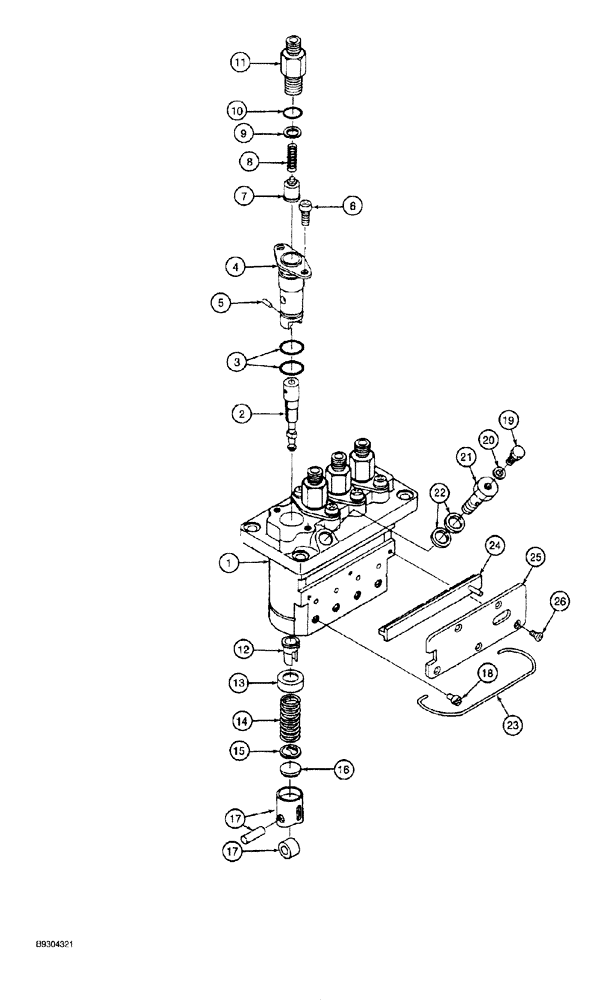

Запчасти Case MAXI-SNEAKER (03-020) - FUEL INJECTION PUMP ASSEMBLY, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (03) - FUEL SYSTEM

1

125479A1

PUMP

ASSEMBLY fuel injection, new, no longer available, order the following: 197421A1 fuel injection pump assembly (1) 125484A2 shim (1), 125485A2 shim (2), 197425A1 shim (1), and 197422A1 pump drive camshaft (1)

1шт.

Prior to engine S.N. 489916

1шт.

1

197421A1

FUEL INJECTION PUMP

ASSEMBLY fuel, Includes: Ref. 2 - 27

1шт.

Engine S.N. 489916 and after

1шт.

2

129385A1

PLUNGER

pump

4шт.

Prior to engine S.N. 489916

1шт.

2

197439A1

FUEL SYSTEM INJECTOR

pump

4шт.

Engine S.N. 489916 and after

1шт.

3

129395A1

O-RING

plunger

8шт.

4

129392A1

FLANGE

FLANGE sleeve

4шт.

5

129394A1

PIN

dowel

4шт.

6

129396A1

SCREW

flange

8шт.

7

129386A1

HYDRAULIC VALVE

delivery

4шт.

8

129387A1

SPRING

delivery valve

4шт.

9

129388A1

GASKET

delivery valve

4шт.

10

129390A1

O-RING

holder

4шт.

11

129389A1

FITTING

HOLDER delivery valve

4шт.

12

129407A1

SLEEVE

control

4шт.

13

129401A1

SEAT/SLOT

upper, spring

4шт.

14

129400A1

SPRING

plunger

4шт.

15

129402A1

SEAT/SLOT

spring

4шт.

16

129403A1

ADJUSTING PLATE

SHIM tappet

4шт.

17

129397A1

HEATED GLASS

injection pump

4шт.

18

129398A1

PIN

tappet guide

4шт.

19

129410A1

SCREW

special

1шт.

20

129411A1

GASKET

screw

1шт.

21

129408A1

HOLLOW SCREW

hollow

1шт.

Prior to engine S.N. 489916

1шт.

21

197442A1

SCREW

hollow

1шт.

Engine S.N. 489916 and after

1шт.

22

129409A1

GASKET

screw

2шт.

23

129399A1

PIN

PIN clamp

1шт.

24

129404A1

SUPPORT

control

1шт.

25

129405A1

LARGE PLATE

PLATE, LARGE control bracket

1шт.

Prior to engine S.N. 489916

1шт.

25

197441A1

PLATE

control bracket

1шт.

Engine S.N. 489916 and after

1шт.

26

129406A1

SCREW

special, plate

5шт.

27

197449A1

SPECIAL NUT

special, not shown

1шт.

Engine S.N. 489916 and after

1шт.
