(03-018) - IDLING APPARATUS, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE

Запчасти Case MAXI-SNEAKER (03-018) - IDLING APPARATUS, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (03) - FUEL SYSTEM

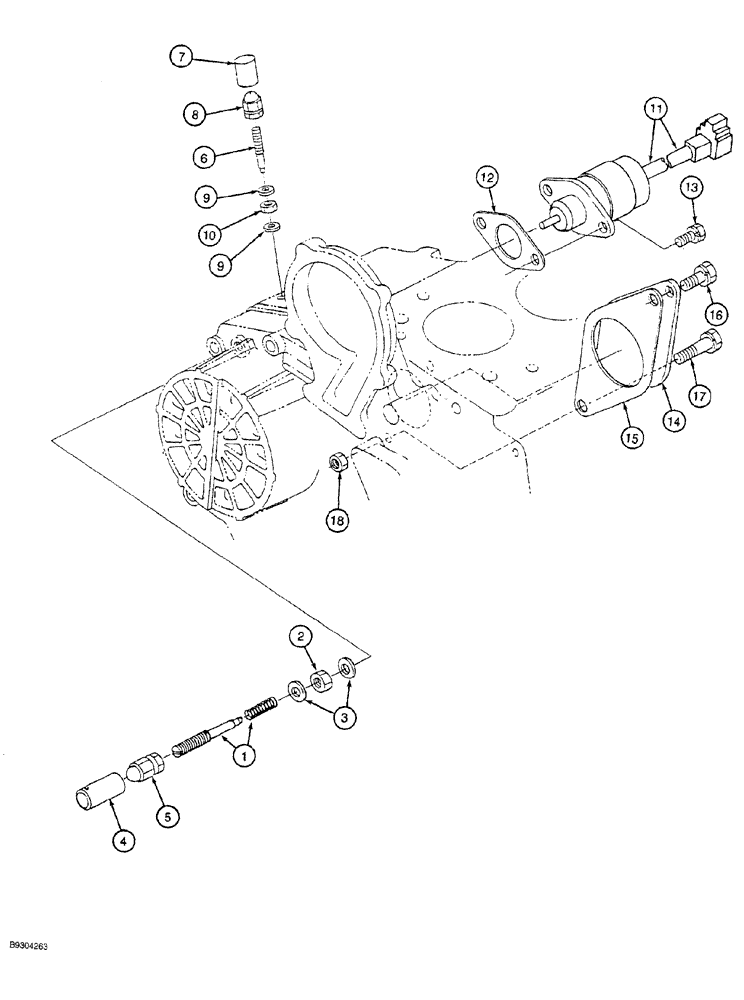

Схема запчастей Case MAXI-SNEAKER - (03-018) - IDLING APPARATUS, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (03) - FUEL SYSTEM
6
5
12
15
18
9
8
10
13
1
7
17
14
11
3
9
16
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

125524A1

KIT

IDLER ASSEMBLY engine speed, Includes: Ref. 1 - 5

1шт.

1

125525A1

ADJUSTMENT SCREW

adjusting

1шт.

2

125527A1

SPECIAL NUT

hex, special

1шт.

3

1959403C1

GASKET

special, 6 x 10 x 1 mm

2шт.

4

200544A1

PLUG

CAP adjusting nut

1шт.

5

125528A1

NUT

cap

1шт.

6

125529A1

BOLT

adjusting

1шт.

7

1959405C1

BUSHING

adjusting bolt

1шт.

8

125528A1

NUT

cap

1шт.

9

1959403C1

GASKET

special, 6 x 10 x 1 mm

2шт.

10

125527A1

SPECIAL NUT

hex, special

1шт.

11

125531A1

SOLENOID VALVE

engine

1шт.

An Adaptor Harness is Needed to Adapt from the Three Wire Harness to the 125531A1 Two Pin Solenoid. Procure from Locally from EPI (Engine Power Inc.)

1шт.

12

200078A1

GASKET

solenoid

1шт.

13

126132A1

CAPTIVE WASHER SCREW,Hex

hex, with lock washer, solenoid

2шт.

14

125533A1

COVER

hydraulic pump

1шт.

15

125534A1

GASKET

cover

1шт.

16

126136A1

CAPTIVE WASHER SCREW

hex, with lock washer

1шт.

17

126138A1

CAPTIVE WASHER SCREW,Hex

hex, special

1шт.

18

43362

NUT,M8 x 1.25, Cl 10

1шт.
