(03-016) - SPEED CONTROL PLATE ASSEMBLY, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE

Запчасти Case MAXI-SNEAKER (03-016) - SPEED CONTROL PLATE ASSEMBLY, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (03) - FUEL SYSTEM

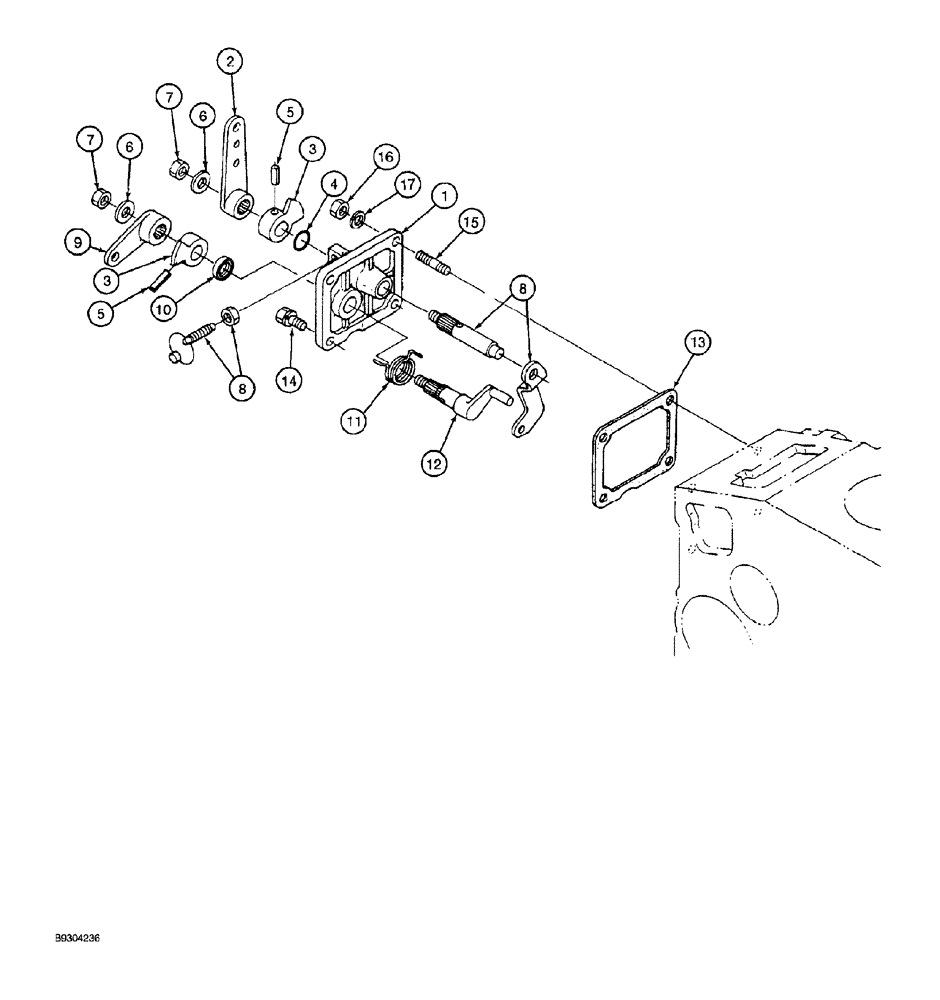

Схема запчастей Case MAXI-SNEAKER - (03-016) - SPEED CONTROL PLATE ASSEMBLY, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (03) - FUEL SYSTEM
14
4
1
13
3
15
8
6
9
3
5
12
6
17
16
11
7
7
2
8
5
10
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

221648A1

KIT

ASSEMBLY engine speed control, Includes: Ref. 1 - 12

1шт.

1

NSS

NOT SOLD SEPARAT

PLATE control

1шт.

2

125536A1

LEVER

control, engine speed

1шт.

3

125537A1

LEVER

control, engine speed

2шт.

4

1285697C1

O-RING

lever

1шт.

5

1959337C1

PIN

roll

2шт.

6

125538A1

WASHER

flat, special

2шт.

7

125539A1

SPECIAL NUT

hex, special

2шт.

8

125542A1

LEVER

LEVER governor

1шт.

9

125546A1

LEVER

engine stop

1шт.

10

125547A1

OIL SEAL

SEAL oil

1шт.

11

125548A1

SPRING

return

1шт.

12

125549A1

SHAFT

stop lever

1шт.

13

200069A1

GASKET

plate, lever control

1шт.

14

1959319C1

BOLT

hex, special, cover plate

2шт.

15

1959319C1

BOLT

hex, special, plate

2шт.

16

1959205C1

NUT

hex, special

2шт.

17

221638A1

SPRING WASHER

spring

2шт.
