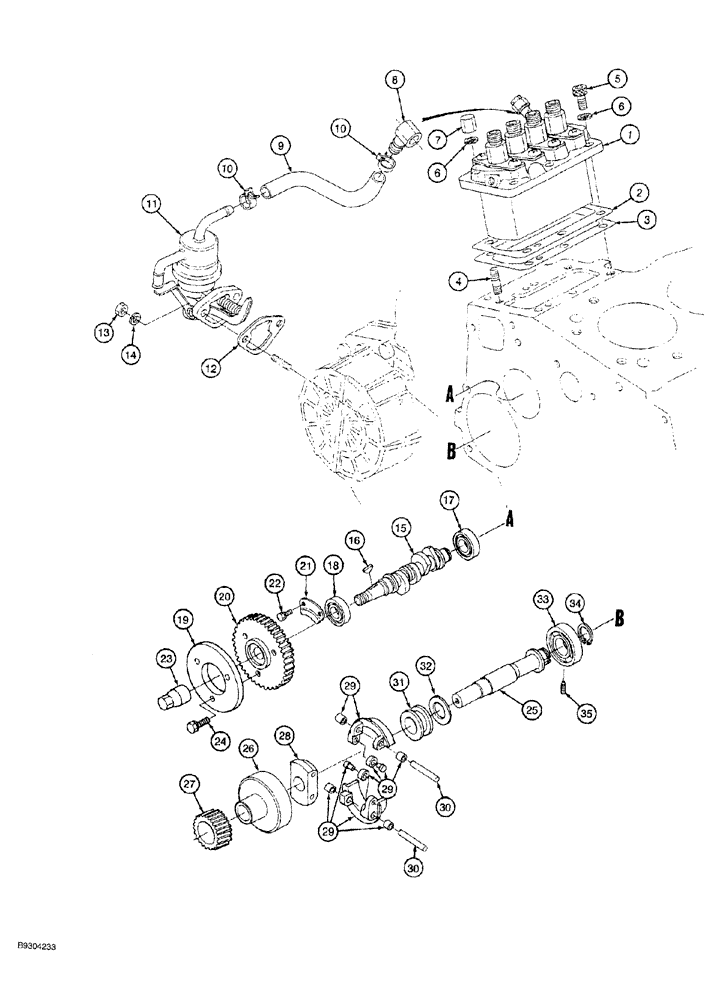

Запчасти Case MAXI-SNEAKER (03-008) - FUEL INJECTION PUMP DRIVE, KUBOTA V1505 ENGINE, KUBOTA V1505-B ENGINE (03) - FUEL SYSTEM

1

125479A1

PUMP

ASSEMBLY fuel injection, parts list Figure 03-020

1шт.

2

125484A1

BLOCK

SHIM injection pump

1шт.

Prior to engine S.N. 489916

1шт.

2

125484A2

SHIM

SHIM injection pump

1шт.

Engine S.N. 489916 and after

1шт.

3

125485A1

SHIM

injection pump

1шт.

Prior to engine S.N. 489916

1шт.

3

125485A2

NUT

SHIM injection pump

1шт.

Engine S.N. 489916 and after

1шт.

3a

197425A1

SHIM

SHIM injection pump, not shown

1шт.

Engine S.N. 489916 and after

1шт.

4

125496A1

STUD

pump mounting

3шт.

5

126134A1

BOLT

hex socket, special

3шт.

6

221638A1

SPRING WASHER

spring

6шт.

7

125497A1

NUT

hex, injection pump mounting stud

3шт.

8

125477A1

HYD CONNECTOR

CONNECTOR banjo

1шт.

9

125500A1

HOSE ASSY.

transfer pump to injection pump, Includes: Ref. 10

1шт.

10

125501A1

HOSE CLAMP

tube

2шт.

11

125498A1

FUEL PUMP

transfer, fuel

1шт.

12

125499A1

GASKET

pump, fuel

1шт.

13

1959205C1

NUT

hex, special

2шт.

14

1959206C1

SPRING WASHER

lock

2шт.

15

125502A1

CAMSHAFT

drive, fuel pump

1шт.

Prior to engine S.N. 489916

1шт.

15

197422A1

CAMSHAFT

drive, fuel pump

1шт.

Engine S.N. 489916 and after

1шт.

16

125507A1

KEY

camshaft

1шт.

17

125503A1

BALL BEARING

ball

1шт.

18

125504A1

BALL BEARING

ball

1шт.

19

125505A1

PLATE

drive, fuel injection pump

1шт.

20

125508A1

GEAR

injection pump

1шт.

21

125509A1

STOP

camshaft

1шт.

22

1959477C1

BOLT

hex, with lock washer

2шт.

23

125506A1

NUT

cap

1шт.

24

1959155C1

BOLT

hex, captive washer, special

3шт.

125510A1

KIT

ASSEMBLY governor, Includes: Ref. 25 - 32

1шт.

25

NSS

NOT SOLD SEPARAT

SHAFT governor

1шт.

26

125511A1

SUPPORT

HOLDER governor gear

1шт.

27

125512A1

GEAR

governor

1шт.

28

125513A1

HOLLOW SCREW

HOLDER governor weight

1шт.

29

125514A1

BRACKET

WEIGHT governor

2шт.

30

125515A1

SPINDLE

governor weight

2шт.

31

125516A1

SLEEVE

SLEEVE governor

1шт.

32

125517A1

THRUST WASHER

thrust

1шт.

33

125518A1

BALL BEARING

ball

1шт.

34

125519A1

CIRCLIP

governor shaft

1шт.

35

125520A1

SCREEN

set

1шт.
